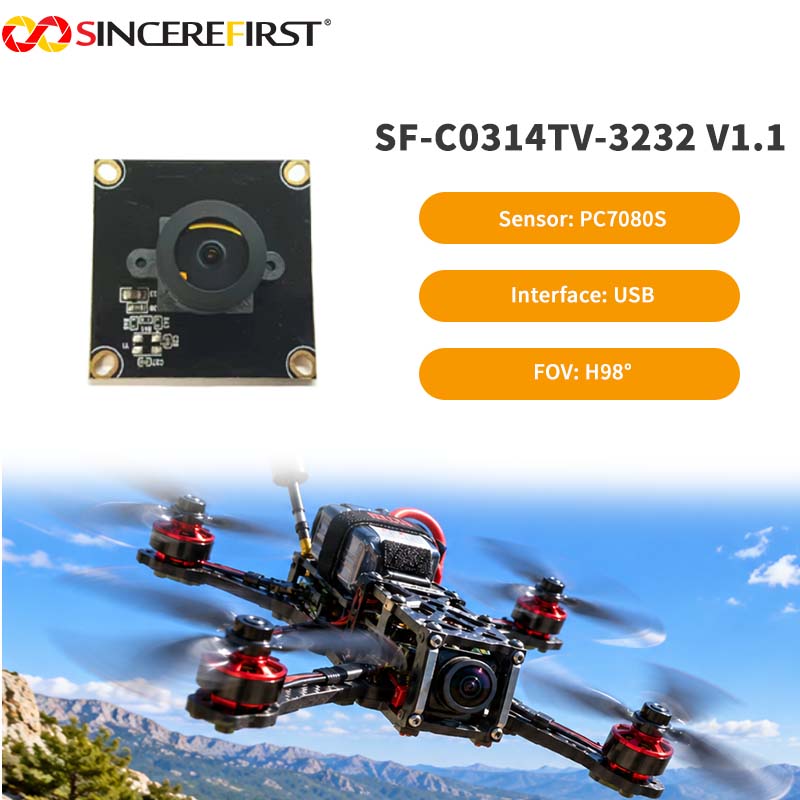

PAL Analog Camera Module for Fixed-Mount Video Devices

Name: PAL Analog Camera Module for Fixed-Mount Video Devices
SKU: 15914
Price: 1.00 USD
Availability: InStock

$1.00

PAL analog camera module with 1/4-inch sensor, PC7080S DSP, 2.0mm F2.4 lens, 98° horizontal FOV, 30cm–Infinity focusing range, 32 × 32mm module size and DC12V/VIDEO/GND interface.

—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.

... people are viewing this right now

Description Send Inquiry

Introduction

Not every camera project requires USB or MIPI digital output. Some existing devices are built around a PAL analog video architecture and need a camera that can integrate directly without redesigning the complete host system.

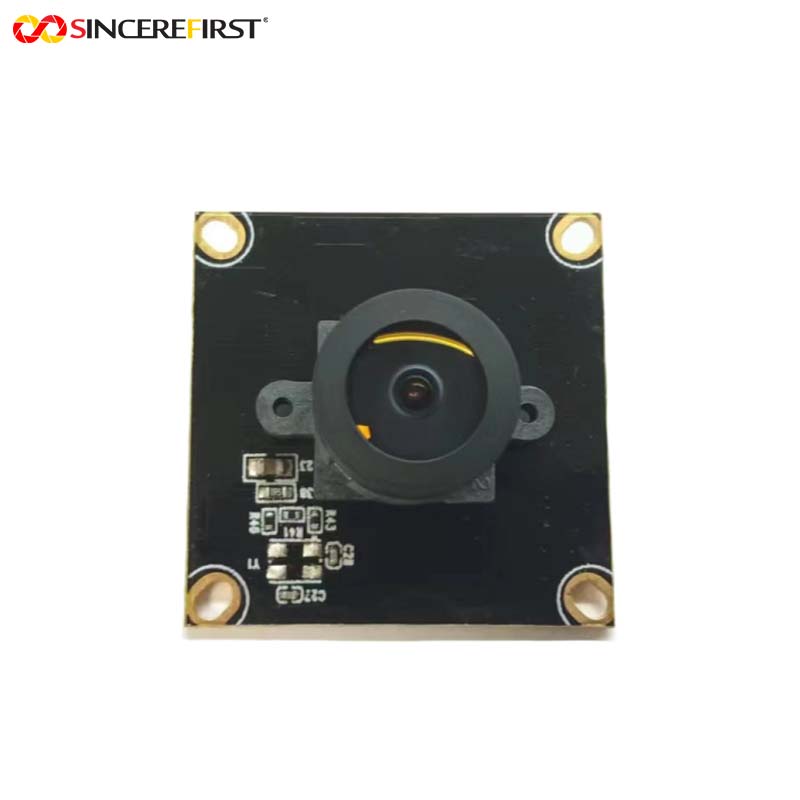

This camera module combines a 32×32mm PCB, 12V power input and PAL analog video output, providing a straightforward imaging direction for devices that already use analog video input.

A 2.0mm Fixed Focus lens provides an H98° horizontal field of view, while the 30cm-to-infinity focus range supports applications where the camera observes a relatively stable scene rather than close-range variable-distance targets.

Applications in Real Devices

Analog Video Monitoring Devices

Equipment designed around PAL video input can use the module without changing to a USB or MIPI camera architecture.

The H98° viewing angle provides relatively broad horizontal scene coverage from a fixed camera position.

Existing Equipment Retrofit

Some older products need a replacement or updated camera while retaining the original analog video electronics.

A PAL-output camera can reduce the amount of host-side redesign required compared with moving directly to a digital interface.

Fixed-Position Viewing Equipment

Devices with a stable camera position and targets located beyond close range can benefit from the 30cm-to-infinity Fixed Focus configuration.

This avoids adding Autofocus hardware where the working distance does not require it.

Embedded Analog Display Systems

Products that send the camera image directly to an analog monitor, DVR or PAL-compatible video system can use this type of camera architecture as a simple image source.

Project Evaluation Guide

Consider This Model When

The host system requires PAL analog video.
A 32×32mm camera PCB fits the available mounting space.
DC12V power is available.
A wide horizontal view is preferred.
The target is normally 30cm or farther from the camera.
Fixed Focus is suitable for the application.
A simple 3Pin camera connection is preferred.

Confirm Before Sampling

Whether the host requires PAL rather than NTSC or digital video.
Available PCB mounting space.
Mounting-hole position.
Required horizontal scene coverage.
Actual working distance.
Power-supply stability.
Connector pin definition and cable direction.
Whether the host expects the same analog signal level and video format.

Choosing This Model Within the Analog Camera Module Series

This model represents the 32×32mm PAL analog wide-view direction.

Choose it when the system already uses PAL video and the priority is straightforward hardware integration rather than high-resolution digital image processing.

Compared with USB or MIPI camera modules, its main value is compatibility with an analog host architecture, not higher data bandwidth or software-controlled imaging functions.

Related Models

Adjacent PAL / analog models should be added here after their model numbers and differences are confirmed. No unverified model numbers are inserted into this section.

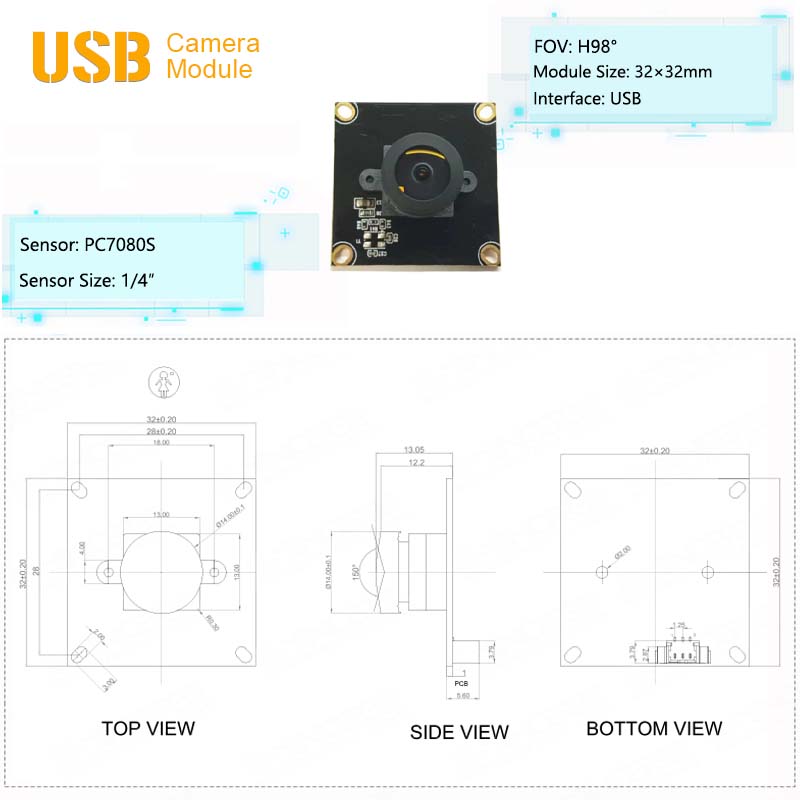

Key Specifications

Specification	Details
Product Name	PAL Analog Camera Module
Model	SF-C0314TV-3232 V1.1
Sensor	PC7080S CMOS
Sensor Size	1/4 inch
Focus Type	Fixed Focus
EFL	2.0mm
Horizontal FOV	H98°
Aperture	F2.4
Focus Range	30cm–Infinity
Lens Outer Diameter	14mm
PCB Size	32 × 32mm
Mounting Hole Pitch	28 × 28mm
Connector	3Pin
Connector Pitch	1.25mm
Power Supply	DC12V
Video Output	PAL Analog Video

SincereFirst Customization

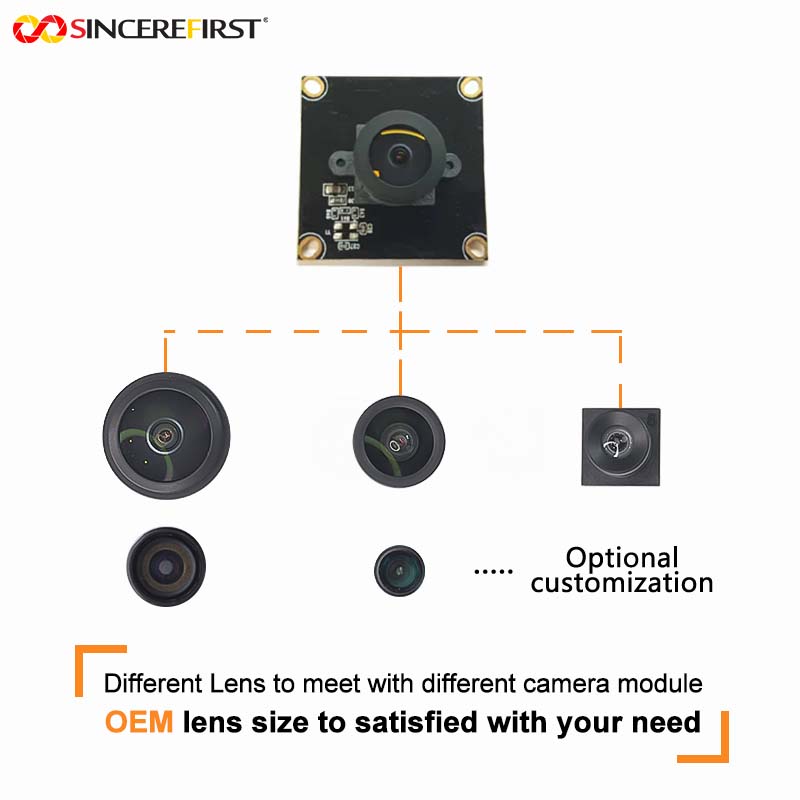

Lens and Viewing Angle

Lens focal length and viewing angle can be evaluated according to the required scene coverage, installation distance and target size.

Focus Distance

The Fixed Focus setting can be reviewed when the actual working distance differs from the standard 30cm-to-infinity configuration.

PCB and Mounting Structure

PCB dimensions, mounting-hole layout and mechanical relationship with the lens can be evaluated according to the available enclosure space.

Connector and Analog Integration

Connector configuration, cable direction, power requirements and analog video integration can be reviewed according to the existing host board and PAL video system.

Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.

FAQ

When should I choose a PAL analog camera instead of USB or MIPI?

Choose PAL when the existing host or display system already accepts analog video and there is no need for a digital camera interface.

Moving to USB or MIPI may require additional host hardware, drivers or software changes.

Is this module suitable for close-range inspection?

Its standard focus range starts at approximately 30cm, so it is better suited to medium- or longer-distance viewing.

For shorter working distances, the focus configuration should be evaluated separately.

What does H98° mean for the actual image?

It means the camera captures a relatively broad horizontal area.

Whether this is wide enough depends on the working distance and the physical width of the scene that must be visible.

Can it directly replace another 32×32mm analog camera?

Not automatically.

PCB size alone does not confirm compatibility. Mounting holes, connector pinout, power supply, PAL signal requirements and lens position should all be checked.

Why would a project keep analog video instead of upgrading to a digital camera?

For an existing product, retaining analog video can reduce changes to the host electronics and software when the current image quality and system architecture already meet the application requirement.

What information should be provided before sampling?

Provide the PAL input requirement, available PCB space, mounting-hole position, working distance, required FOV, power supply and connector definition.

Request Project Evaluation

If your device already uses a PAL analog video architecture, share the available PCB space, working distance, required scene coverage, connector definition and power conditions.

SincereFirst can evaluate whether this 32×32mm analog camera configuration matches the existing device before sampling.
