2MP USB3.0 Type-C External Trigger Global Shutter Mono Sensor Camera Module for Synchronized Imaging Systems

Name: 2MP USB3.0 Type-C External Trigger Global Shutter Mono Sensor Camera Module for Synchronized Imaging Systems
SKU: 14873
Price: 1.00 CNY
Availability: InStock

¥1.00

2MP USB3.0 Type-C global shutter camera module with external trigger support, color and mono sensor options and optional LED housing for synchronized imaging applications.

—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.

... people are viewing this right now

Description Send Inquiry

Introduction

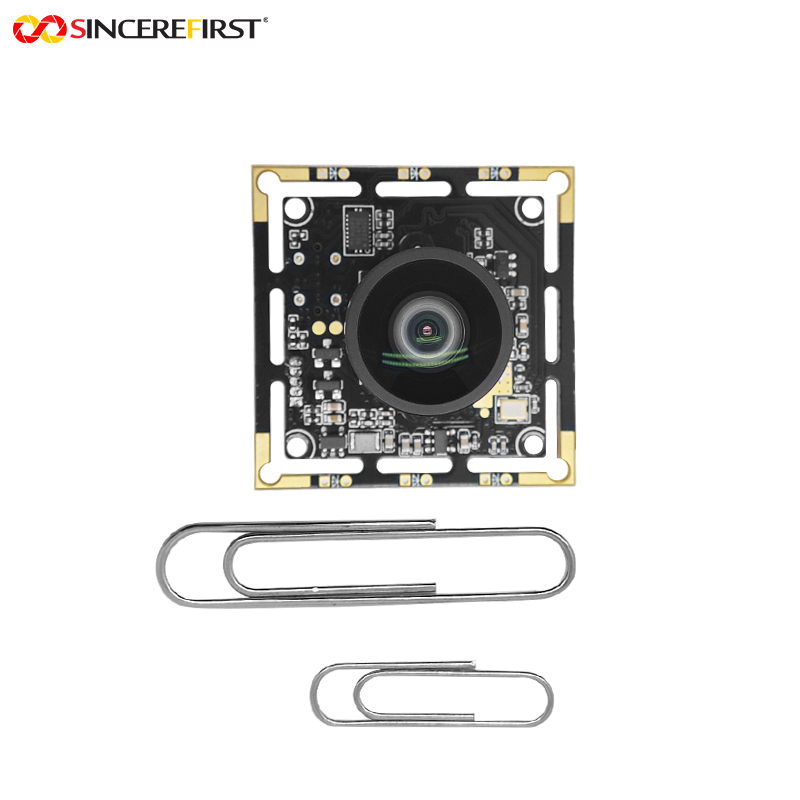

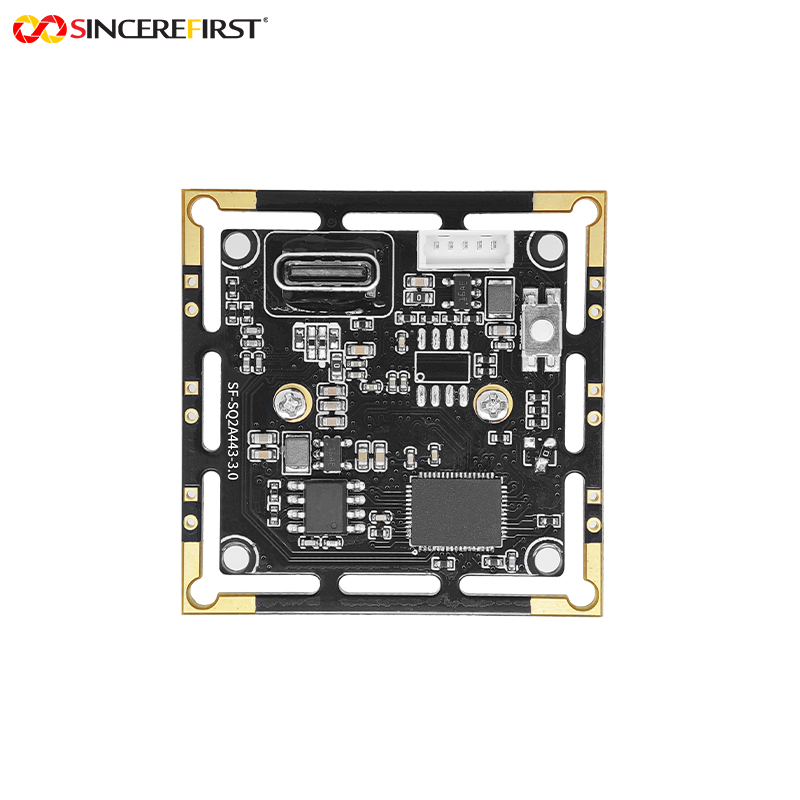

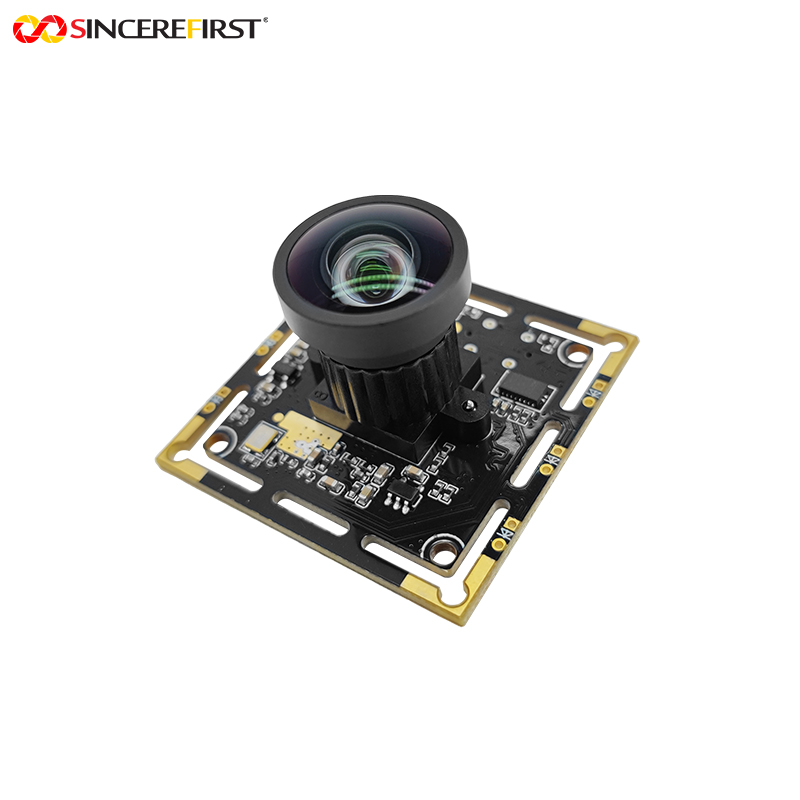

SF-SQ2A443-3.0 is a 2MP USB3.0 Type-C Global Shutter Camera Module designed for imaging systems requiring accurate capture timing and flexible embedded integration.The module supports Global Shutter and External Trigger functions, allowing image acquisition to be synchronized with external equipment signals. With optional color and monochrome sensor configurations, it provides flexibility for different imaging requirements. An optional housing design with integrated LED lighting is available for projects requiring additional illumination or customized device integration.

Applications in Real Devices

Automated Inspection Equipment

For inspection systems where image capture needs to match machine operation or inspection timing, External Trigger helps synchronize image acquisition with the equipment workflow.Global Shutter supports more stable image capture when components or platforms are moving.

Motion Imaging Systems

For applications involving moving objects, Global Shutter helps reduce motion distortion and preserve image information during capture.

Compact Embedded Vision Devices

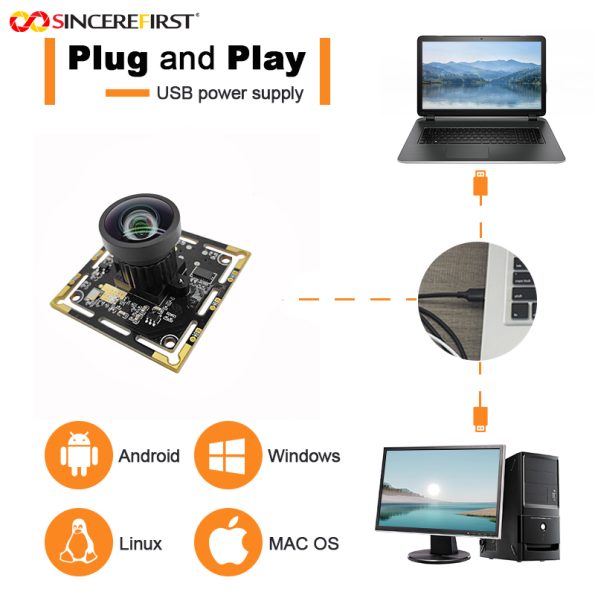

The USB3.0 Type-C interface and compact module structure support integration into devices where installation space and connection convenience are important considerations.

Project Evaluation Guide

Consider This Model When

USB3.0 Type-C integration is preferred.
External Trigger synchronization is required.
Moving targets require Global Shutter imaging.
Color or monochrome imaging options need to be evaluated.
Compact structure or LED-integrated housing is required.

Confirm Before Sampling

Color or monochrome sensor requirement.
Trigger signal type and synchronization method.
USB3.0 host compatibility.
Lens and field of view requirement.
Housing and LED integration requirements.

Choosing This Model Within the 4K USB Camera Module Series

SF-SQ2A443-3.0 is positioned as the compact USB3.0 Type-C integration option within the External Trigger Global Shutter Camera Module Series.Choose this model when the project requires a combination of Global Shutter, External Trigger, USB3.0 Type-C connection and optional compact housing integration.Compared with SF2A543-3.0, this model focuses more on compact Type-C integration and optional LED housing evaluation.

Related Models

AR0234 Global Shutter – SF2A543-3.0: Consider this model when USB3.0 transmission and optional 10× optical zoom configuration are more important for the project.

OG02B10 Global Shutter – SF-SJF20-QJBG: Consider this model when a compact USB2.0 Global Shutter module is preferred.

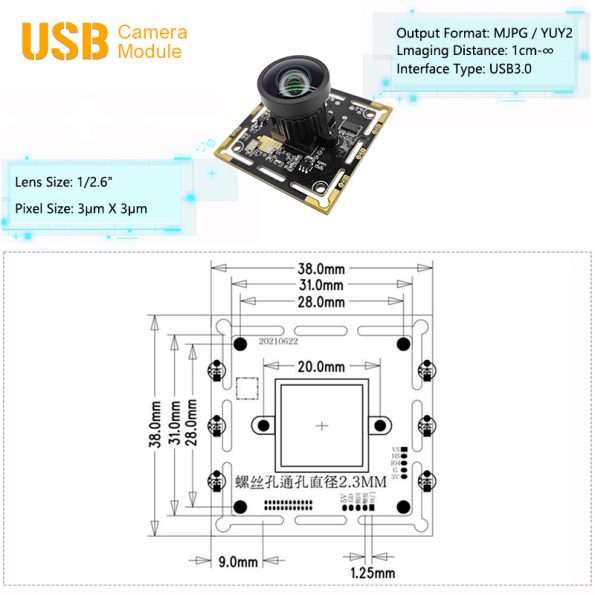

Key Specifications

Specification	Details
Model	SF-SQ2A443-3.0
Sensor	Color/Mono CMOS Sensor
Resolution	2MP / 1920×1080
Frame Rate	60fps
Pixel Size	3.0μm × 3.0μm
Sensor Type	Global Shutter
Trigger Function	External Trigger Supported
Output Format	MJPG / YUY2
Interface	USB3.0 Type-C
Optional Function	LED Integrated Housing

SincereFirst Customization

Sensor and Imaging Configuration

Color and monochrome sensor options can be evaluated according to image processing requirements and application conditions.

Lens and Optical Configuration

Lens parameters, field of view and optical structure can be evaluated according to target distance, viewing range and installation space.

External Trigger Configuration

Trigger timing and signal requirements can be evaluated according to the synchronization method of the target equipment.

Housing and Interface Integration

USB3.0 Type-C integration, module structure and optional LED housing can be evaluated according to the final device design.

Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.

FAQ

When should I choose SF-SQ2A443-3.0 instead of a standard USB camera?

Choose this model when the system requires synchronized image capture through External Trigger and needs Global Shutter performance for moving targets.

What is the advantage of USB3.0 Type-C for this camera module?

USB3.0 Type-C provides a compact connection option while maintaining USB-based integration flexibility.

Why choose a monochrome sensor version?

Monochrome sensors may be considered when the application prioritizes specific imaging characteristics such as contrast or image processing requirements.

Can the LED-integrated housing be customized?

The LED-integrated housing option can be evaluated according to the required illumination method and device structure.

Is this module suitable for multi-camera synchronization?

External Trigger capability supports synchronized capture requirements, while the complete multi-camera system design depends on the host controller and synchronization architecture.

What information should be provided before selecting this model?

Provide the application scenario, sensor requirement, trigger method, interface condition, lens requirement and mechanical limitations.

Evaluate This Module for Your Device

Share your project requirements including sensor type, trigger method, USB3.0 host environment, lens requirement and housing conditions. SincereFirst can evaluate the suitable configuration before sampling.
