5MP FPGA External Trigger Global Shutter Camera Module for Customized Imaging Systems

Name: 5MP FPGA External Trigger Global Shutter Camera Module for Customized Imaging Systems
SKU: 14874
Price: 1.00 USD
Availability: InStock

$1.00

5MP FPGA global shutter camera module with external trigger support, customized lens options and USB2.0 interface for synchronized imaging and embedded vision applications.

—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.

... people are viewing this right now

Description Send Inquiry

Introduction

SF5A162-FPGA is a 5MP External Trigger Global Shutter Camera Module designed for imaging systems requiring controlled capture timing and additional FPGA-based customization capability.The module combines Global Shutter imaging, External Trigger support and FPGA integration, providing a flexible direction for projects that need customized image processing or system-level adaptation.With 2592×1944 resolution, 45fps output capability and USB2.0 interface, this module is suitable for applications where image acquisition timing, processing flexibility and optical customization need to be considered together.

Applications in Real Devices

Machine Vision Inspection Systems

For inspection equipment requiring image capture synchronized with machine operation, External Trigger helps align image acquisition with inspection timing.Global Shutter supports more stable image capture when inspected objects are moving during the process.

Customized Imaging Equipment

For projects requiring additional processing logic or customized camera behavior, FPGA capability provides an evaluation direction beyond standard camera module integration.

Embedded Vision Devices

The USB2.0 interface and customizable lens options allow integration into devices where camera structure and optical parameters need to match specific installation requirements.

Project Evaluation Guide

Consider This Model When

The project requires External Trigger image capture.
Global Shutter performance is needed for moving targets.
FPGA-related customization requirements exist.
Lens parameters need project-level adjustment.
5MP resolution is suitable for the visual task.

Confirm Before Sampling

FPGA function requirements and processing expectations.
Trigger signal method and synchronization timing.
Required lens parameters and working distance.
USB2.0 host compatibility.
Mechanical structure and installation space.

Choosing This Model Within the External Trigger Global Shutter Camera Module Series

SF5A162-FPGA is positioned as the FPGA-based customization option within the External Trigger Global Shutter Camera Module Series.Choose this model when the project needs more than standard image output and requires evaluation of FPGA-related functions together with Global Shutter and External Trigger capability.Compared with USB-based Global Shutter models focused mainly on direct camera integration, this module provides a more flexible direction for projects with customized processing requirements.

Related Models

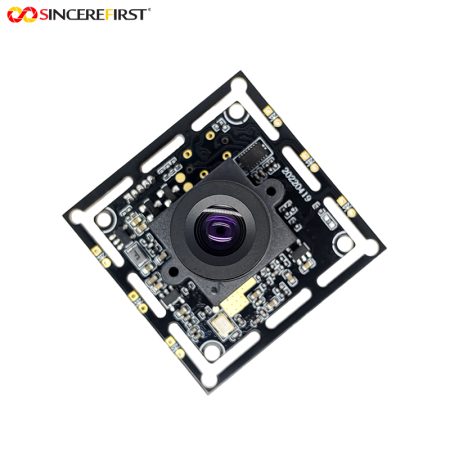

AR0234 Global Shutter – SF2A543-3.0: Consider this model when the project requires USB3.0 transmission and a simpler Global Shutter + External Trigger camera integration.

OG02B10 Global Shutter – SF-SJF20-QJBG: Consider this model when a more compact 2MP USB Global Shutter module is preferred.

Key Specifications

Specification	Details
Model	SF5A162-FPGA
Sensor	CMOS Sensor
Resolution	5MP / 2592×1944
Frame Rate	45fps
Pixel Size	2.2μm × 2.2μm
Sensor Type	Global Shutter
Trigger Function	External Trigger Supported
FPGA	Supported
Output Format	MJPG / YUY2
Interface	USB2.0
Lens	Customizable

SincereFirst Customization

Lens and Optical Configuration

The lens configuration can be customized according to target distance, field of view and installation requirements.

Optical parameters should be evaluated together with the final application condition before confirming the module configuration.

FPGA Function Evaluation

FPGA-related requirements can be evaluated according to the intended image-processing function, system architecture and integration requirements.

External Trigger Configuration

Trigger timing and signal requirements can be reviewed according to the synchronization method of the target equipment.

Mechanical and Interface Integration

USB2.0 integration, module structure and installation requirements can be evaluated according to the final device design.

Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.

FAQ

When should I choose an FPGA camera module instead of a standard camera module?

Choose an FPGA-based module when the project requires additional processing flexibility or specific camera-side functions beyond standard image transmission.

Does FPGA replace the host-side image processor?

Not necessarily. The role of FPGA depends on the project architecture and required functions. The final processing distribution should be evaluated with the system design.

Why combine FPGA with Global Shutter and External Trigger?

This combination is suitable when the system requires controlled capture timing, stable motion imaging and additional customization possibilities.

Can the lens parameters be customized?

Yes. Lens parameters can be evaluated according to target distance, field of view and mechanical limitations.

What information is needed before evaluating FPGA customization?

Provide the required processing function, trigger requirement, host system, output requirement and mechanical conditions.

Is USB2.0 suitable for all 5MP applications?

The interface should be selected according to image data requirements, host capability and system architecture.

Evaluate This Module for Your Device

Share your project requirements including FPGA function requirements, trigger method, lens parameters, host interface and mechanical conditions. SincereFirst can evaluate the suitable camera module configuration before sampling.
