IMX708 12MP Raspberry Pi Camera Module with PCB Adapter for Prototype Integration
$1.00
IMX708 12MP Fixed-Focus Raspberry Pi camera module with D120° wide-angle coverage, RAW8/10/14 output and a standard PCB adapter.
—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.
Introduction

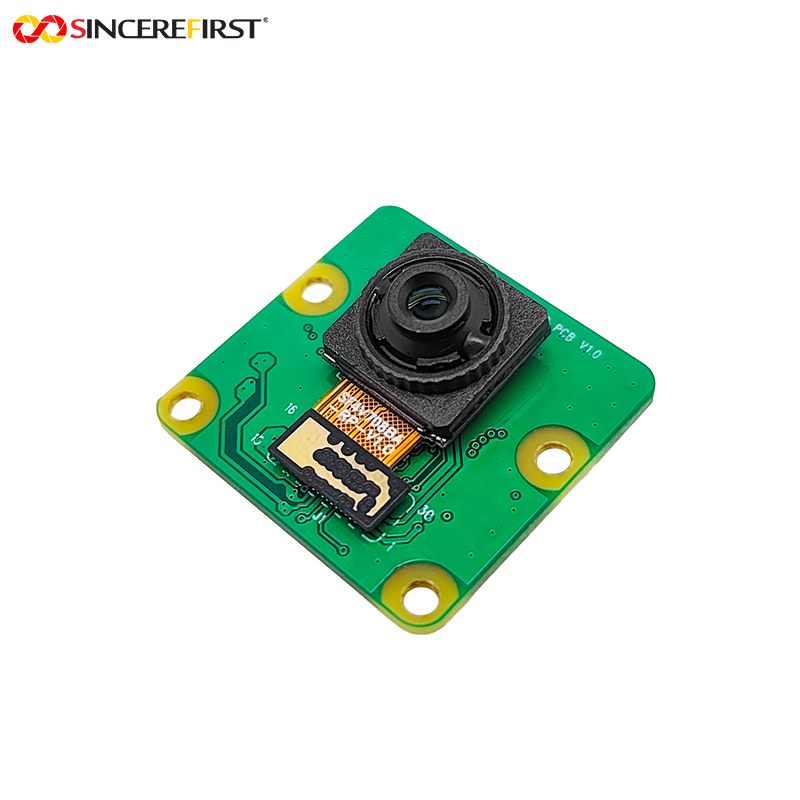

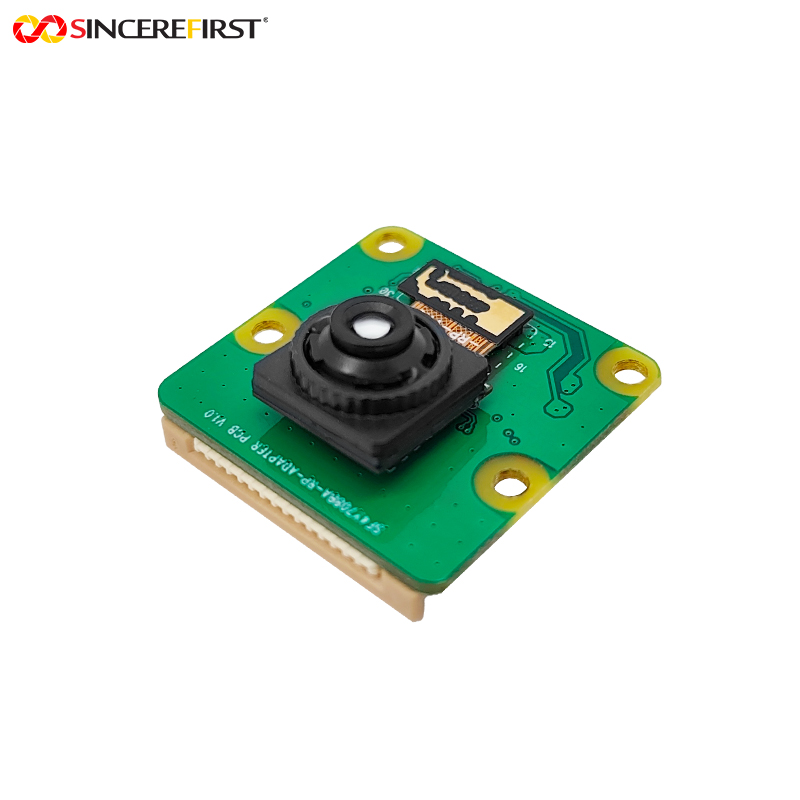

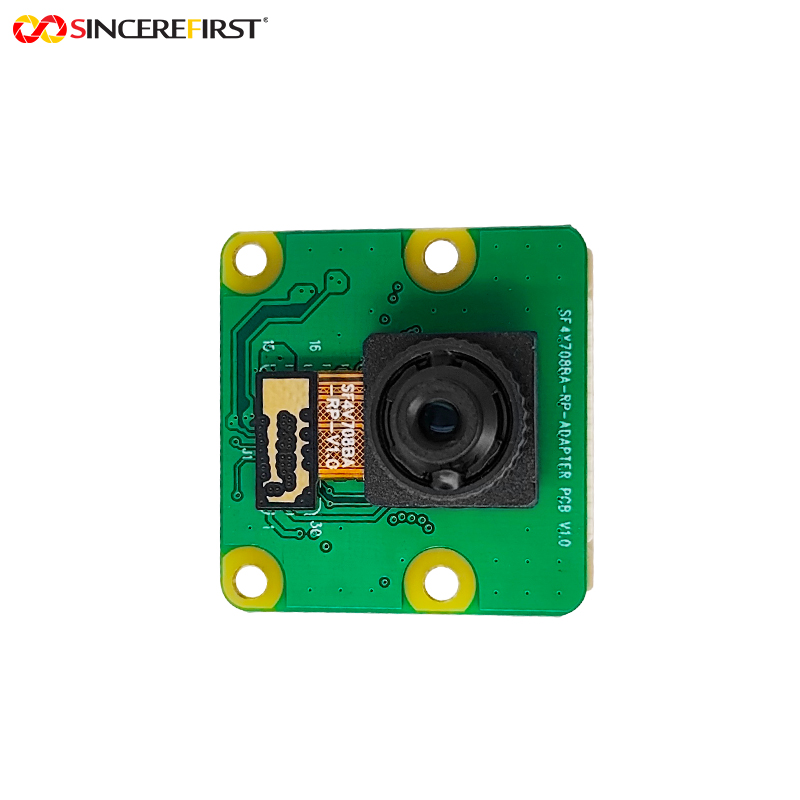

SF4V708BA-RP V1.0 FF + PCB is a 12MP Fixed-Focus camera configuration for Raspberry Pi projects that require a PCB adapter as part of the standard structure. It combines D120° wide-angle imaging and RAW8/RAW10/RAW14 output with an intermediate adapter board, providing a more convenient connection route for prototypes and devices that do not want to integrate the camera FPC directly into the first host-board design.
Applications in Real Devices
Raspberry Pi Prototype Development
Early hardware prototypes often change host boards, cable routes or camera positions several times before the final
structure is fixed. The standard PCB adapter provides an intermediate connection route that can make these changes easier to manage. Board position, connector direction, enclosure space and RAW mode should still be considered before moving toward production.
Embedded Vision Development Equipment
The adapter-board structure can support development systems that require accessible camera connections during repeated testing or platform changes.
Fixed Wide-Area Observation
The D120° Fixed-Focus optical route can also support devices that observe a broad scene from a predictable camera position.
Project Evaluation Guide
Consider This Model When
- A PCB adapter is required as standard.
- 12MP resolution and D120° coverage are needed.
- Fixed Focus matches the target distance.
- The device is still in prototype or adapter-board integration.
Confirm Before Sampling
- Space available for the PCB adapter.
- Connector and board orientation.
- Raspberry Pi host connection.
- Required RAW mode.
- Main working distance.
- Whether the final production device may move to a module-only structure.
Choosing This Model Within the Raspberry Pi FPC Camera Module Series
SF4V708BA-RP V1.0 FF + PCB is the adapter-board version of the 12MP Fixed-Focus wide-angle route. Its main difference is integration structure rather than imaging capability. Projects with an existing direct FPC architecture can compare SF4V708BA-RP V1.0 FF, while devices requiring focus adjustment across changing distances can evaluate SF4V708BA-RP V1.0.
Related Models
IMX708 – SF4V708BA-RP V1.0 FF: Module-only Fixed-Focus alternative for devices with an existing direct FPC connection.
IMX708 – SF4V708BA-RP V1.0: VCM Autofocus alternative with D120° coverage for applications with changing target distances.

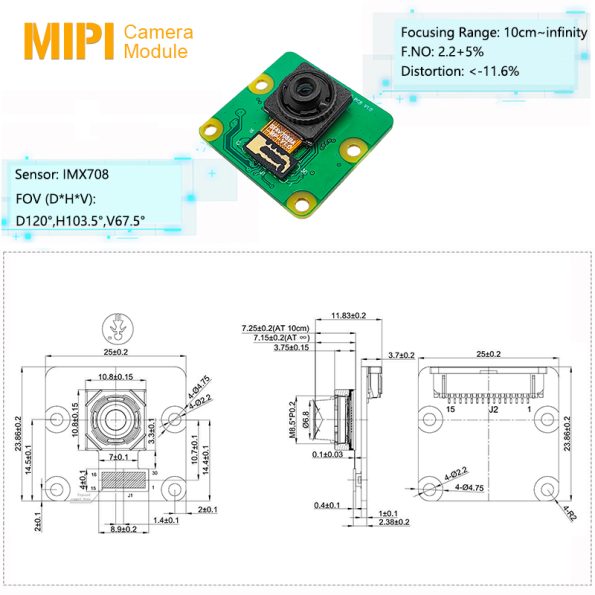

Key Specifications
Specification | Details |
Sensor | Sony IMX708 CMOS |
Resolution | 12MP / 4608 × 2592 |
Pixel Size | 1.4μm × 1.4μm |
Standard Structure | With PCB Board |
Output Format | RAW8 / RAW10 / RAW14 |
Interface | 15Pin MIPI |
Focus Type | Fixed Focus |
FOV | D120° × H103.5° × V67.5° |
EFL | 2.75mm |
Focus Range | 10cm–Infinity |
F.No | 2.2 |
TV Distortion | <−11.6% |
SincereFirst Customization
Lens and Wide-Angle FOV
The D120° optical route can be matched to the required scene and enclosure opening. Alternative lens parameters can be evaluated for different coverage requirements.
Fixed-Focus Configuration
Fixed Focus is standard. The focus position can be adjusted according to the main observation distance.

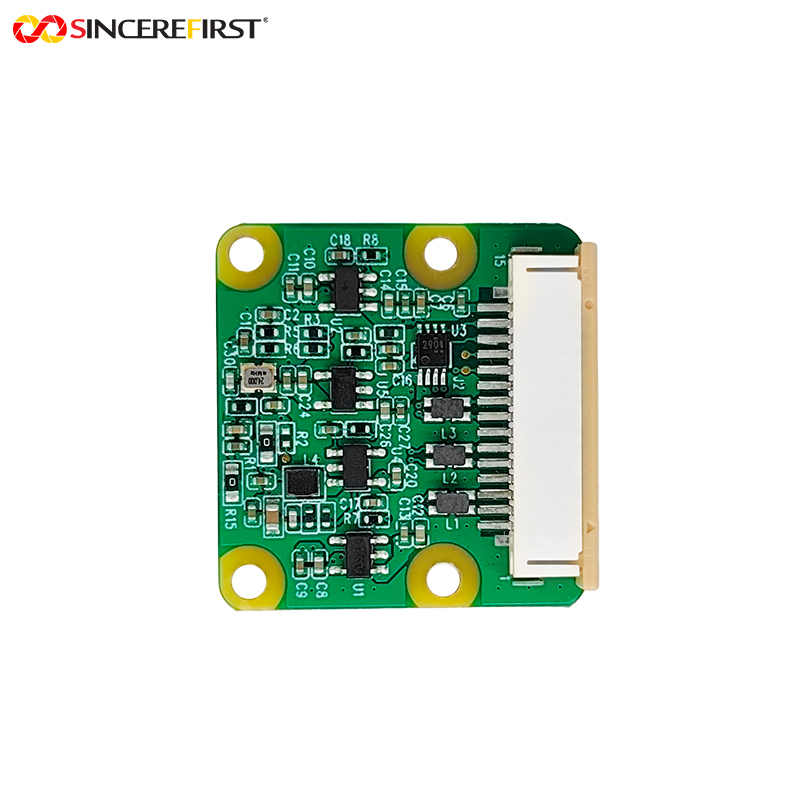

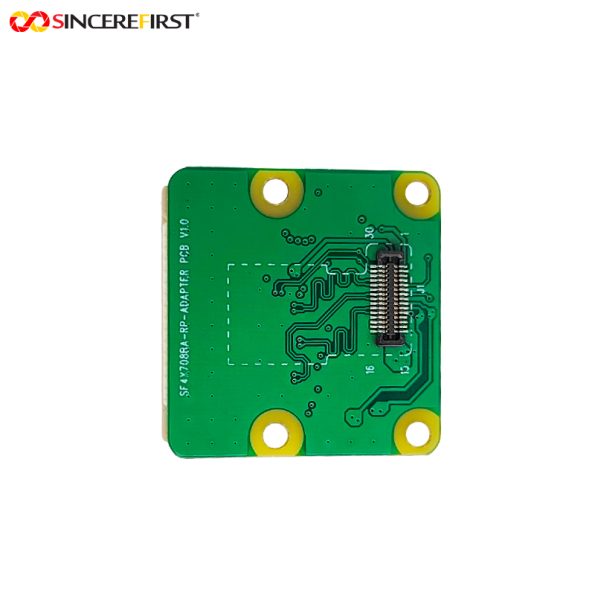

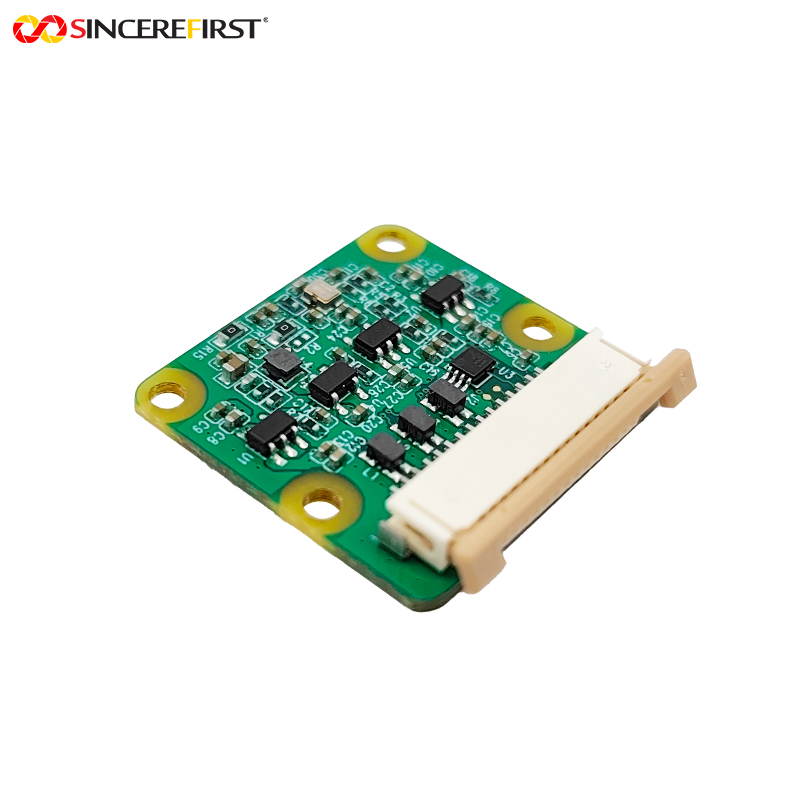

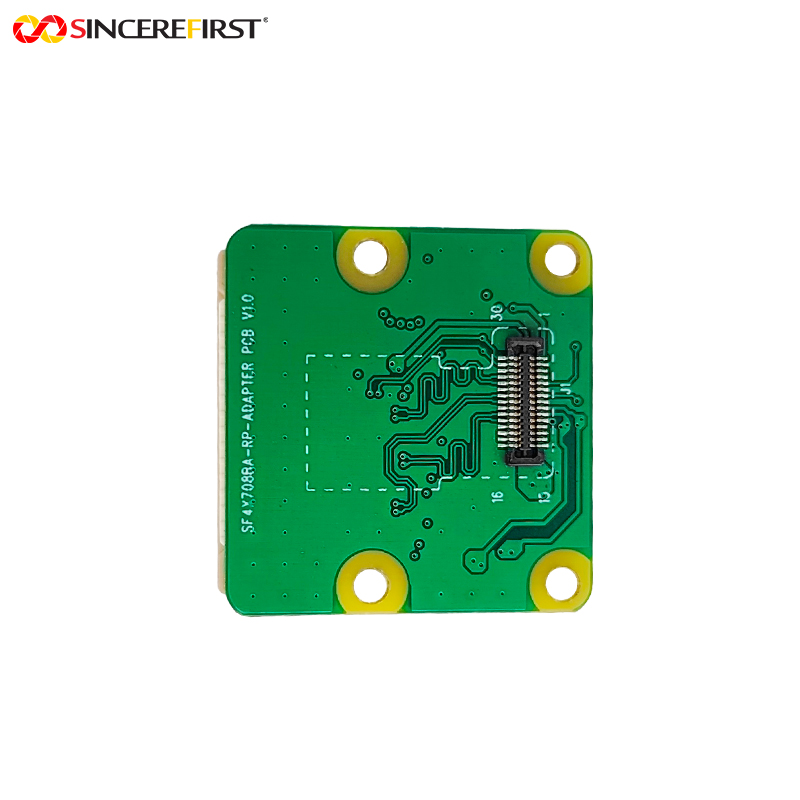

PCB Adapter and Connector
PCB layout, connector orientation, camera position and cable routing can be coordinated with the Raspberry Pi host and enclosure structure.
RAW and Module-Only Options
RAW8/RAW10/RAW14 modes can be reviewed with the host platform. A module-only version can also be evaluated when the PCB adapter is no longer required.
Final configuration should be validated with the actual host
platform, enclosure, optics, software, and lighting environment before sampling.
FAQ
When does the PCB adapter provide real value instead of just adding another board?
It is useful when the project needs an intermediate connection structure for prototyping, host-board transitions or easier internal routing. If the final host already provides the required camera connection directly, the module-only version may be more appropriate.
Should the prototype and production version always use the same adapter structure?
Not necessarily. A PCB adapter may simplify early development, while a later production design may move to direct FPC integration to reduce space or component count. This transition should be considered before the mechanical design is frozen.
What should be checked before fitting the adapter board into the enclosure?
Review board dimensions, connector access, cable bend direction, camera orientation and the space around the D120° lens. The optical opening and PCB placement should be evaluated together.
Does changing from the PCB version to the module-only version require re-evaluation?
Yes. Even when the imaging module remains the same, connector routing, cable orientation, mounting points and host-board layout may change and should be reviewed again.
Evaluate This Module for Your Device
Share your Raspberry Pi board, PCB adapter requirement, target FOV, working distance, RAW mode and enclosure space for project evaluation.
Send Inquiry
