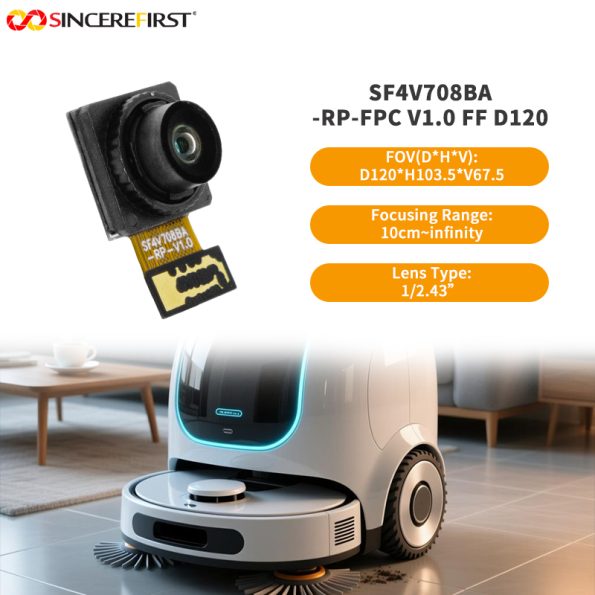

IMX708 Wide-Angle Fixed-Focus FPC Camera Module for Raspberry Pi Vision
$1.00
IMX708 12MP Fixed-Focus Raspberry Pi camera module with D120° wide-angle coverage, RAW8/10/14 output and an optional PCB adapter.
—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.
Introduction

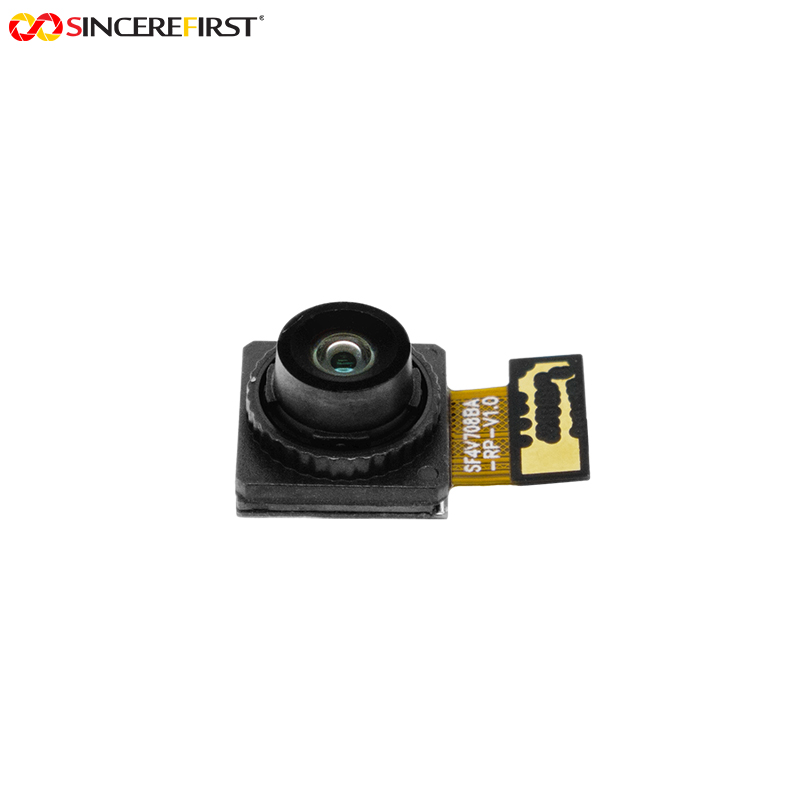

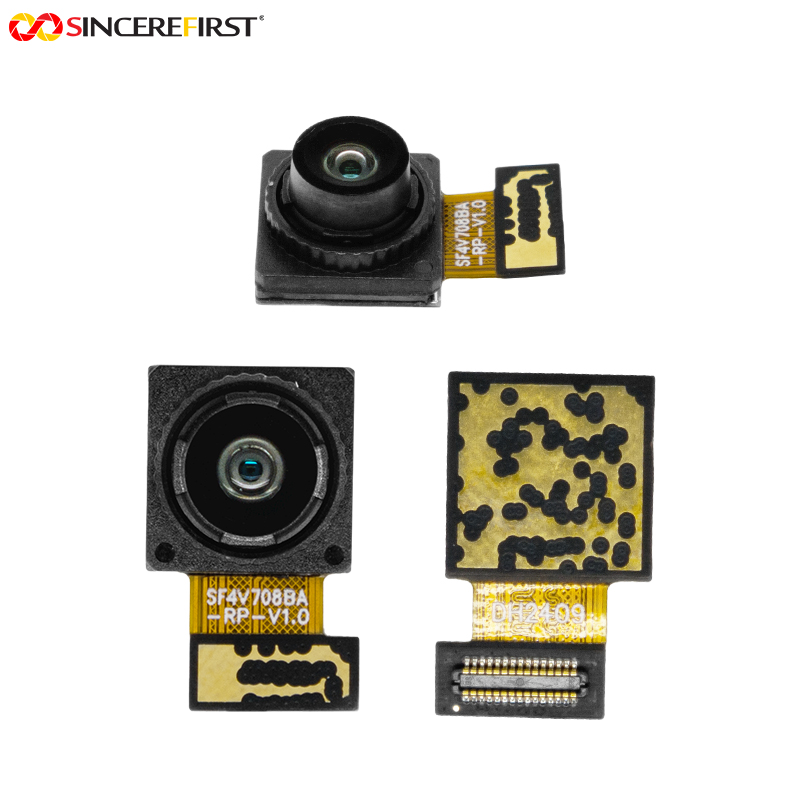

SF4V708BA-RP V1.0 FF is a 12MP MIPI FPC camera module for Raspberry Pi devices that need broad scene coverage without continuous focus adjustment. Its D120° wide-angle Fixed-Focus lens captures a large visible area from a compact camera position, while RAW8, RAW10 and RAW14 output provide different host-processing options. A PCB adapter can also be evaluated when the device requires an intermediate connection structure.
Applications in Real Devices
Fixed-Position Wide-Area Vision
Some embedded devices need to observe a broad workspace,
room area or robotic environment from one fixed camera position. The D120° lens expands scene coverage, while Fixed Focus removes the need for continuous focus control when the observation distance remains predictable. The enclosure opening should leave enough clearance for the wide optical path, and the actual focus position should be matched to the installation distance.
Raspberry Pi Monitoring Devices
The module can be considered for monitoring systems where broad coverage matters more than tracking one subject across changing distances.
Wide-Angle Development Platforms
The 12MP MIPI route can support development platforms evaluating wide-angle RAW imaging before moving into the final OEM structure.
Project Evaluation Guide
Consider This Model When
- 12MP resolution is required.
- D120° coverage matches the visual task.
- Fixed Focus is suitable for the working distance.
- Direct FPC integration is preferred.
Confirm Before Sampling
- Raspberry Pi board and connector.
- Required RAW bit depth.
- Main working distance.
- Enclosure opening.
- FPC direction and routing.
- Whether a PCB adapter is required.
Choosing This Model Within the Raspberry Pi FPC Camera Module Series
SF4V708BA-RP V1.0 FF is the 12MP wide-angle Fixed-Focus route without a PCB adapter as standard. It can be considered when the device already has its own camera connection structure and does not require Autofocus. Projects that prefer a standard PCB adapter can compare SF4V708BA-RP V1.0 FF + PCB, while variable-distance devices can evaluate SF4V708BA-RP V1.0.
Related Models
IMX708 – SF4V708BA-RP V1.0 FF + PCB: Same 12MP wide-angle Fixed-Focus route with a PCB adapter included as the standard structure.
IMX708 – SF4V708BA-RP V1.0: VCM Autofocus alternative
with the same D120° wide-angle direction for changing target distances.

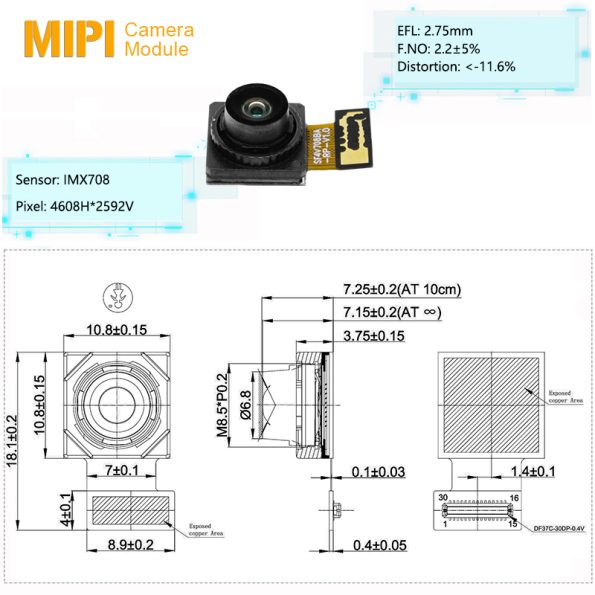

Key Specifications
Specification | Details |
Sensor | Sony IMX708 CMOS |
Resolution | 12MP / 4608 × 2592 |
Pixel Size | 1.4μm × 1.4μm |
Sensor Size | 1/2.43 inch |
Output Format | RAW8 / RAW10 / RAW14 |
Interface | 30Pin MIPI |
Focus Type | Fixed Focus |

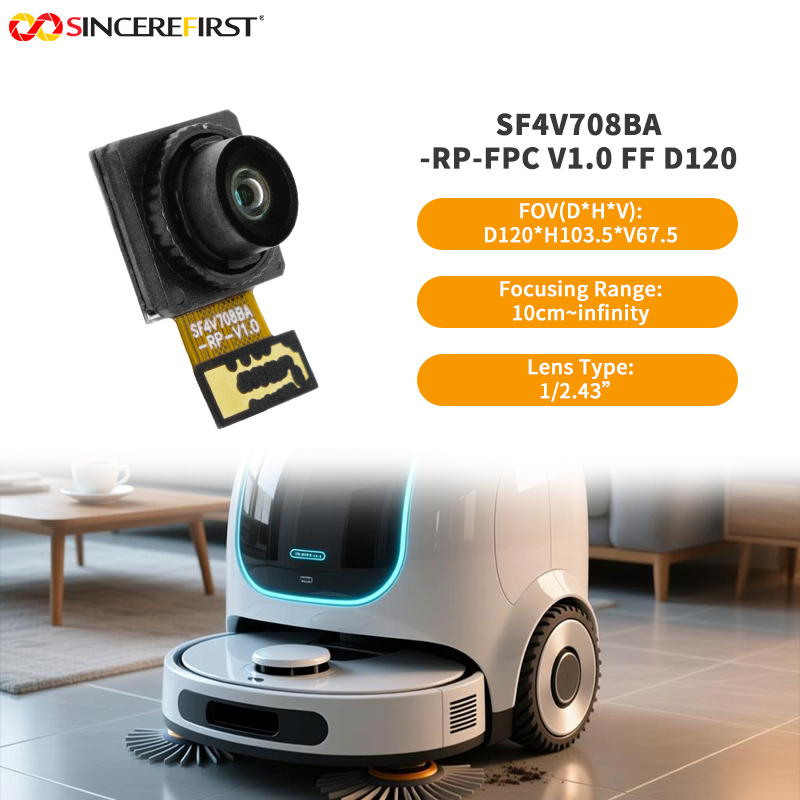

FOV | D120° × H103.5° × V67.5° |
EFL | 2.75mm |
Focus Range | 10cm–Infinity |
F.No | 2.2 |
TV Distortion | <−11.6% |
SincereFirst Customization
Lens and D120° FOV
The standard D120° lens can be matched to the required scene width and enclosure opening. Alternative optical directions can be evaluated for different coverage requirements.
Fixed-Focus Configuration
Fixed Focus is standard. The focus position can be adjusted according to the primary observation distance and required depth of field.
FPC and Connector
FPC routing, contact direction and connector integration can be reviewed according to the Raspberry Pi board and internal mechanical layout.
PCB Adapter and RAW Modes
A PCB adapter can be added when required. RAW8/RAW10/RAW14 operation can also be reviewed with the target host and processing environment.
Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.
FAQ
Is this an Autofocus model?
No. This specific model uses Fixed Focus.
Is the PCB adapter included as standard?
No. The PCB adapter is optional on this version.
What is the standard FOV?
The standard wide-angle lens provides D120° × H103.5° × V67.5° coverage.
Which model should I consider if the target distance changes?
Consider SF4V708BA-RP V1.0 when VCM Autofocus is required.
Evaluate This Module for Your Device
Share your Raspberry Pi board, working distance, required FOV, RAW mode, FPC route and PCB adapter requirement for project evaluation.
