48MP Wide-Angle MIPI Camera Module for Large Scene Capture

Name: 48MP Wide-Angle MIPI Camera Module for Large Scene Capture
SKU: 15519
Price: 1.00 USD
Availability: InStock

$1.00

48MP wide-angle MIPI camera module with IMX586 sensor, D120° lens, Fixed Focus design, HDR, PDAF and 30Pin BTB interface for embedded imaging applications.

—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.

... people are viewing this right now

Description Send Inquiry

Introduction

Many embedded devices need to capture a wider area from a limited camera installation position. A standard-angle camera may provide higher target detail but leave important areas outside the frame.

This camera module combines a 48MP sensor platform with a D120° wide-angle optical design, providing broader scene coverage while maintaining high-resolution image capture.

The Fixed Focus configuration is suitable for devices where the camera-to-target distance remains relatively stable, helping simplify the optical structure while keeping the imaging system focused on wide-area observation.

The module uses the Sony IMX586 sensor platform with 8000×6000 resolution, 4-in-1 pixel technology, HDR and PDAF support. The optical configuration uses a 6P lens with 3.574mm EFL, F2.8 aperture and D120° × H96° × V73.8° field of view.

Applications in Real Devices

Wide-Area Monitoring Equipment

For devices that need to observe a larger area from one camera position, a wider field of view can reduce blind areas and simplify camera placement.

Suitable examples include equipment monitoring, observation terminals and systems where scene coverage is more important than narrow target framing.

Robotics with Limited Camera Placement

Robotic devices often have restrictions on camera mounting position and mechanical space.

A wide-angle optical design can provide more environmental information without requiring additional camera positions.

Smart Devices Requiring Scene Awareness

Some smart devices need to understand surrounding conditions rather than only capture one focused object.

A wider viewing range helps maintain more contextual information within a single image.

Compact Embedded Camera Systems

For products where the camera needs to connect directly with the main processor, the MIPI interface provides a system-level integration direction.

The final design should consider processor compatibility, optical requirements and mechanical layout together.

Project Evaluation Guide

Consider This Model When

The device needs a wider viewing area from one camera position.
The camera-to-target distance is relatively stable.
Fixed Focus is acceptable for the application.
High-resolution image capture is required.
The host platform supports MIPI camera integration.
A 30Pin BTB connection matches the hardware design.

Confirm Before Sampling

Required coverage area and target distance.
Whether D120° provides sufficient target pixel density.
Acceptable distortion level for the application.
Host processor MIPI and ISP support.
Mechanical space and connector compatibility.
Whether Fixed Focus matches the operating conditions.

Choosing This Model Within the 8K Camera Module Series

This model represents the 48MP wide-angle Fixed Focus direction within the 8K Camera Module Series.

Choose this direction when the project needs to capture a broader scene from a fixed installation position and does not require continuous autofocus adjustment.

Compared with standard-angle 48MP MIPI modules, the main difference is the optical strategy:

Wide-angle configuration → larger scene coverage.
Standard-angle configuration → larger target proportion within the image.

For applications where the target distance changes frequently, an Autofocus model may provide a more suitable solution.

Related Models

IMX586 48MP Autofocus MIPI Camera Module – SF-OC586-POWER-B V1.1

Consider this model when the project requires the same IMX586 sensor platform with Autofocus capability for changing working distances.

OV48B2Q 48MP Wide-Angle Long-FPC MIPI Camera Module – SF-SC48B20-3030524548-B V1.0

Consider this model when the project requires wide-angle coverage with a long-FPC structure and a different sensor platform.

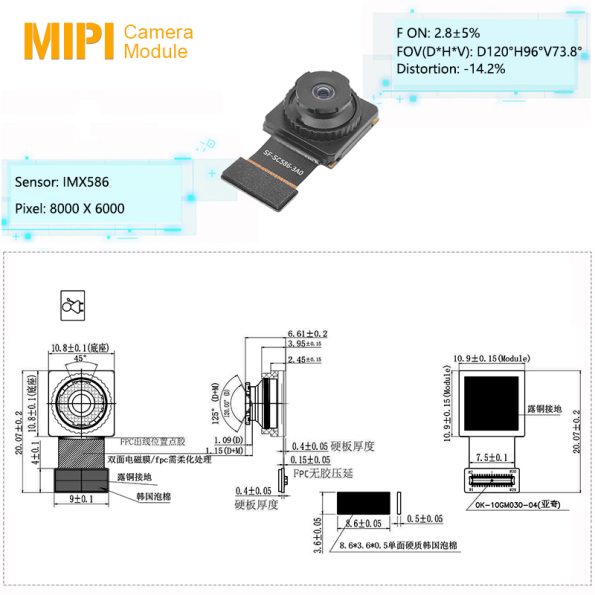

Key Specifications

Specification	Details
Product Name	48MP Wide-Angle MIPI Camera Module

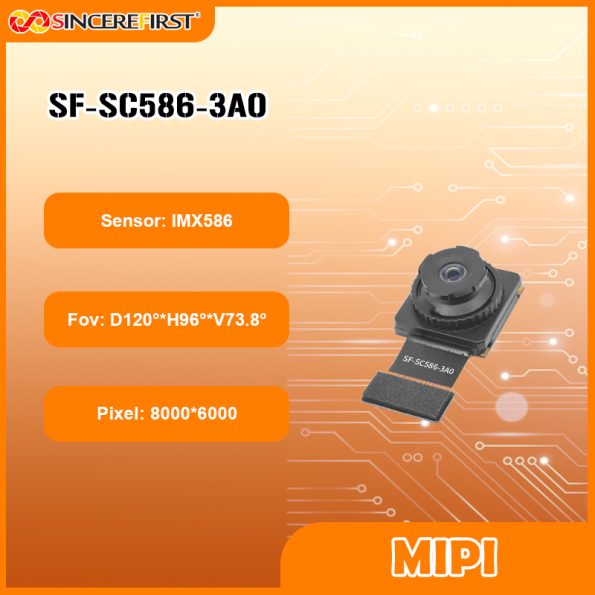

Model	SF-SC586-3A0
Sensor	Sony IMX586 CMOS
Resolution	48MP / 8000 × 6000
Sensor Size	1/2 inch
Pixel Size	0.8μm × 0.8μm
Pixel Technology	4-in-1 Pixel
PDAF	Supported
HDR	Supported
Focus Type	Fixed Focus

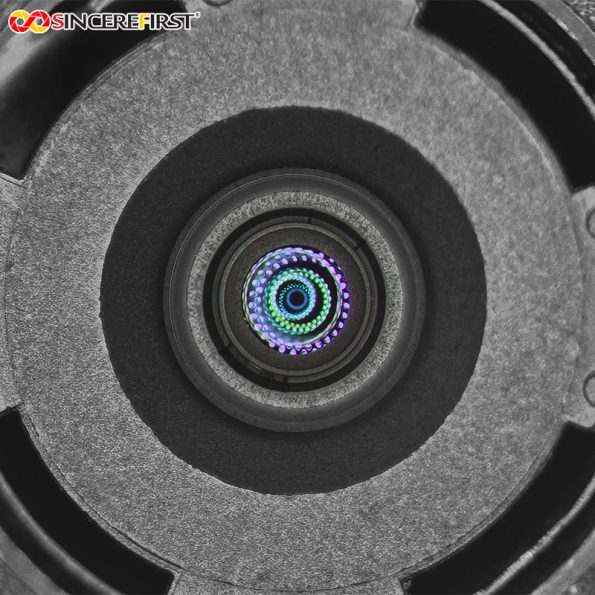

Lens Type	Wide-Angle Lens
Lens Structure	6P
EFL	3.574mm
Aperture	F2.8 ±5%
Field of View	D120° × H96° × V73.8°
TV Distortion	< -14.2%
Interface	MIPI

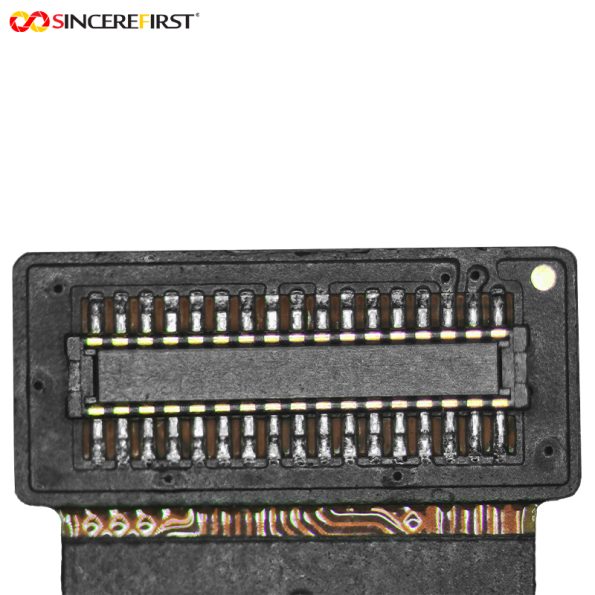

Connector	30Pin BTB

SincereFirst Customization

Lens and Optical Configuration

Lens parameters, field of view and optical structure can be evaluated according to the required coverage area, working distance and image requirements.

Focus Configuration

Fixed Focus configuration can be evaluated according to the target distance, installation position and operating conditions.

FPC and MIPI Integration

FPC layout, connector structure and MIPI interface requirements can be evaluated according to the host platform and mechanical design.

Image Processing Requirements

Sensor output requirements and ISP compatibility can be evaluated according to the target processor and image-processing workflow.

Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.

FAQ

When should I choose a wide-angle Fixed Focus camera instead of an Autofocus camera?

Choose this direction when the camera position and working distance are relatively stable, and the main requirement is capturing a wider scene.

Autofocus is more suitable when the target distance changes significantly during operation.

Does a wider FOV always improve the image result?

No. A wider FOV captures more scene information, but each target occupies fewer pixels in the image.

The correct choice depends on whether the project values coverage area or target detail.

Is this module suitable for measurement applications?

It depends on the required accuracy. Wide-angle lenses usually introduce more optical distortion, so applications requiring precise measurement should evaluate distortion correction requirements before selection.

Can this module replace another 30Pin MIPI camera directly?

No. The same connector count does not guarantee compatibility.

Sensor support, pin definition, MIPI configuration, driver and ISP requirements must be confirmed with the host platform.

Why use Fixed Focus for a 48MP camera module?

High resolution does not always require autofocus.

If the device observes objects within a stable distance range, Fixed Focus can simplify system design and reduce unnecessary focus control requirements.

What information is needed before selecting this module?

The most important factors are camera mounting position, target distance, required viewing area, host processor support and acceptable distortion level.

Request Project Evaluation

If your device needs wider scene coverage from a fixed camera position, share the installation distance, required viewing area, target size, host processor and MIPI requirements.

SincereFirst can help evaluate whether this wide-angle Fixed Focus configuration matches your imaging architecture before sampling.

Evaluate This Module for Your Device

Share your host processor, DPHY MIPI requirements, 24Pin connector conditions, ISP capability, working distance, required FOV and mechanical limitations. SincereFirst can evaluate whether the OV64B40 24Pin Autofocus configuration matches the device before sampling.
