IMX458 4K 13MP MIPI FPC Camera Module for Portable Evidence-Recording Devices
¥1.00
IMX458 13MP MIPI FPC camera module with 4K@30fps video, D117° fixed-focus optics and a separate IR-CUT power lead.
—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.
Introduction
SF-OCIMX458-P2-B V1.0 is a 13MP MIPI FPC camera module developed for portable devices that require broad scene coverage and a fixed optical route. It combines 4K@30fps video capability with a D117° lens, a working range from 10cm to infinity and a separate IR-CUT power lead. The module may be evaluated for evidence-recording, mobile observation and embedded imaging devices where optical coverage and filter control must be coordinated with the final system.
Applications in Real Devices
Portable Evidence-Recording Devices
Portable evidence-recording devices need to capture a broad scene while fitting the camera, lens and filter-control wiring into a
restricted enclosure. The D117° fixed-focus lens provides wider coverage than a conventional narrow-view camera route, while the 10cm-to-infinity working range supports both nearby subjects and general scene observation. The separate IR-CUT power lead gives the system designer an integration point for project-level filter control. The device processor, MIPI interface, IR-CUT driving logic, lighting and enclosure opening must still be validated together.
Mobile Observation Terminals
The module can be evaluated for mobile terminals that need 13MP image detail and broad visual coverage without a VCM autofocus mechanism.
Embedded Recording Equipment
Its MIPI FPC structure is relevant to embedded recorders where the host processor manages image processing and system-level video functions.
Project Evaluation Guide
Consider This Model When
- The project requires 13MP imaging and 4K@30fps video.
- A D117° field of view is relevant to the target scene.
- Fixed Focus from 10cm to infinity matches the device.
- The system requires a separate connection for IR-CUT control.
Confirm Before Sampling
- Host MIPI interface and supported operating modes.
- Required output format and image-processing pipeline.
- IR-CUT voltage, driving logic and switching method.
- Available space for the module and IR-CUT wiring.
- Enclosure opening and acceptable edge distortion.
- Lighting environment and day/night imaging requirements.

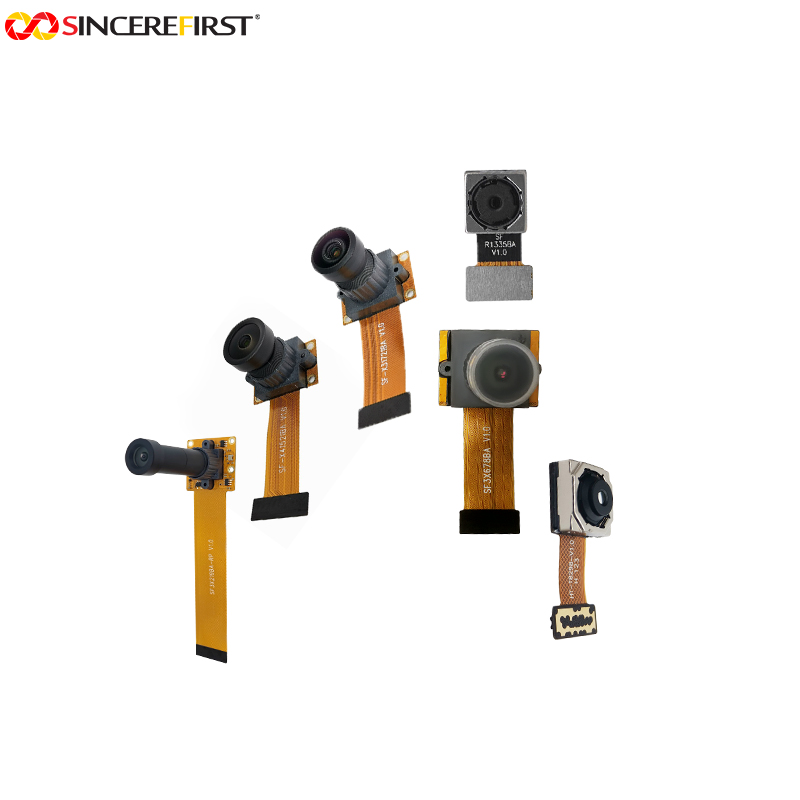

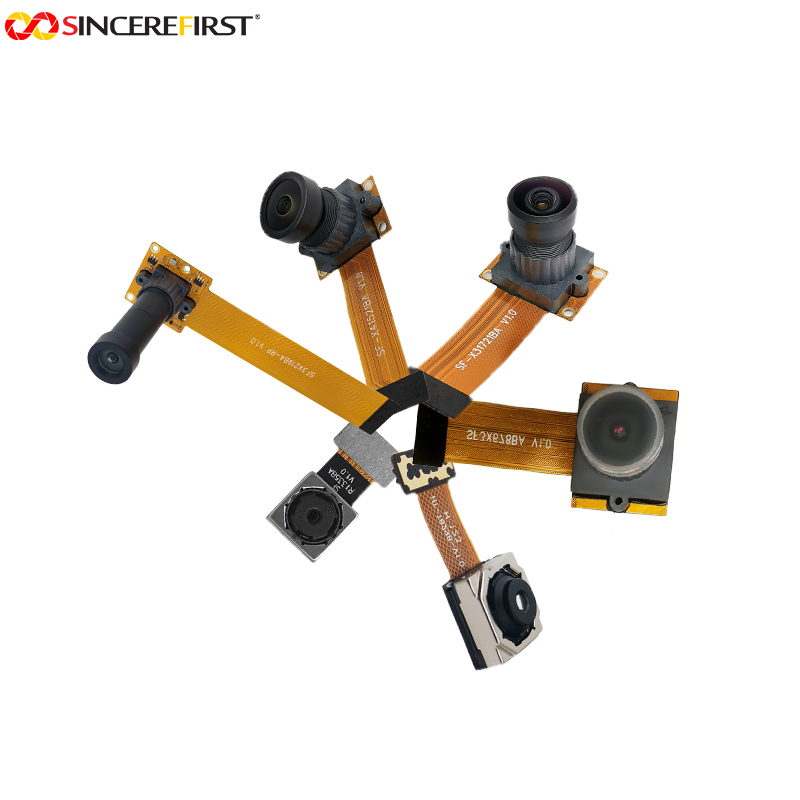

Choosing This Model Within the 4K MIPI FPC Camera Module Series
SF-OCIMX458-P2-B V1.0 occupies the 13MP wide-angle fixed-focus position within the 4K MIPI FPC Camera Module Series. It differs from the 8MP high-frame-rate models by prioritizing 13MP sensor detail, D117° coverage and a separate IR-CUT power connection. Projects requiring 4K@60fps may compare SF-X31721BA V1.0, while projects needing a compact autofocus BTB structure may evaluate SF-R1335BA V1.0.
Related Models
IMX317 – SF-X31721BA V1.0: alternative MIPI route for 4K@60fps and a 1m-to-infinity fixed-focus range.
AR1335 – SF-R1335BA V1.0: alternative 13MP route with VCM Autofocus and a compact BTB structure.
Key Specifications
Specification | Details |
Sensor | Sony IMX458 CMOS |
Resolution | 13MP |
Maximum Video Output | 4K@30fps |
Lens Structure | 4G + 2P |
Sensor Glass | IR white glass |
Interface | 25Pin MIPI |
Focus Type | Fixed Focus |
FOV | D117° |
EFL | 2.35mm |
Focus Range | 10cm–Infinity |
F.No | 2.4 |
TV Distortion | <−15% |
SincereFirst Customization
Lens and FOV
The standard D117° fixed-focus lens can be evaluated against the required scene coverage, enclosure opening and acceptable edge distortion. Alternative optical directions can be reviewed for devices requiring a different balance between coverage and image detail.
Fixed-Focus Configuration
The confirmed focus range is 10cm to infinity. Lens focus position can be evaluated according to the main working distance and the expected near-to-distance imaging range.
FPC and 25-Pin Interface
FPC outline, cable direction, 25-pin definition and module-side reinforcement structure can be evaluated according to the host-board layout and available installation space.
IR-CUT Integration
The module provides a separate IR-CUT power lead. Terminal definition, cable routing, driving voltage and device-side switching control can be coordinated according to the final day/night imaging design.
Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.
FAQ
Does the module include automatic IR-CUT switching?
The drawing confirms a separate IR-CUT power lead. Automatic switching logic is not defined and must be evaluated with the final device design.
Is this an autofocus module?
No. The standard configuration uses Fixed Focus with a 10cm-to-infinity focusing range.
What is the confirmed video capability?
The product is confirmed for 4K@30fps video. The exact output format should be confirmed against the host integration requirements.
Why should the enclosure opening be checked?
The D117° lens captures a broad scene, so a restricted opening may block the image edges or change the effective visible field.
Evaluate This Module for Your Device
Share your host platform, MIPI requirements, IR-CUT control method, working distance, target FOV and enclosure dimensions for project evaluation before sampling.
