IMX582 48MP RAW MIPI Autofocus Camera Module for Embedded Vision Platforms

Name: IMX582 48MP RAW MIPI Autofocus Camera Module for Embedded Vision Platforms
SKU: 15231
Price: 1.00 USD
Availability: InStock

$1.00

IMX582 48MP MIPI camera module with VCM autofocus, PDAF, HDR, RAW10 output and BTB connector design for embedded vision platforms requiring high-resolution imaging.

—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.

... people are viewing this right now

Description Send Inquiry

Introduction

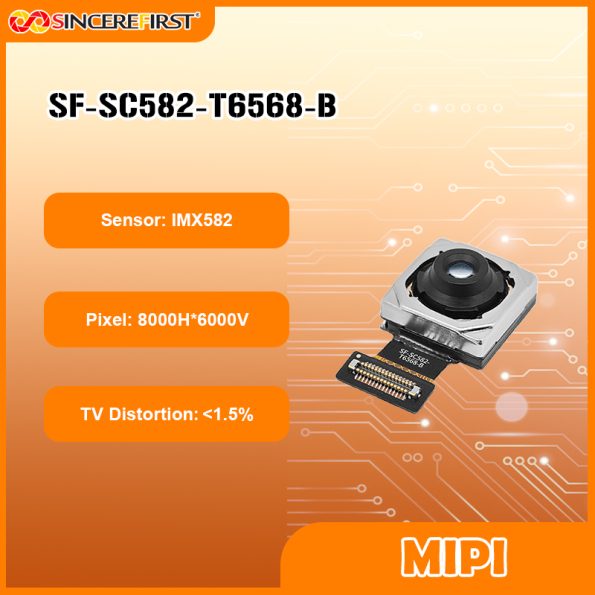

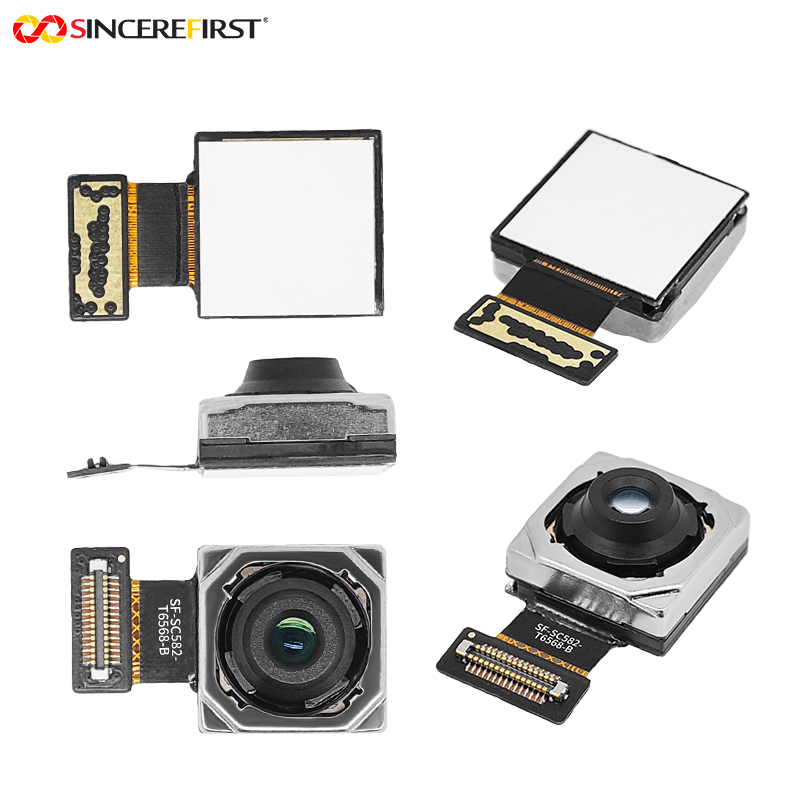

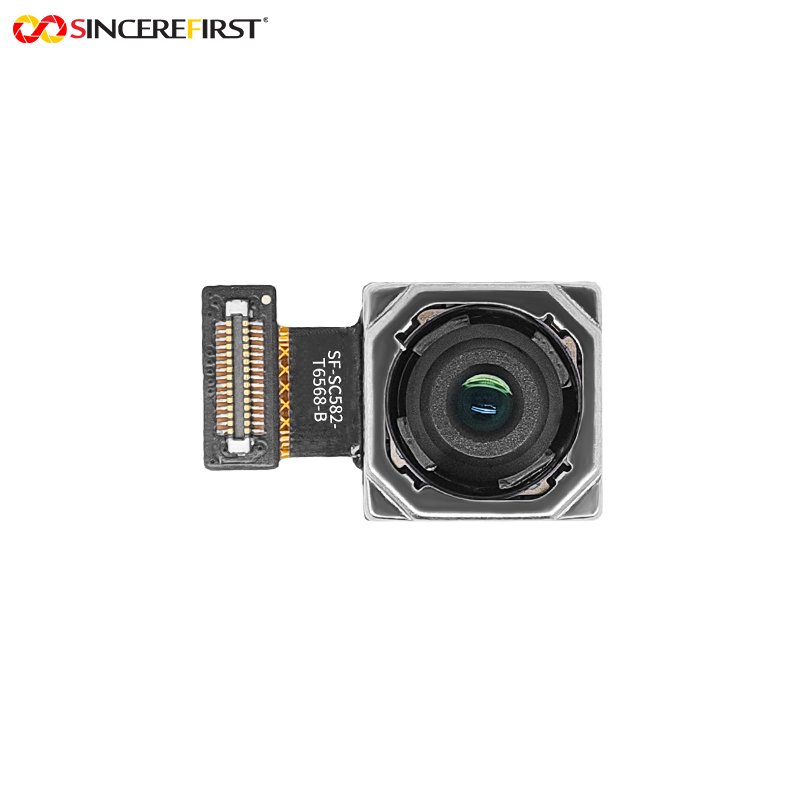

SF-SC582-T6568-B is a 48MP MIPI camera module designed for embedded systems that require high-resolution image capture, RAW output and direct processor integration.

Based on the Sony IMX582 CMOS sensor, it supports 8000×6000 resolution with 4-in-1 pixel technology, PDAF and HDR. The module uses a VCM Autofocus structure and provides 10bit RAW output through a BTB MIPI interface, making it suitable for embedded platforms requiring ISP processing and customized image pipelines.

Unlike USB camera modules in the 8K Camera Module Series, this model is positioned for projects where the camera sensor needs to be integrated directly with the host processor.

Applications in Real Devices

Embedded AI Vision Systems

AI vision devices often require access to high-quality image data before algorithm processing. RAW10 output allows the host platform to perform image processing according to the system requirements.

Industrial Embedded Inspection Equipment

For inspection systems where the camera is integrated directly into the device electronics, MIPI architecture provides a compact connection method between the sensor module and the host processor.

Compact OEM Embedded Products

The BTB MIPI structure allows the module to be evaluated for compact devices where internal space, connector reliability and direct sensor integration are important considerations.

Project Evaluation Guide

Consider This Model When

Direct MIPI integration with an embedded processor is required.
RAW10 output is needed for ISP processing.
48MP image detail is required.
Autofocus is needed for changing target distances.
PDAF and HDR functions are valuable to the application.
BTB connector integration matches the hardware design.

Confirm Before Sampling

Host processor MIPI compatibility.
D-PHY configuration and lane requirements.
ISP support for IMX582 RAW data.
Required autofocus range and working distance.
Lens field of view and distortion requirements.
FPC/BTB connector compatibility.
Image tuning requirements.

Choosing This Model Within the 8K Camera Module Series

SF-SC582-T6568-B is the 48MP MIPI RAW autofocus direction within the 8K Camera Module Series.

Choose this model when the project requires direct embedded integration, RAW10 output and ISP control rather than USB/UVC communication.

Compared with USB 48MP modules, this model provides deeper hardware integration. Compared with other MIPI 48MP models, the final choice depends on connector structure, optical configuration, sensor platform and host compatibility.

Related Models

IMX582 48MP MIPI Autofocus – SF-SC582-M100CE-B
Consider this model when the project requires the same IMX582 48MP platform but a different BTB connector structure.

IMX586 48MP MIPI Autofocus – SF-SC586 Series
Consider this direction when the project prefers the IMX586 sensor platform with different optical or mechanical configurations.

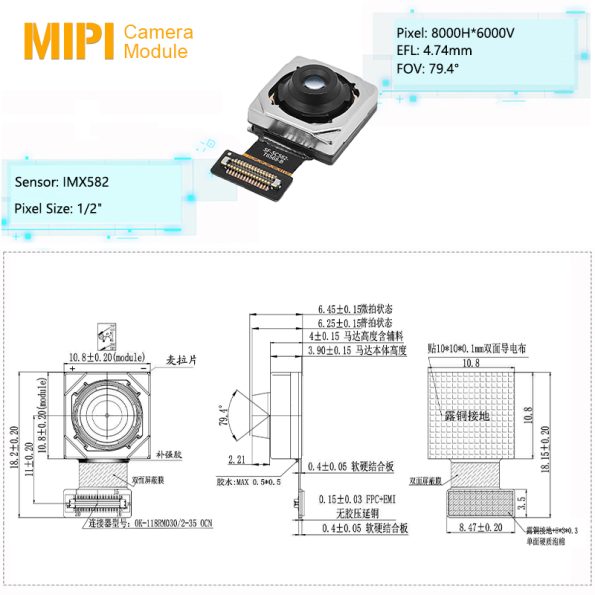

Key Specifications

Specification	Details
Model	SF-SC582-T6568-B
Sensor	Sony IMX582 CMOS
Resolution	48MP / 8000 × 6000
Sensor Size	1/2 inch
Pixel Size	0.8μm × 0.8μm
Pixel Technology	4-in-1 Pixel
PDAF	Supported
HDR	Supported
Output Format	10bit RAW
Focus	VCM Autofocus
Field of View	D79.4°
Distortion	<1.5%
Interface	BTB MIPI

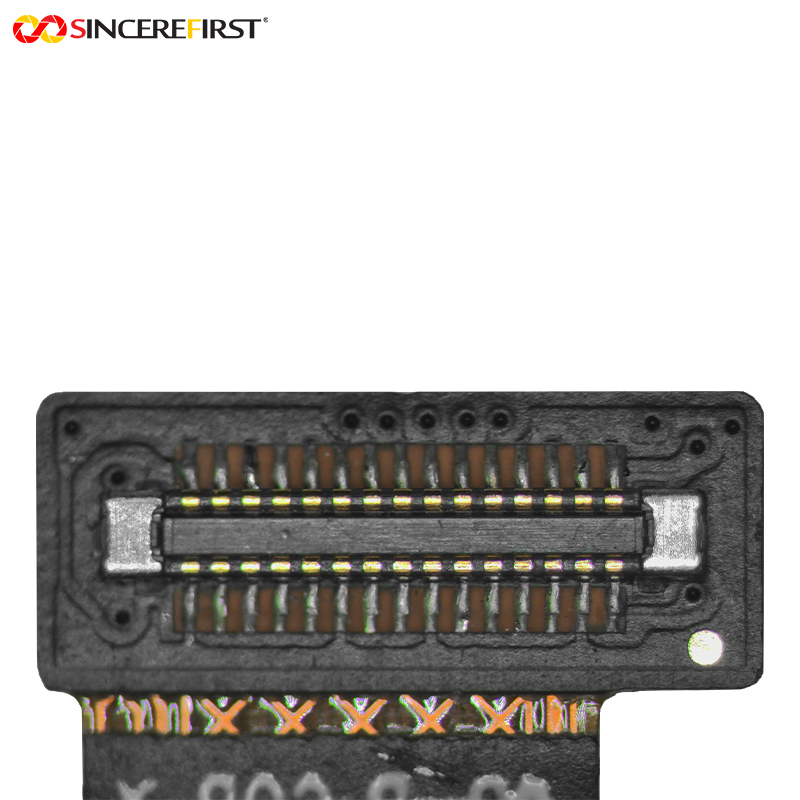

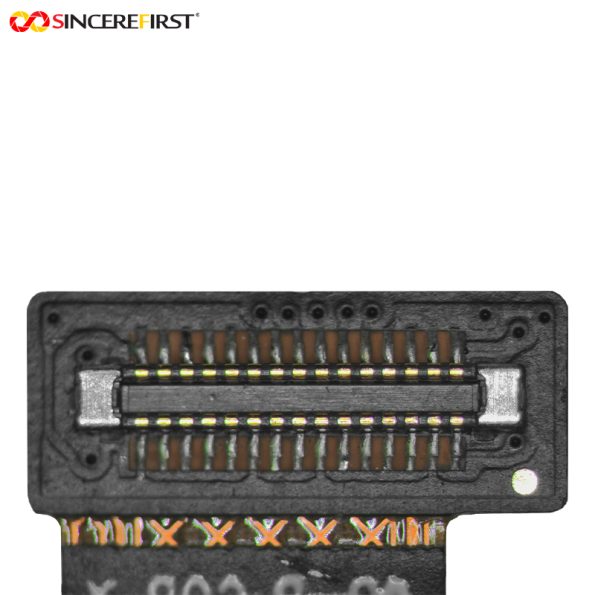

Connector	36Pin
Shutter Type	Rolling Shutter

SincereFirst Customization

MIPI Interface and Host Integration

The BTB MIPI interface can be evaluated according to the host processor, lane configuration and ISP requirements. Camera integration should be confirmed with the target platform before hardware design is finalized.

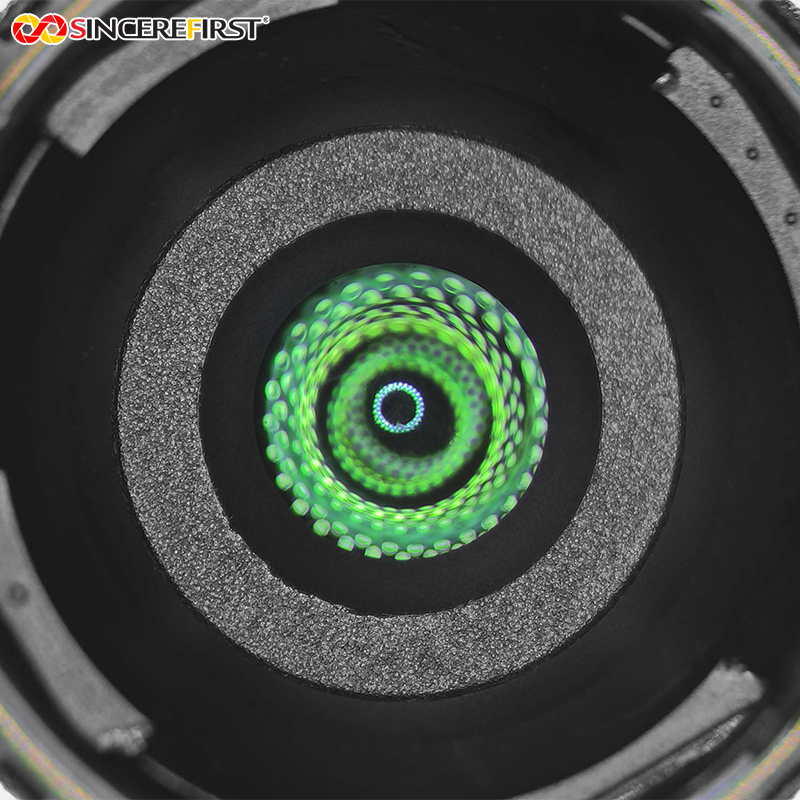

Lens and Field of View

The optical configuration can be evaluated according to working distance, target size, required FOV and distortion requirements.

Autofocus Configuration

VCM Autofocus performance can be evaluated according to the required focusing range, target movement and device operating conditions.

RAW Output and ISP Tuning

RAW10 output allows deeper image processing control. ISP tuning requirements can be evaluated according to the final processor platform and image-quality target.

Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.

FAQ

Why choose a MIPI module instead of a USB 48MP camera?

Choose MIPI when the device requires direct sensor integration, RAW data access or customized ISP processing. USB modules are generally more suitable when standard camera communication is preferred.

Does 48MP automatically improve AI recognition accuracy?

Not always. AI performance depends on image quality, optics, lighting and algorithm design. Higher resolution is valuable when the additional image detail can actually be used by the system.

What should be confirmed before connecting this module to a processor?

The processor must support the required MIPI interface configuration, sensor timing, RAW data format and ISP processing requirements.

Why is RAW10 output important?

RAW output preserves sensor data before final image processing. This allows the device manufacturer to apply its own ISP pipeline instead of relying on a fixed USB camera image output.

Is Autofocus necessary for embedded inspection systems?

It depends on the working condition. Autofocus is useful when target distance changes; fixed focus may be more suitable for devices observing a stable position.

Evaluate This Module for Your Device

Share your host processor, MIPI interface requirement, ISP capability, working distance, required FOV, autofocus requirement and image-quality target. SincereFirst can evaluate the suitable 48MP MIPI configuration before sampling.
