IMX219 4K 8MP Autofocus MIPI Camera Module for Raspberry Pi Vision Devices
¥1.00
IMX219 8MP autofocus MIPI camera module with RAW10 output, D75.6° coverage and a 10cm-to-infinity range for Raspberry Pi vision devices.
—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.
Introduction

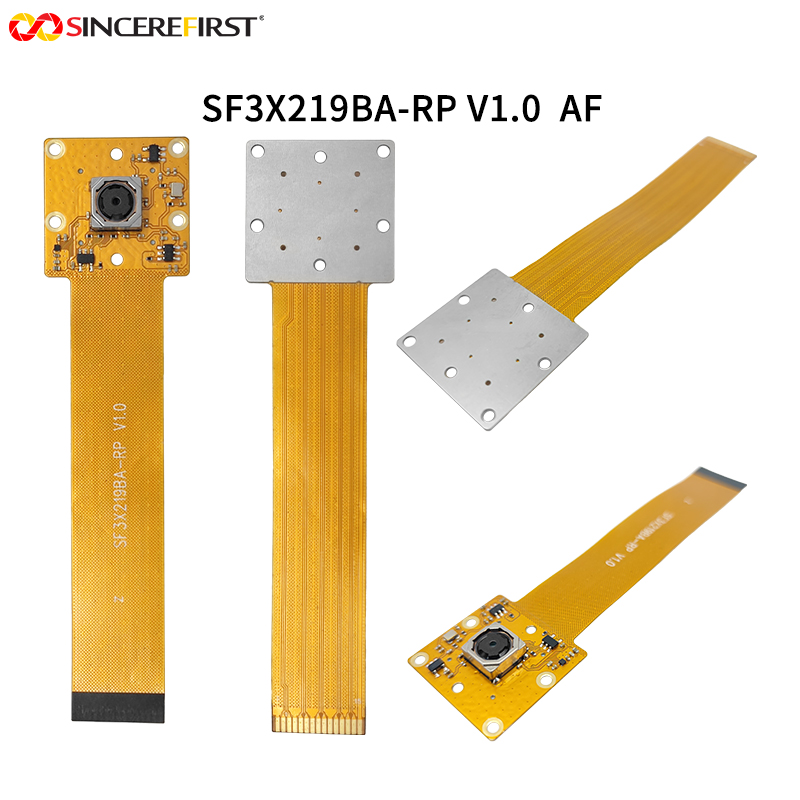

SF3X219BA-RP V1.0 is an 8MP MIPI camera module developed for Raspberry Pi-based vision devices that need autofocus across changing working distances. It provides a 3296×2480 sensor pixel array, 10-bit RGB RAW output and 4K@30fps video capability. The standard optical configuration covers D75.6° with a focus range from 10cm to infinity, supporting project evaluation for robotics, smart terminals and embedded vision prototypes.
Applications in Real Devices
Raspberry Pi Robotics Vision
Robotics platforms may need to observe objects at different distances while the camera or target moves. The VCM autofocus
structure allows the module to adjust between near and distant subjects within the confirmed 10cm-to-infinity range. Its MIPI and RAW10 route is intended for Raspberry Pi-based systems where image processing is handled by the host. Developers should still confirm the Raspberry Pi board, adapter structure, software stack, driver support, FPC orientation and required autofocus control before moving from initial testing to an OEM device.
Smart Interactive Terminals
The 8MP resolution and autofocus configuration can support terminals that capture users, objects or documents at changing distances, subject to host software and lighting validation.
Embedded Vision Prototypes
The module provides a practical route for developers evaluating MIPI imaging, autofocus control and lens matching before defining a final OEM structure.
Project Evaluation Guide
Consider This Model When
- The device uses a Raspberry Pi-based MIPI imaging route.
- The target distance changes between approximately 10cm and infinity.
- The project requires 8MP detail and RAW10 image input.
- A medium field of view is preferred over ultra-wide or telephoto optics.
Confirm Before Sampling
- Raspberry Pi model and camera connector route.
- Required adapter board or FPC conversion.
- Driver, software and autofocus-control environment.
- Target working distance and required focus response.
- FOV and enclosure opening.
- Whether optional EEPROM is required.
D200° or wider lens requirements, including distortion tolerance and enclosure space.
Choosing This Model Within the 4K MIPI FPC Camera Module Series
SF3X219BA-RP V1.0 is positioned as the balanced 8MP autofocus route within the Raspberry Pi MIPI Camera Module Series. It provides more image detail than a 5MP development route while keeping a compact MIPI structure. Projects requiring a lower-cost 5MP direction may compare SF3V5640BA-RP, while projects prioritizing 12MP resolution or a wider optical route may evaluate an IMX708-based Raspberry Pi model.
Related Models
OV5640 – SF3V5640BA-RP: lower-resolution autofocus route for cost-controlled Raspberry Pi devices.
IMX708 – SF4V708BA-RP V1.0: higher-resolution Raspberry Pi route for projects evaluating 12MP imaging and different optical configurations.

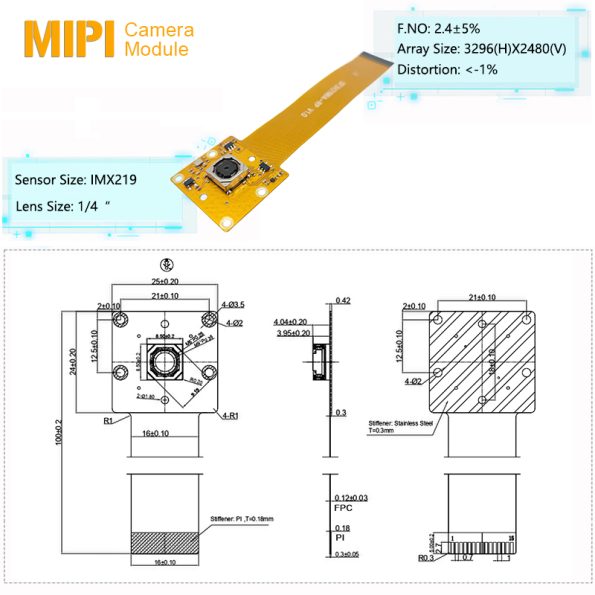

Key Specifications
Specification | Details |
Sensor | Sony IMX219 CMOS |
Resolution | 8MP, 3296×2480 |
Maximum Video Output | 4K@30fps |
Sensor Size | 1/4 inch |
Output Format | 10-bit RGB RAW |
Interface | 15Pin MIPI |
Focus Type | VCM Autofocus |

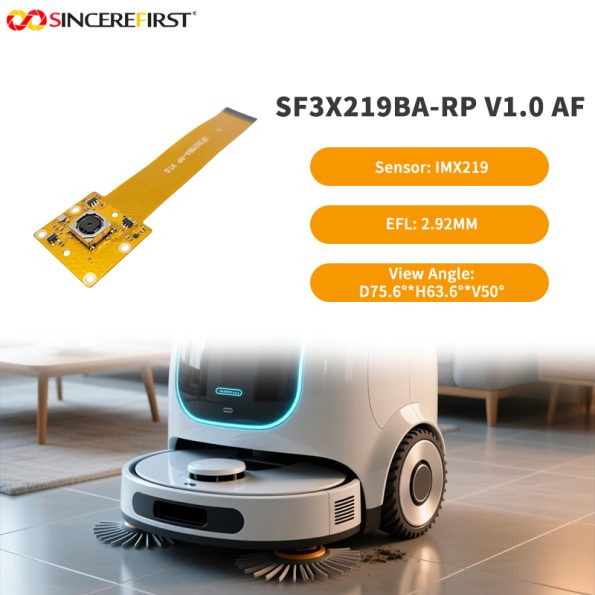

FOV | D75.6° × H63.6° × V50° |
EFL | 2.92mm |
Focus Range | 10cm–Infinity |
F.No | 2.4 |
TV Distortion | <−1% |
SincereFirst Customization
Lens and FOV
The standard D75.6° lens can be evaluated according to the required scene width and device opening. Alternative FOV or telephoto directions may be reviewed when the application requires wider coverage or more concentrated distant observation.
Autofocus Configuration
The standard VCM Autofocus route covers 10cm to infinity. Autofocus range, lens matching and focus-control requirements can be evaluated according to the Raspberry Pi platform and actual target distance.
FPC and Raspberry Pi Connection
FPC length, contact direction, adapter-board structure and Raspberry Pi camera-connector routing can be evaluated according to the selected board and enclosure layout.
RAW and EEPROM Options
RAW10 operation, sensor-control requirements and optional EEPROM configuration can be reviewed together with the host
software, driver environment and module-identification requirements.
Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.
FAQ
Is this module directly compatible with every Raspberry Pi board?
Compatibility depends on the Raspberry Pi model, connector, adapter, operating system and driver environment. These items should be confirmed before sampling.
Does the module include autofocus?
Yes. The standard configuration uses VCM Autofocus with a confirmed range from 10cm to infinity.
What image format does it output?
The module provides 10-bit RGB RAW data through the MIPI interface.
Can the standard lens be changed?
Alternative lens and FOV directions can be evaluated according to the working distance, enclosure opening and target scene.
Evaluate This Module for Your Device
Share your Raspberry Pi model, software environment, connector route, working distance, target FOV and autofocus requirements for project evaluation before sampling.
