IMX317 4K 60fps MIPI FPC Camera Module for Embedded Imaging Devices
¥1.00
IMX317 8MP MIPI FPC camera module with 4K@60fps RAW output, F1.8 fixed-focus optics and H116° coverage for embedded imaging devices.
Introduction

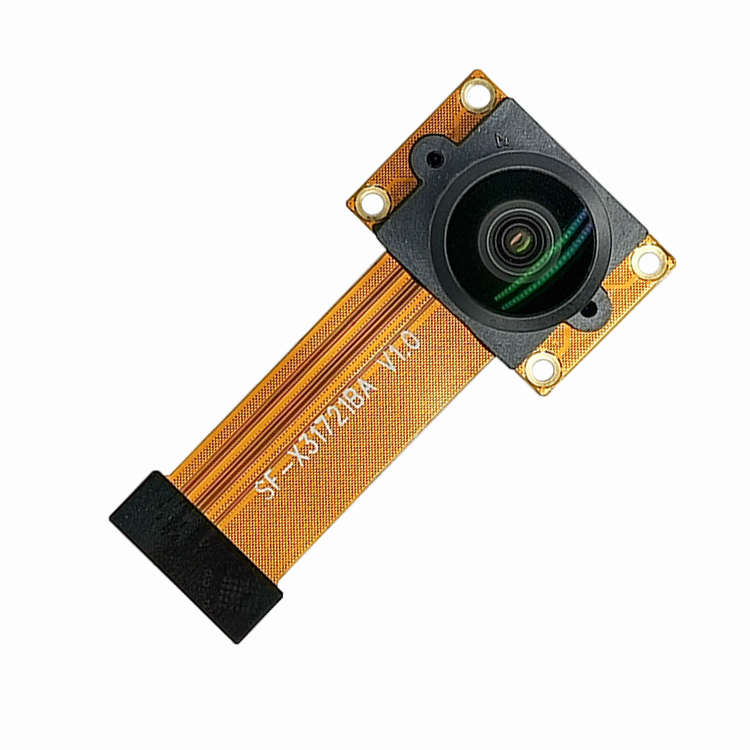

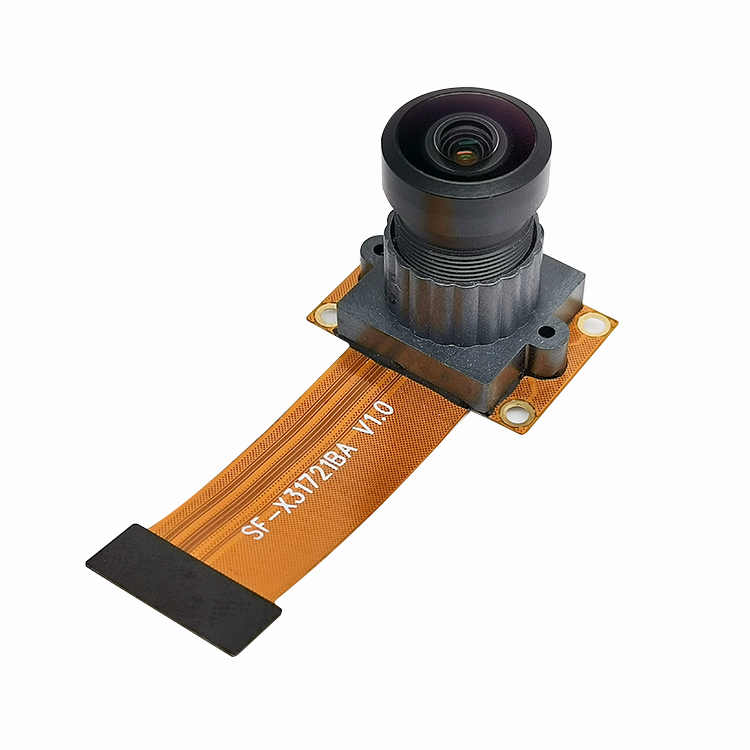

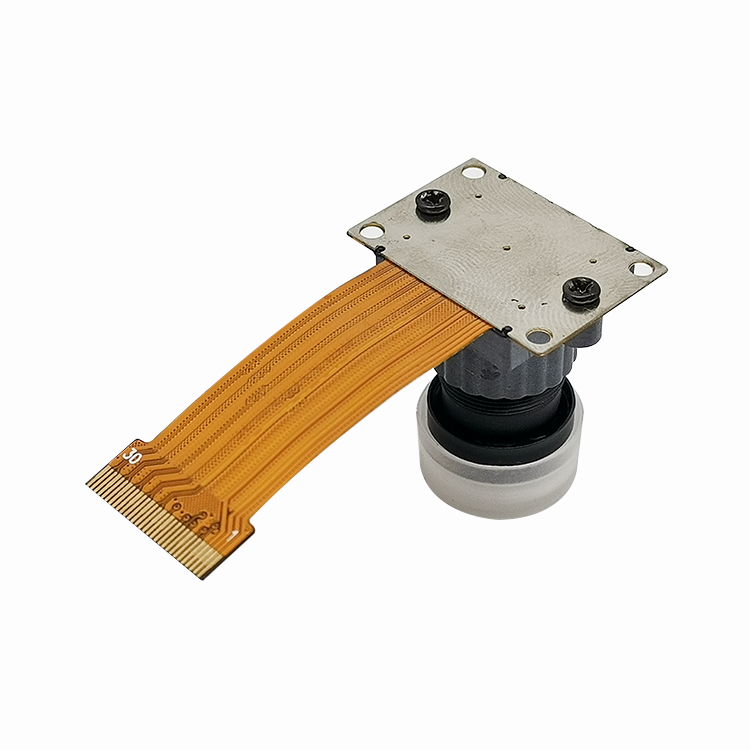

SF-X31721BA V1.0 is an 8MP MIPI FPC camera module developed for embedded devices that require 4K video input, host-side RAW processing and a defined long-range focus setting. Its F1.8 fixed-focus lens provides H116° horizontal coverage with a working distance from 1m to infinity. The module may be considered for devices where wide scene capture, higher frame rate and direct MIPI integration need to be evaluated together.
Applications in Real Devices
Embedded Industrial Observation Devices
Industrial observation devices often need to capture a broad working area while sending unprocessed image data directly to an embedded processor. This module combines 4K@60fps capability, RAW10/RAW12 output and an H116° fixed-focus optical route.
The 1m-to-infinity working range is relevant when the camera position and target distance remain relatively stable. Before sampling, the host MIPI lane configuration, ISP processing, enclosure opening and actual scene distortion requirements should be checked as one integrated system.
Fixed-Position Monitoring Terminals
The fixed-focus configuration can be evaluated for terminals installed at a predetermined distance, where repeated mechanical refocusing is unnecessary and stable scene coverage is more important.
Embedded Vision Development Platforms
The MIPI FPC structure provides a direct sensor-to-host integration route for development platforms with a compatible MIPI interface and suitable RAW image-processing capability.
Project Evaluation Guide
Consider This Model When
- The host platform accepts MIPI RAW10 or RAW12 input.
- The project requires confirmed 4K@60fps video output.
- The target scene requires H116° horizontal coverage.
- The camera normally operates from 1m to infinity.
Confirm Before Sampling
- Host processor, MIPI lane configuration and ISP support.
- Required RAW bit depth and operating mode.
- Available FPC routing and connector direction.
- Target horizontal, vertical and diagonal scene coverage.
- Enclosure opening and permitted edge distortion.
- Whether the standard lens or optional D200°+ direction is required.
D200° or wider lens requirements, including distortion tolerance and enclosure space.
Choosing This Model Within the 4K MIPI FPC Camera Module Series
SF-X31721BA V1.0 occupies the high-frame-rate fixed-focus position within the 4K MIPI FPC Camera Module Series. It may be considered when F1.8 optics, H116° coverage and a 1m-to-infinity working range match the device. Projects requiring broader standard coverage may compare SF-X41521BA V1.0, while projects prioritizing a larger sensor format and different low-light or optical requirements may evaluate SF3X678BA V1.0.
Related Models
IMX415 – SF-X41521BA V1.0: alternative 4K@60fps MIPI fixed-focus route with H129° horizontal coverage.
IMX678 – SF3X678BA V1.0: alternative wide-angle MIPI route for projects evaluating a larger sensor format and different imaging requirements.

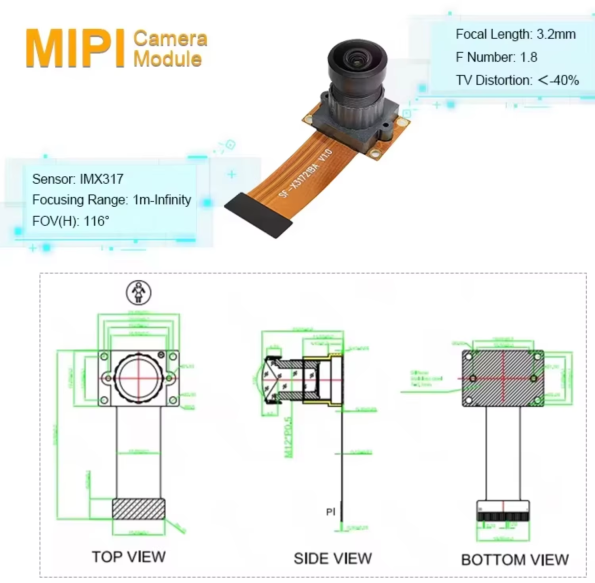

Key Specifications
Specification | Details |
Sensor | Sony IMX317 CMOS |
Resolution | 8MP / 3864×2202 |
Maximum Video Output | 4K@60fps |
Optical Format | 1/1.8 inch |
Output Format | RAW10 / RAW12 |
Interface | MIPI FPC |
Focus Type | Fixed Focus |
FOV | H116° |
EFL | 3.2mm |
Focus Range | 1m to Infinity |
F.No | 1.8 |
TV Distortion | <−40% |
SincereFirst Customization
- Standard lens and alternative FOV evaluation.
- D200°+ wide-angle lens project evaluation.
- FPC length, outline and routing evaluation.
- Connector definition and orientation coordination.
- Host MIPI and ISP compatibility review.
FAQ
Is this an autofocus camera module?
No. The standard configuration uses Fixed Focus with a confirmed working range from 1m to infinity.
Does it provide processed USB video?
No. It uses a MIPI FPC interface and outputs RAW10/RAW12 data for processing by the host platform.
Is the D200°+ lens the standard configuration?
No. The standard lens provides H116° coverage. A D200°+ direction can be evaluated according to the project structure and image requirements.
What should be checked before requesting a sample?
Confirm the host MIPI interface, RAW format, working distance, required FOV, FPC routing, connector direction and available enclosure space.
Evaluate This Module for Your Device
Share your host platform, MIPI configuration, working distance, target FOV, enclosure limits and required RAW mode for project evaluation before sampling.
