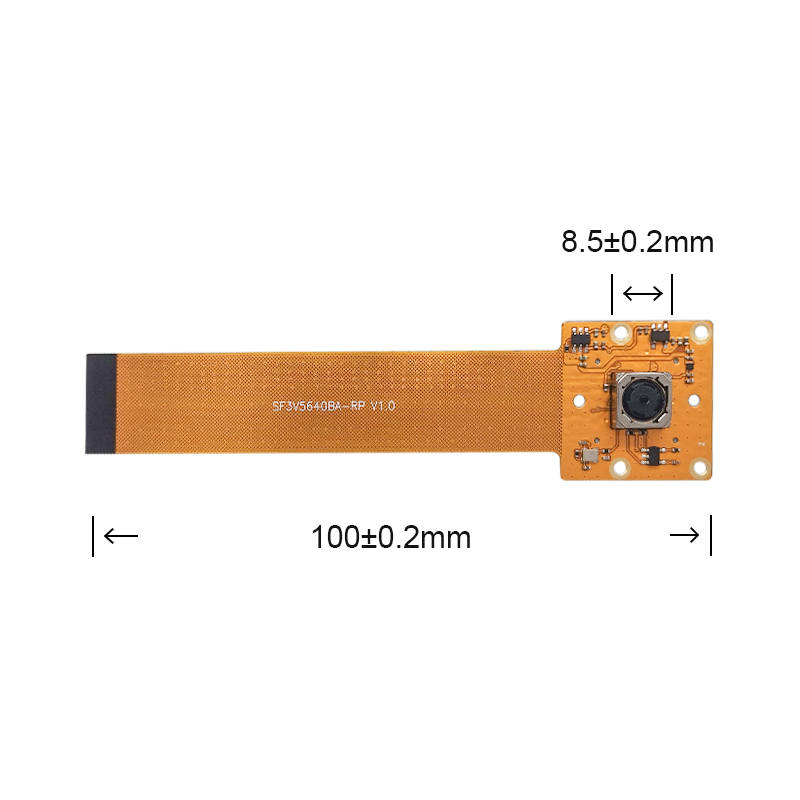

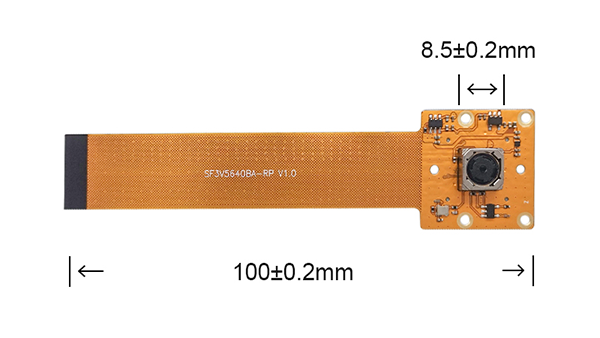

OV5640 5MP Autofocus FPC Camera Module for Raspberry Pi Robotics
$1.00
OV5640 5MP Raspberry Pi MIPI camera module with standard VCM Autofocus, D65.5° optics and optional Fixed Focus.
—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.
Introduction
SF3V5640BA-RP is a 5MP MIPI FPC camera module for Raspberry Pi-based devices that need Autofocus without moving to a higher-resolution camera platform. Its standard VCM Autofocus configuration covers working distances from 10cm to infinity, while the D65.5° lens provides balanced scene coverage for robotics and general embedded vision. A Fixed-Focus version can also be evaluated when the target distance remains stable.
Applications in Real Devices

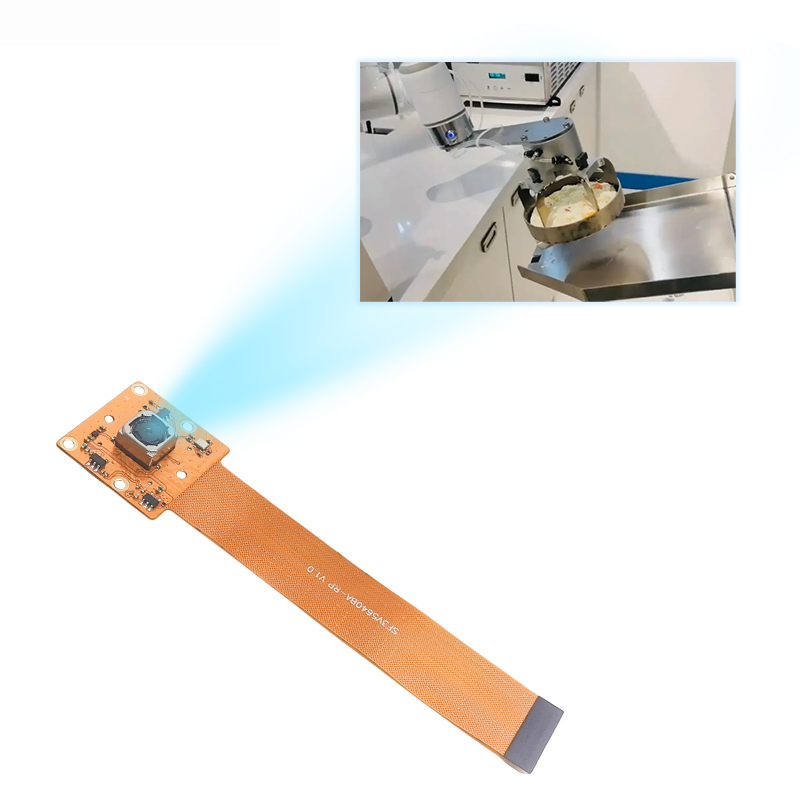

Raspberry Pi Robotics
Robotics systems often observe objects at different distances as the device or target moves. VCM Autofocus helps maintain usable focus without locking the camera to one fixed target
plane, while the 5MP resolution provides a practical route when 8MP or 12MP detail is unnecessary. The D65.5° lens provides moderate scene coverage without moving into an ultra-wide optical design. Board connection, focus control and target distance should be checked before sampling.
Interactive Embedded Devices
The module can be evaluated for Raspberry Pi terminals that capture nearby objects or users at changing positions while keeping the camera structure compact.
Vision Development Platforms
Its MIPI FPC structure provides a practical route for prototypes that require direct camera integration, Autofocus and host-side image processing.
Project Evaluation Guide
Consider This Model When
- 5MP resolution is sufficient for the visual task.
- VCM Autofocus is required.
- D65.5° coverage matches the scene.
- A cost-controlled Raspberry Pi camera route is preferred.
Confirm Before Sampling
- Raspberry Pi board and camera connector.
- Target-distance range.
- Autofocus-control environment.
- Required FOV.
- FPC orientation and routing.
- Whether AF or optional FF is required.
Choosing This Model Within the Raspberry Pi FPC Camera Module Series
SF3V5640BA-RP is the cost-effective Autofocus route in this Series. It is suitable when 5MP resolution is sufficient but the working distance changes during use. Projects requiring long-distance narrow-FOV observation can compare SF3X219BA-RP V1.1, while projects requiring higher resolution and much wider scene coverage can evaluate SF4V708BA-RP V1.0.
Related Models
IMX219 – SF3X219BA-RP V1.1: Fixed-Focus telephoto alternative with an 8MP sensor, 46mm M12 lens and D5.65° coverage for distant targets.
IMX708 – SF4V708BA-RP V1.0: 12MP wide-angle Autofocus alternative with D120° coverage for broader and more variable scenes.

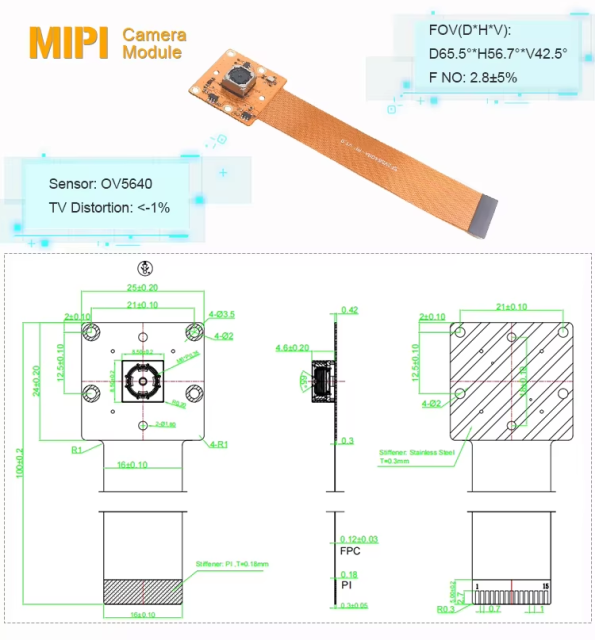

Key Specifications
Specification | Details |
Sensor | OV5640 CMOS |
Resolution | 5MP / 2592 × 1944 |
Sensor Size | 1/4 inch |
Pixel Size | 1.4μm × 1.4μm |
Platform | Raspberry Pi |
Interface | 15Pin MIPI |
Focus Type | VCM Autofocus |
FOV | D65.5° × H56.7° × V42.5° |
EFL | 3.4mm |
Focus Range | 10cm–Infinity |
F.No | F2.8 |
TV Distortion | <1% |
SincereFirst Customization

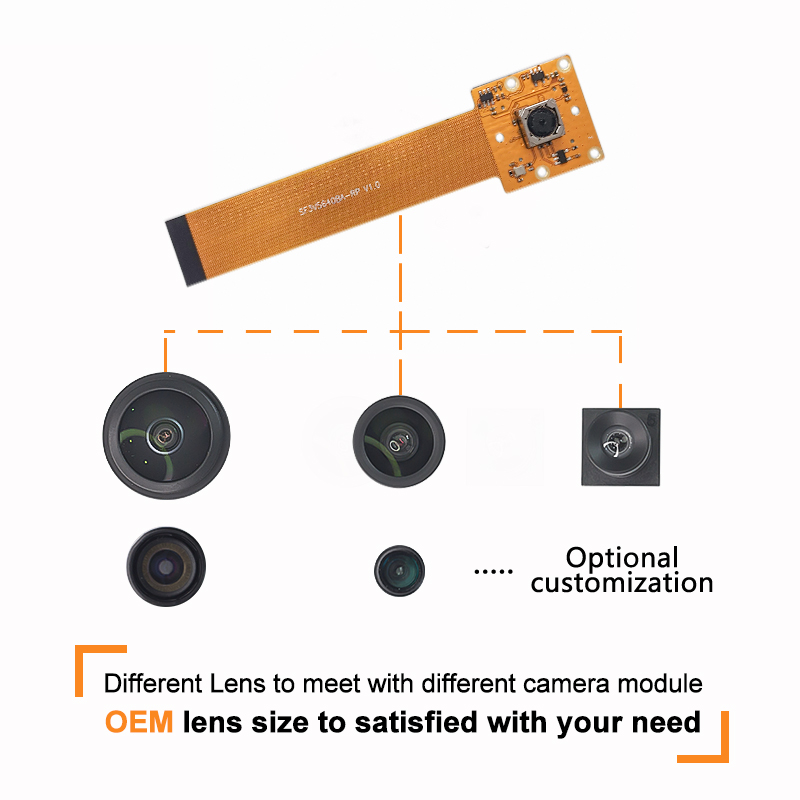

Lens and FOV
The standard D65.5° lens can be matched to the required scene width and enclosure opening. Alternative lens parameters can be evaluated for wider or narrower viewing requirements.
Autofocus and Fixed-Focus Options
VCM Autofocus is standard for changing target distances. A Fixed-Focus version can be evaluated when the device operates around a stable target plane.
FPC and Connector
FPC length, contact direction and cable routing can be evaluated according to the Raspberry Pi board position and internal enclosure layout.
MIPI and ISP Integration
MIPI connection, sensor output, ISP requirements and host software can be reviewed with the selected Raspberry Pi platform before sampling.
Final configuration should be validated with the actual host
platform, enclosure, optics, software, and lighting environment before sampling.
FAQ
Is Autofocus standard?
Yes. VCM Autofocus is the standard configuration. Fixed Focus is available as an optional direction.
Why consider this instead of a 12MP model?
Consider it when 5MP already meets the visual requirement and the project prioritizes Autofocus and cost control over maximum resolution.
What is the standard FOV?
The standard lens provides D65.5° × H56.7° × V42.5° coverage.
Is it compatible with every Raspberry Pi board?
The Raspberry Pi board, camera connector, FPC direction and software environment should be confirmed before sampling.
Evaluate This Module for Your Device
Share your Raspberry Pi board, target-distance range, required FOV, focus configuration and FPC routing for project evaluation before sampling.
Send Inquiry
