High Frame Rate 4MP 90FPS OV4689 CMOS Sensor MIPI Monitoring Camera Module with IR Cut Filter

Product Introduction:

This is a high-frame-rate 4MP 90FPS OV4689 CMOS sensor MIPI monitoring camera module with IR cut filter. Built on the OmniVision OV4689 image sensor, it features 4MP high-definition pixels and 2688×1520 resolution, enabling stable output of smooth images at 2688×1520@90FPS and 1920×1080@120FPS—providing strong support for capturing fast-moving dynamic scenes. The sensor adopts a 1/3-inch optical format, and its 2μm×2μm pixel size, combined with PureCel® technology and HDR function, greatly enhances the dynamic range and detail performance of images. The 10-bit RAW output format also reserves ample space for post-image processing.

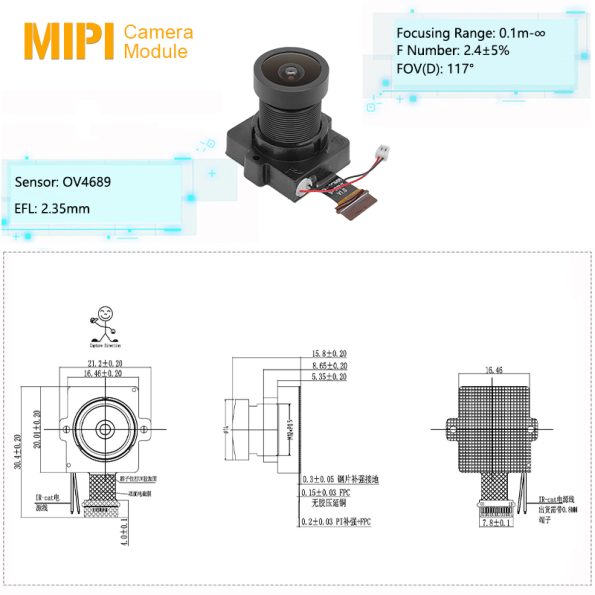

In terms of optical configuration, the module uses a manual focus design, paired with an F2.4 large aperture and 2.35mm focal length, achieving a wide depth of field from 10cm to Infinity. Its 117° ultra-large field of view covers a broader shooting range, while TV distortion is controlled within -15% to ensure image fidelity. The lens adopts a precision 4G+2P structure and 2 IR filters, with an integrated IR cutter that automatically switches between day and night modes via the built-in dual IR filters: during the day, it accurately filters infrared light to ensure true color reproduction; at night, it allows sufficient infrared light to enter, significantly improving the clarity and details of black-and-white images under low illumination.

The module is equipped with a 25Pin MIPI CSI-2 high-speed interface for stable and efficient data transmission. In production, it adopts COB process and AA (Active Alignment) manufacturing process—backed by Class 10/100 COB cleanrooms—to ensure excellent packaging consistency and optical precision. It has fully passed international authoritative certifications including CE, FCC, RoHS, and Reach—a testament to its recognized product quality that has fostered partnerships with Fortune Global 500 companies. Complemented by a 1-year replacement service and 10-year warranty, it provides long-term peace of mind for customers.

Product Advantages & Features

HD & High Frame Rate: With 4MP pixels, high resolution, and 90FPS/120FPS frame rate output, it not only meets the high-definition imaging needs of static scenes but also accurately captures fast-moving dynamic images without motion blur or smudging.

Outstanding Optical Performance: The F2.4 large aperture increases light input, the 4G+2P lens structure optimizes image quality, and the 117° large field of view (with low distortion) balances shooting coverage and image regularity. Its wide depth of field is suitable for multi-distance shooting scenarios.

Adaptive Imaging: Integrated with an IR cutter and dual IR filters, it switches between day and night modes automatically without manual intervention—delivering true colors during the day and clear details at night for stable all-weather imaging.

High-Speed Transmission: The 25Pin MIPI CSI-2 interface supports 4Lane data transmission, with a single Lane speed of up to 1Gbps. The 10-bit RAW format retains complete post-processing space, avoiding image quality loss and latency caused by compression.

Stable & Reliable Quality: Backed by advanced Class 10/100 COB dust-free workshops and AA active alignment process, the module ensures consistent production quality. The COB packaging process strengthens the connection between the sensor and circuit board, while the brand’s decades of industry experience guarantees mature technical support.

Customer-Centric Support: Offers one-stop OEM and customization solutions to flexibly cater to diverse application needs, paired with a 1-year replacement service and 10-year warranty for long-term customer reassurance.

Product Application

AI Security Monitoring: 24/7 surveillance for parks, warehouses, and retail. Wide-angle coverage and 90fps enable tracking fast-moving targets; IR switching delivers clear night vision; broad depth of field covers near-to-far monitoring needs.
Automotive Vision Systems: Core module for ADAS and dashcams. HDR and high frame rates manage extreme lighting changes; 117° wide view captures surrounding pedestrians and obstacles for enhanced driving safety.
Action Camera Applications: Perfect for sports and extreme recording. 1080P@120fps enables crisp slow-motion; manual focus adapts to dynamic scenes; day/night imaging suits outdoor environments.
UAV Aerial Photography: Lightweight design fits drones. 117° wide-angle captures aerial expanses; IR switching handles dawn/dusk and night flights; broad depth of field preserves scene layering.
Smart Terminals: Integrates into VR/AR, smart home cameras, and compact monitors. MIPI interface ensures fast data transfer; slim FPC design fits space-constrained devices; certified for global markets.
Industrial Inspection: Production line and equipment inspection. 4MP resolution and HDR reveal micro-defects; manual focus adapts to varying distances; day/night switching suits changing workshop lighting.

Brand Value Empowerment by SincereFirst

SincereFirst, with over three decades of unwavering dedication to optical innovation and camera module excellence, stands as a trusted global partner in the imaging industry. Rooted in advanced manufacturing capabilities—from Class 10/100 cleanrooms to precision AA processes—the brand has earned recognition through partnerships with Fortune Global 500 companies, a testament to its uncompromising product quality. Beyond cutting-edge technology, SincereFirst differentiates itself with customer-centric values: offering flexible one-stop customization, reliable long-term after-sales support, and solutions tailored to diverse industry needs. For every customer seeking high-performance, durable imaging solutions, SincereFirst delivers not just products, but peace of mind—upholding its commitment to empowering innovation across security, automotive, industrial, and consumer electronics sectors with integrity and expertise.

If you are looking for a endoscope camera module solution that combines performance, quality, and comprehensive support, contact SincereFirst today—let’s explore new possibilities in precision imaging together.
