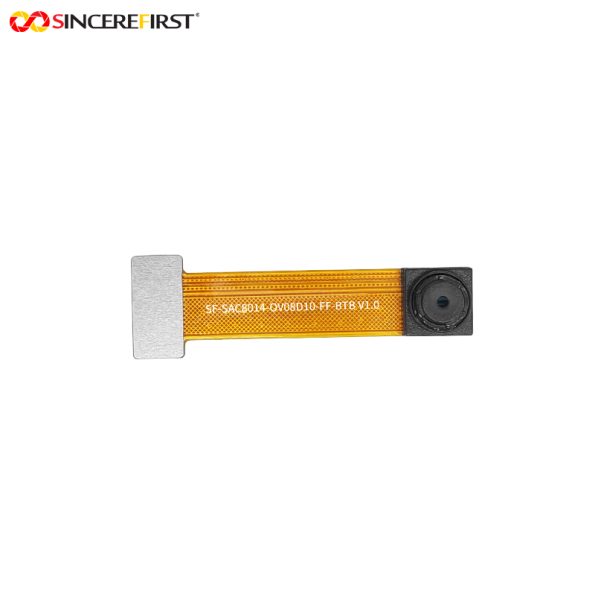

Industrial Vision 4K 30FPS UHD OV08D10 CIS MIPI Camera Module

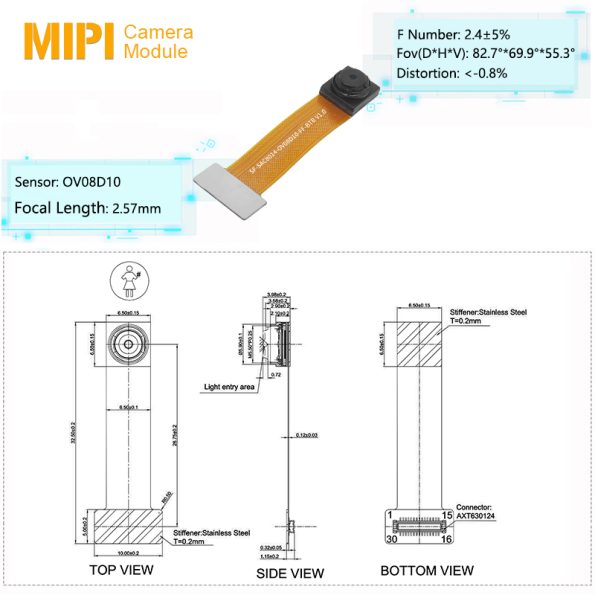

This is an industrial vision 4K 30FPS UHD OV08D10 CIS MIPI camera module, equipped with OmniVision Technologies’ high-end OV08D10 CMOS image sensor. Compared with the SmartSens SC8238 image sensor, the OV08D10 has a sensor size of only 1/4 inch, which not only achieves a pixel size of 1.12μm x 1.12μm but also supports 8MP pixels and outputs high-spec 4K@30FPS images, achieving the same performance with a smaller size. At the same time, its built-in PureCel® technology can greatly improve light-sensing efficiency and image purity, having more advantages in low-light performance and signal-to-noise ratio control. Combined with the 10-bit RAW output format, it can provide richer color gradations and post-processing space. It also has an HDR function, which can accurately capture more light and dark details and color levels. The module adopts a manual focus mode, equipped with an F2.4±5% aperture and a 2.57mm fixed focal length lens, with a depth of field ranging from 65cm to infinity, a field of view reaching D82.7°×H69.9°×V55.3°, and TV distortion ＜-0.8%, showing excellent control over image distortion. It is equipped with a MIPI CSI-2 high-speed interface to ensure high-speed transmission of image data; the production process is supported by SincereFirst’s Class 100-level dust-free workshops and adopts advanced COB (Chip-on-Board) technology and AA (Active Alignment) process, ensuring product consistency, reliability and stable high-quality production. Backed by over 30 years of profound experience in the optical device and camera module industry, the module has passed multiple international tests and certifications such as CE, FCC, RoHS, and Reach, complying with the access standards of mainstream global markets.
