OV2710 Sensor FHD Ultra Wide Angle CMOS Camera Module

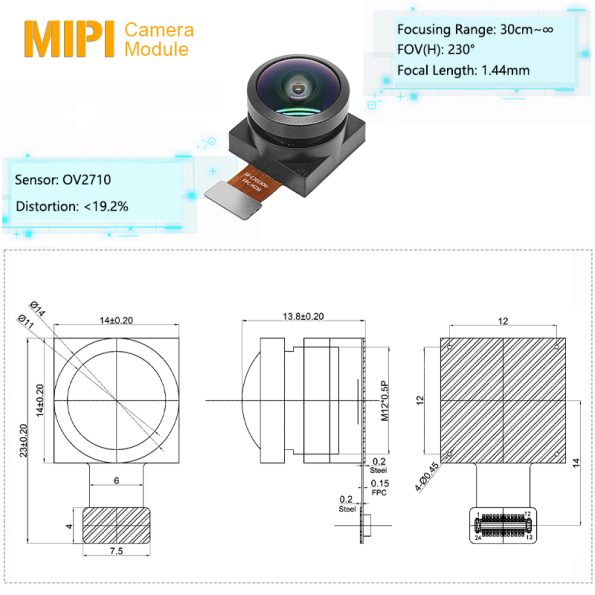

This OV2710 Sensor FHD Ultra Wide Angle CMOS Camera Module, a 230° panoramic ultra-wide angle CMOS imaging module with OV2710 sensor, adopts MIPI output and YUV image format, specially designed for devices requiring ultra-large field of view and panoramic blind-spot-free capture. It provides an integrated visual solution for security monitoring, automotive imaging, panoramic capture, intelligent robots and other fields, with ultra-large field of view capture and high environmental adaptability as its core design goals; it is equipped with OV2710 CMOS sensor, outputting YUV image format to balance color restoration and data compatibility. The optical system is paired with a 1.44mm focal length, F1.8 large aperture and 230° diagonal field of view, strictly controlling distortion below 19.2%. The 230° ultra-wide angle combined with F1.8 large aperture not only achieves nearly full-space coverage with a single lens, eliminating the need for multi-camera splicing and greatly reducing system costs, but also improves light intake in low-light environments, ensuring clear, transparent and complete panoramic images; the interface adopts 24Pin standard definition, integrating dual-channel MIPI (one of which is reserved as NC), I²C control, reset, power on/off and multi-domain power supply (3.3V analog / 1.8V interface), which can directly connect to mainstream embedded platforms, effectively reducing the development cycle and integration cost of terminal products; the structure adopts FPC flexible board + foam buffer design, which is thin, light and bendable, vibration-resistant, suitable for installation in various non-planar and narrow spaces. With the default configuration of image direction register, it can quickly output stable images after power-on; the module completes optical assembly in a Class 10/1000 COB clean room, achieving high-precision coaxial positioning of the lens and sensor through AA active alignment technology. Optical performance and structural dimensions are subject to full-process standardized quality inspection. Backed by over 30 years of optoelectronic device R&D and manufacturing experience, large-scale production bases and a monthly production capacity of tens of millions of units, it can support mass and high-consistency delivery needs, support full-range customization from 1MP to 200MP and one-stop OEM services, and its quality has been recognized by many leading industry enterprises. At the same time, it is equipped with a complete quality assurance system and 7/24 one-on-one technical service, forming a complete closed loop from R&D, mass production to after-sales service, fully meeting the strict requirements of panoramic vision equipment for field of view, structural adaptability and long-term reliability.
