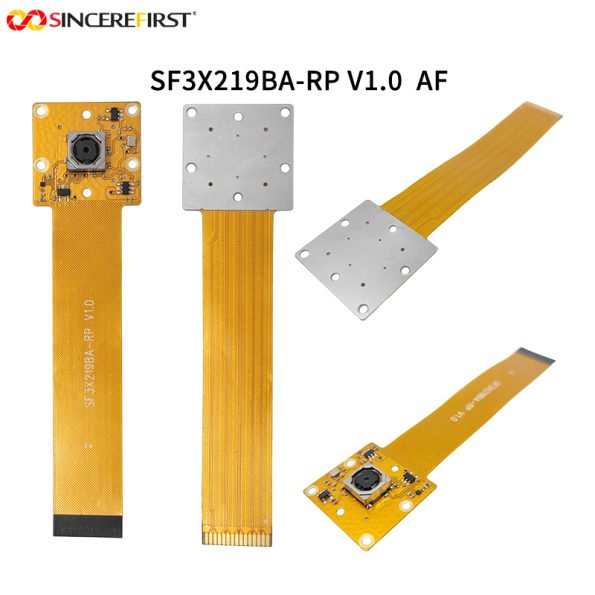

IMX219 CMOS Sensor 8MP MIPI CSI-2 Interface Auto Focus and Wide Angle Camera Module

This IMX219 CMOS Sensor MIPI CSI-2 Interface Auto Focus Camera Module is an 8MP auto-focus imaging module equipped with Sony back-illuminated IMX219 sensor, optimized for embedded development and high-precision machine vision applications. Adopting a 1/4-inch IMX219 image sensor, it delivers up to 3296×2480 resolution and outputs 10bit RGB RAW data for advanced post-processing; matched with 4P+IR optical lens, 2.92mm focal length and F2.4 aperture, the module presents excellent low-light performance. Featuring a 75.6° wide viewing angle and ultra-low TV distortion below -1%, it eliminates edge stretching and image distortion, perfectly suitable for precision measurement and object recognition. It supports full-range auto focus from 10cm to infinity to capture clear details for both close-range and long-distance scenes. The 15Pin standard MIPI CSI-2 interface integrates clock, data, I²C, reset and flash control signals to simplify secondary development. Reinforced flexible FPC structure improves bending resistance and shock resistance for installation in narrow and irregular spaces, providing an all-in-one high-definition image acquisition solution for embedded AI projects, smart terminals, industrial inspection and UAV applications.
