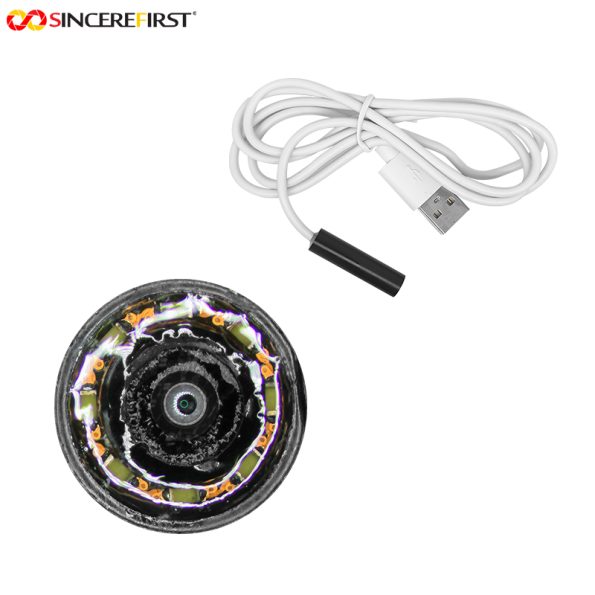

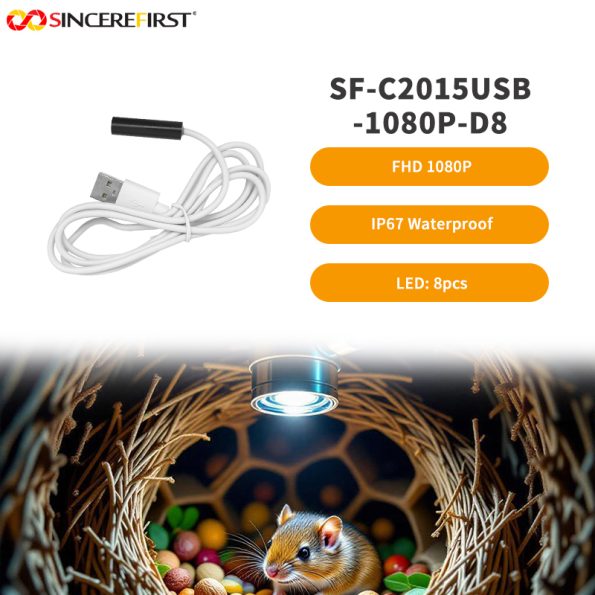

8mm Diameter 2MP 1080P HD Image IP67 Waterproof Integrate USB2.0 Endoscope Camera Module

This 8mm Diameter 2MP 1080P HD Image IP67 Waterproof Integrate Endoscope Camera Module is an all-in-one waterproof endoscope camera equipped with a reinforced steel sleeve. Oriented to short-range detection and micro acquisition in confined spaces, it features IP67 waterproof performance, low-distortion macro imaging and plug-and-play integration. Adopting a 1/5-inch 2MP CMOS sensor, it delivers 1920×1080 high-definition resolution; matched with an optical lens of 2.63mm focal length and F2.8 aperture, it offers a 60° diagonal field of view and fixed macro focusing range from 30mm to 50mm, with TV distortion controlled below 1%. The optimized optical configuration ensures clear and distortion-free imaging for tiny components, barcodes and texts, perfectly supporting precise observation and dimensional measurement. Equipped with a standard USB Type‑A interface and compliant with universal UVC protocol, it outputs YUV2 and MJPEG dual formats and runs steadily at 1080P@30fps across Windows, Linux, Android and macOS without extra drivers, significantly simplifying secondary development. The integrated steel protective sleeve enhances impact and wear resistance and reaches IP67 dustproof and waterproof rating, enabling stable operation in humid and dusty environments for industrial endoscopy, macro recognition, portable medical observation and embedded vision systems.
