IMX415 4K 8MP USB Autofocus Camera Module for Wide-Angle Imaging Devices
$1.00
IMX415 USB 2.0 UVC camera module with autofocus, H129° coverage and 4K video output for wide-angle imaging devices.
—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.
Introduction

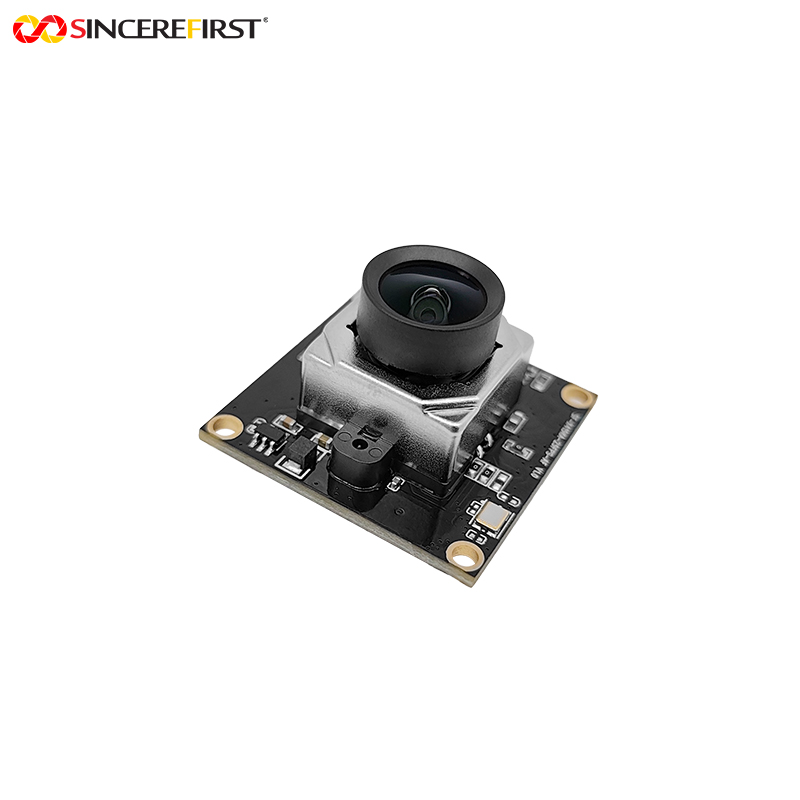

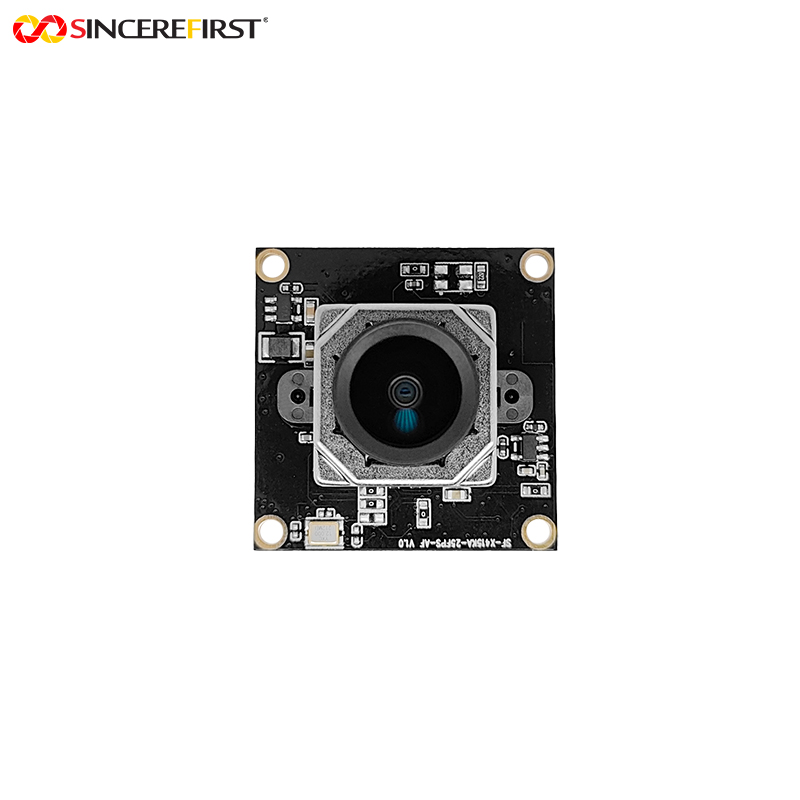

SF-X4154KA-25FPS-AF V1.0 is an 8MP USB 2.0 UVC camera module for devices that require broad horizontal coverage and autofocus across changing target distances. Its 32×32mm PCB provides a defined board-level integration route, while the H129° optical configuration captures a wide scene. The module may be evaluated for interactive terminals, observation equipment and embedded USB devices where working distance varies during normal use.
Applications in Real Devices
Interactive Imaging Terminals
Interactive terminals may need to capture people, objects or
documents positioned at different distances from the camera. The autofocus configuration provides a working range from 10cm to infinity, while H129° horizontal coverage allows the device to observe a broad area from a relatively short mounting distance. USB 2.0 UVC simplifies the host-side video connection compared with a direct RAW MIPI route. The final system should still validate host bandwidth, UVC software, autofocus behavior, enclosure opening and expected image quality under actual lighting.
Wide-Angle Observation Equipment
The module can be evaluated for equipment that needs broad scene visibility while the target distance changes during operation.
USB Embedded Devices
Its UVC route is relevant to embedded systems that prefer a standardized USB video connection rather than a host-side MIPI RAW pipeline.
Project Evaluation Guide
Consider This Model When
- The device requires autofocus between near and distant subjects.
- H129° horizontal coverage matches the scene.
- A 32×32mm USB camera PCB fits the enclosure.
- The host uses a UVC video workflow.
Confirm Before Sampling
- Host USB bandwidth and UVC software.
- Required video mode and image format.
- Autofocus control and response expectations.
- Minimum and maximum target distance.
- Enclosure opening and lens clearance.
- Cable length and connector orientation.
Choosing This Model Within the 4K USB Camera Module Series
SF-X4154KA-25FPS-AF V1.0 is the wide-angle autofocus route within the 4K USB Camera Module Series. It is relevant when the target distance changes and a 10cm-to-infinity focus range is required. Devices with a stable long-range target may instead consider SF-X4154KA-25FPS V1.0, while projects needing a slim elongated PCB and a different autofocus range may evaluate SF-OC2688-415-V1.0.
Related Models
IMX415 – SF-X4154KA-25FPS V1.0: Fixed-Focus alternative for stable target distances from 1m to infinity.
IMX415 – SF-OC2688-415-V1.0: alternative slim USB autofocus structure for devices with different board-space constraints.

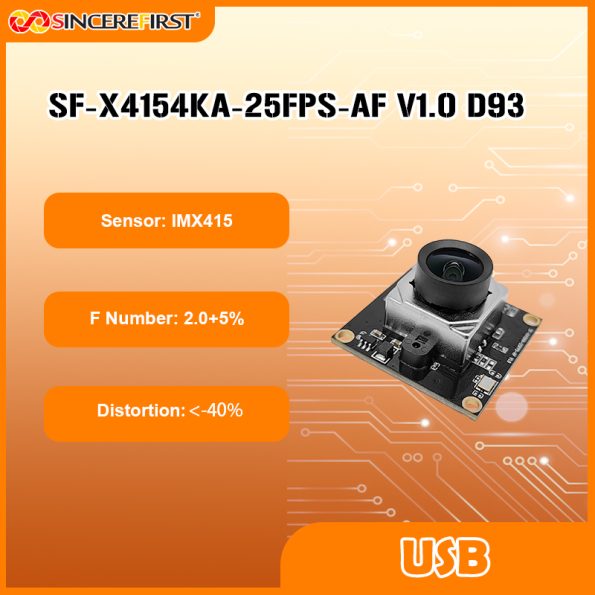

Key Specifications
Specification | Details |
Sensor | IMX415 CMOS |
Resolution | 8MP |
Maximum Video Output | 4K@25FPS |
Image Type | Color |

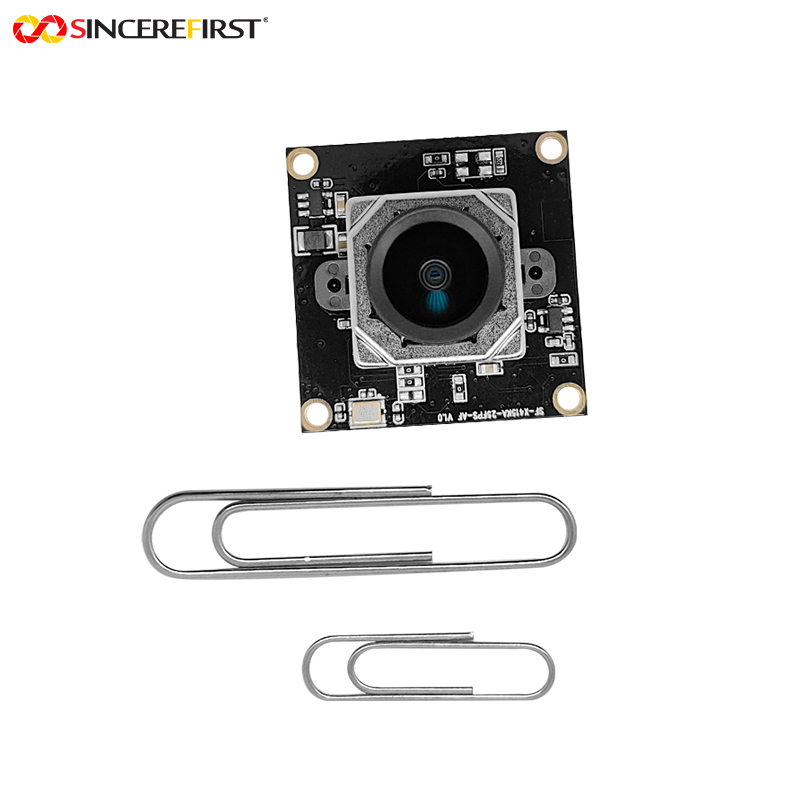

PCB Size | 32×32mm |
Interface | USB2.0，UVC |
Focus Type | VCM Autofocus |
FOV | H129° |
EFL | 2.92mm |
Focus Range | 10cm–Infinity |
F.No | 2.0 |

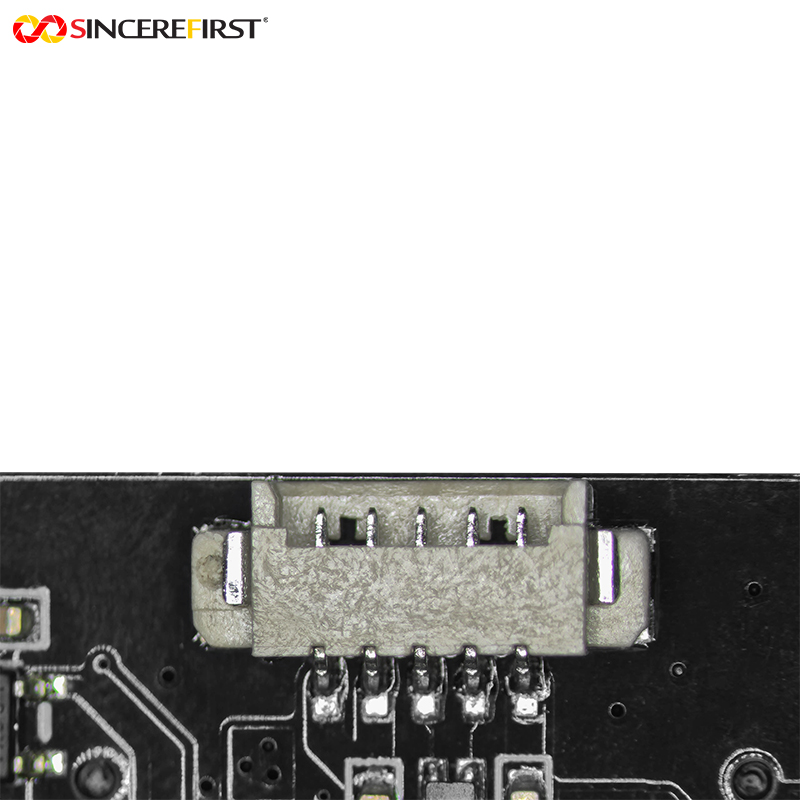

Connector | 5-pin, 1.25mm-pitch |
SincereFirst Customization

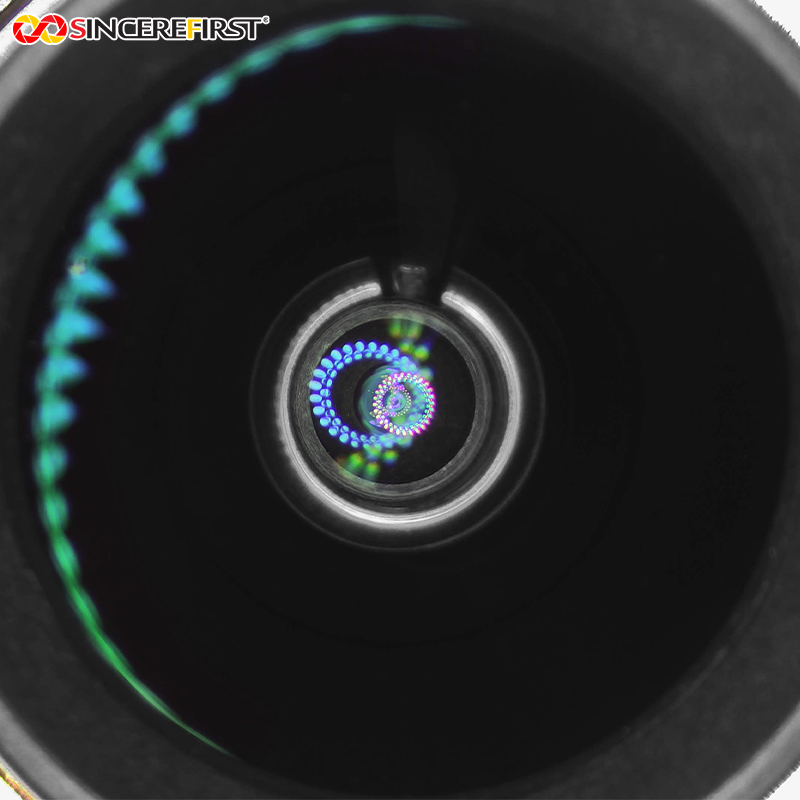

Lens and FOV
The standard H129° wide-angle lens can be evaluated according to the required scene width, enclosure opening and acceptable image-edge performance. Alternative FOV directions can be reviewed for devices that do not require such broad coverage.
Autofocus Configuration
The standard Autofocus route covers 10cm to infinity. Focus behavior, target-distance range and lens-control requirements can be evaluated according to the host software and actual application scene.
PCB and Mechanical Layout

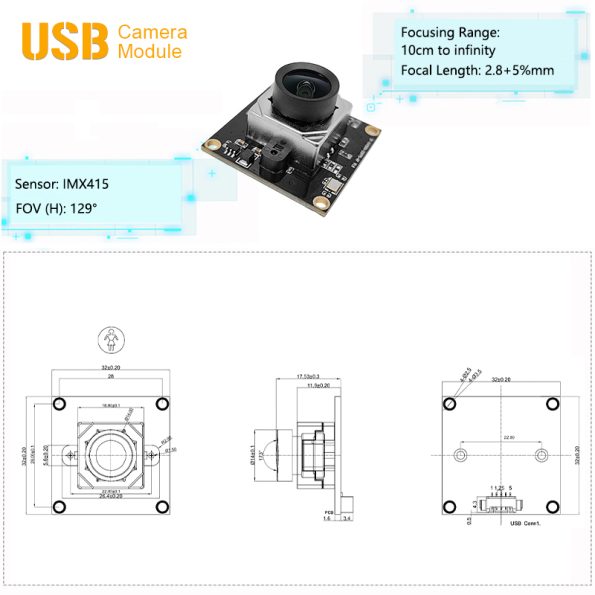

The 32×32mm PCB, mounting-hole position, lens height and connector direction can be reviewed against the internal device structure and available optical opening.
USB and UVC Integration
USB cable length, 5-pin connector definition, UVC operating environment and applicable 4K video mode can be evaluated with the host platform before sampling.
Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.
FAQ
Does the module use Autofocus?
Yes. The standard configuration uses Autofocus with a confirmed range from 10cm to infinity.
Is the module UVC-based?
Yes. It uses a USB 2.0 UVC video route. Host software and operating-mode compatibility should be checked before sampling.
What is the confirmed video output?
The model is confirmed for 4K@25FPS output. Narrative device suitability should still be evaluated according to bandwidth and host conditions.
Can the FOV be changed?
Alternative lens and FOV directions can be evaluated according to the target scene, enclosure opening and working distance.
Evaluate This Module for Your Device
Share your host system, UVC environment, working-distance range, target FOV, connector direction and available PCB space for project evaluation before sampling.
