IMX415 4K USB Fixed-Focus Camera Module for Fixed-Position Imaging Devices
$1.00
IMX415 USB 2.0 UVC camera module with Fixed Focus , H129° coverage and 4K video output for wide-angle imaging devices.
—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.
Introduction

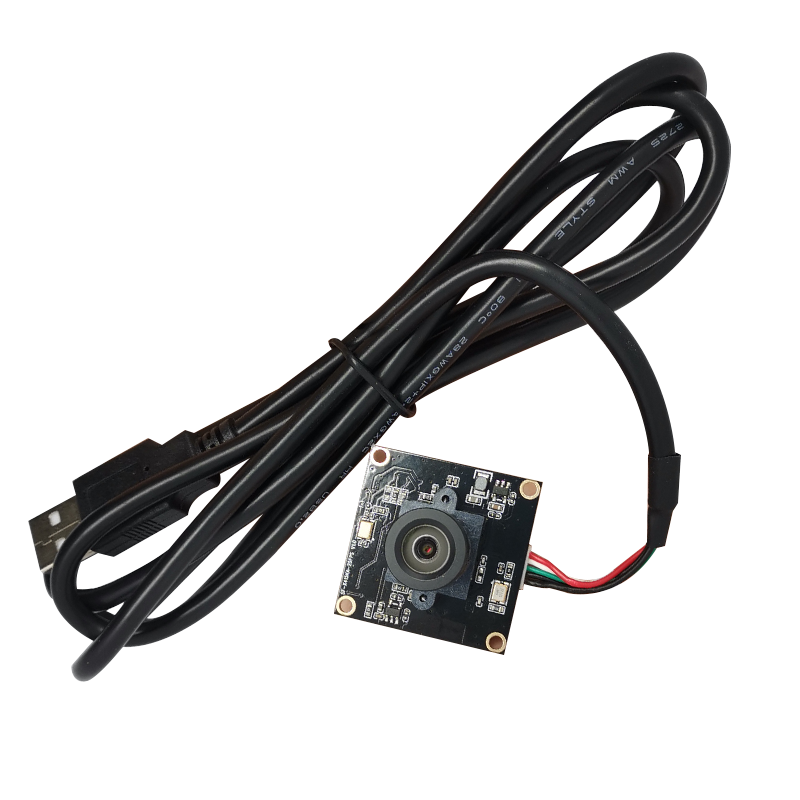

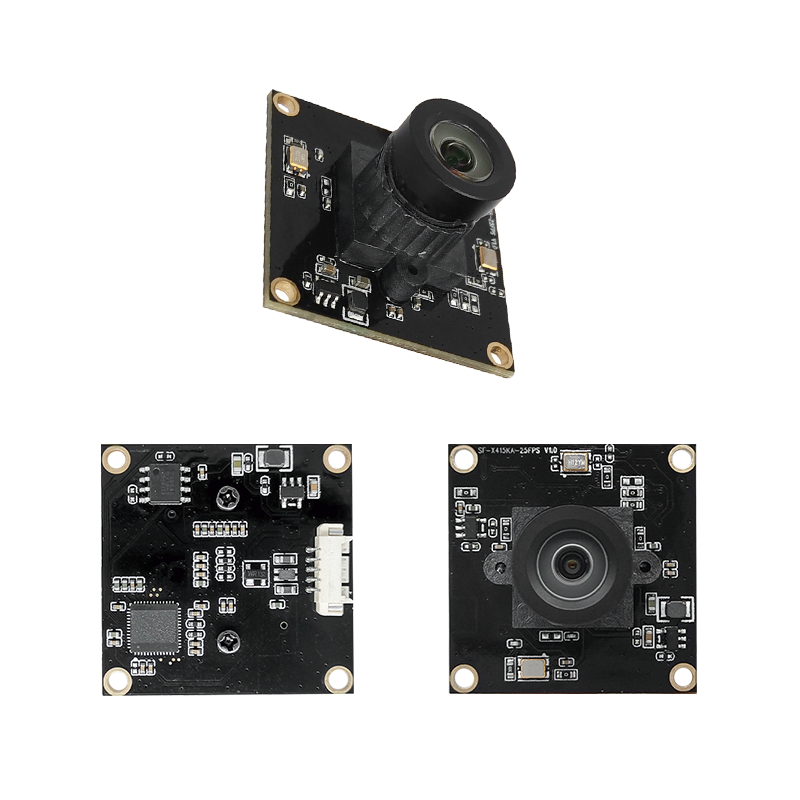

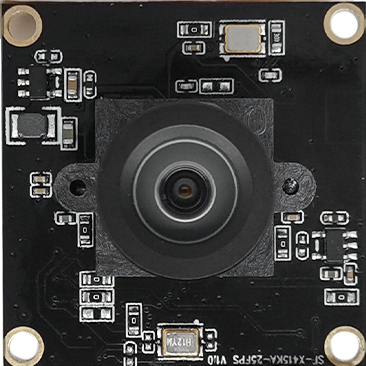

SF-X4154KA-25FPS V1.0 is an 8MP USB 2.0 UVC camera module for fixed-position devices with a defined long working distance. Its Fixed-Focus optical route covers H129° horizontally and is configured for targets from 1m to infinity. The 32×32mm PCB provides a compact board-level structure for observation equipment, interactive systems and embedded USB devices that do not require continuous autofocus during operation.
Applications in Real Devices
Fixed-Position Observation Equipment
Fixed-position observation equipment often uses a stable camera location and a predictable target range.In these projects, a Fixed-Focus route can reduce the need for autofocus control while keeping the optical setting consistent during operation.
The module provides H129° horizontal coverage and a working range from 1m to infinity, helping the device observe a broad area from a fixed installation point. Host USB bandwidth, UVC software, enclosure opening and actual target distance should be checked before the optical configuration is finalized.
Room and Equipment Monitoring Terminals
The wide horizontal view can be evaluated for terminals observing a defined area where subjects remain beyond the minimum focus distance.
Fixed Embedded USB Devices
The module is relevant to embedded devices that need a standardized UVC route and do not require near-range or continuously changing focus.
Smart Retail Analytics Terminals
Ideal for smart retail analytics, this compact UVC camera module features a 129° ultra-wide FOV and fixed-focus design for seamless, low-complexity integration into POS terminals and self-checkout kiosks.
Project Evaluation Guide
Consider This Model When
- The camera normally observes targets beyond 1m.
- The device does not require continuous autofocus.
- H129° horizontal coverage matches the installation.
- A 32×32mm USB PCB fits the enclosure.
Confirm Before Sampling
- Minimum target distance.
- Required horizontal and vertical coverage.
- Host USB bandwidth and UVC software.
- Enclosure opening and lens clearance.
- Cable and connector orientation.
- Whether the project requires Color or another evaluated image configuration.
Choosing This Model Within the 4K USB Camera Module Series
SF-X4154KA-25FPS V1.0 is the fixed-focus version of the wide-angle 32×32mm IMX415 USB route. It may be considered when the target distance remains beyond 1m and the device does not need autofocus control. Projects with changing target distances should compare SF-X4154KA-25FPS-AF V1.0. Projects requiring a slim elongated structure may instead evaluate SF-OC2688-415-V1.0.
Related Models
IMX415 – SF-X4154KA-25FPS-AF V1.0: Autofocus alternative for targets between 10cm and infinity.
IMX415 – SF-OC2688-415-V1.0: alternative slim USB structure for different internal layouts.

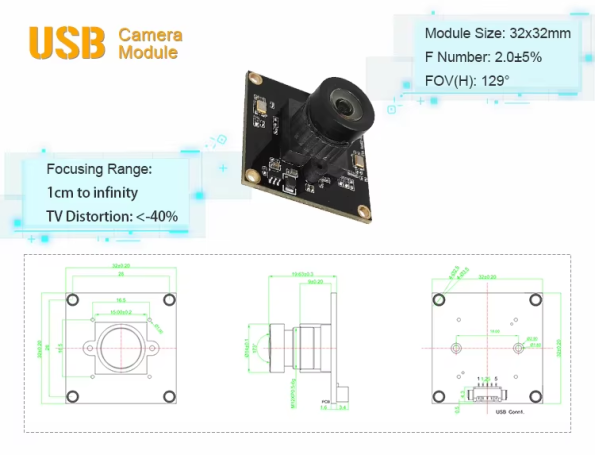

Key Specifications
Specification | Details |
Sensor | IMX415 CMOS |
Resolution | 8MP |
Maximum Video Output | 4K@25FPS |
Image Type | Color |

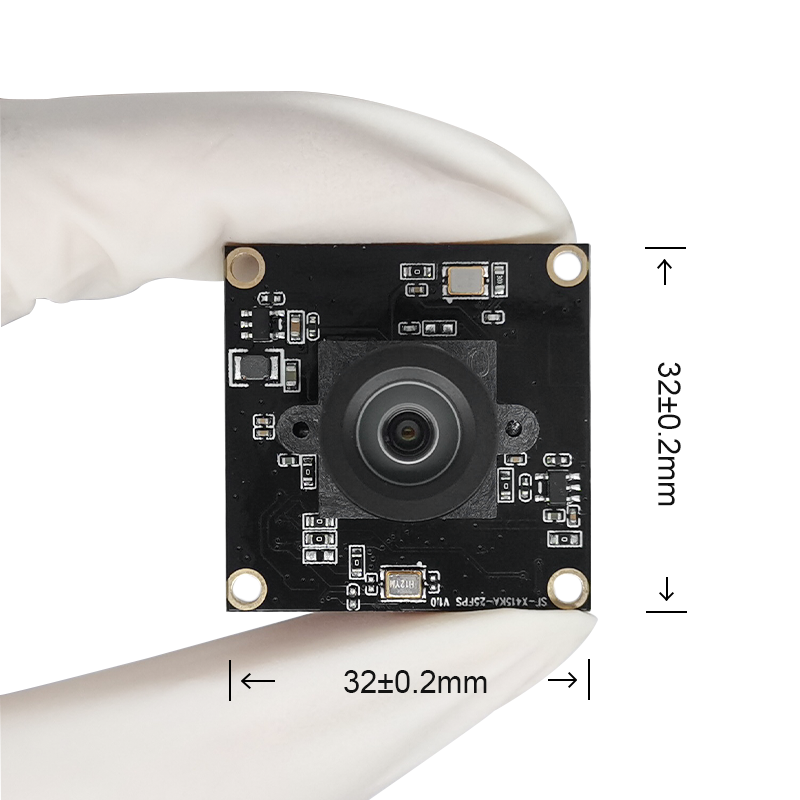

PCB Size | 32×32mm |
Interface | USB2.0，UVC |
Focus Type | Fixed Focus |
FOV | H129° |
EFL | 2.92mm |
Focus Range | 1cm–Infinity |
F.No | 2.0 |
Connector | 5-pin, 1.25mm-pitch |
SincereFirst Customization
Lens and FOV
The standard H129° fixed-focus lens can be evaluated according to the installation distance, scene width and enclosure opening. Alternative lens angles can be reviewed when the device requires narrower coverage or reduced edge distortion.
Fixed-Focus Configuration
The standard focus range is 1m to infinity. Focus position can be evaluated for projects using a more specific fixed installation distance or target plane.
PCB and Connector

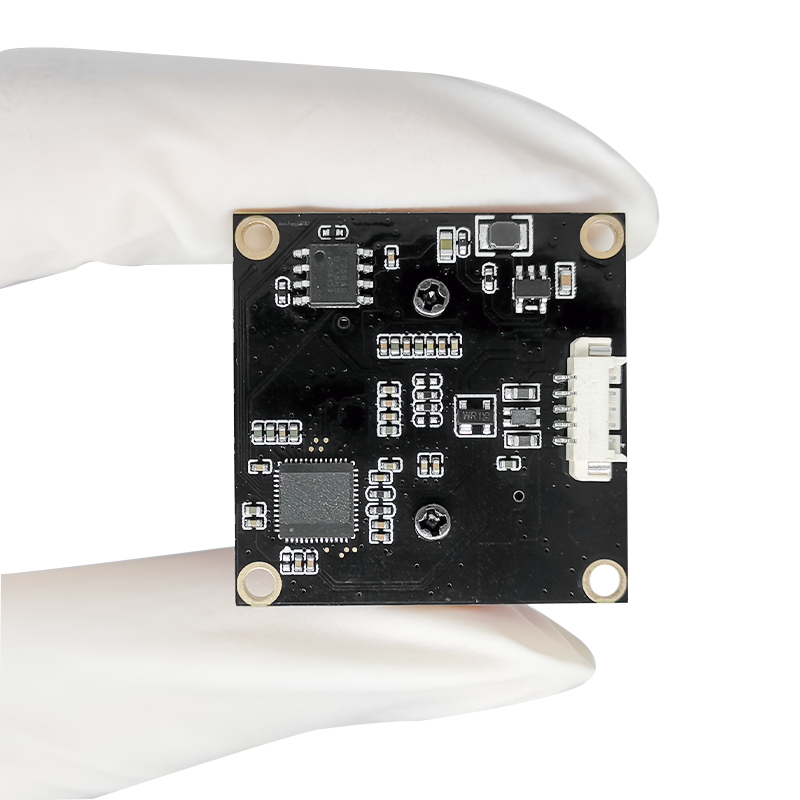

The 32×32mm PCB, mounting structure, lens height, cable exit and 5-pin connector direction can be coordinated with the host board and internal enclosure layout.
USB and UVC Integration
USB cable length, UVC host compatibility and applicable 4K video mode can be reviewed according to the host bandwidth, operating system and capture software.
Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.
FAQ
Does the module use Autofocus?
No. The standard configuration uses Fixed Focus with a confirmed range from 1m to infinity.
Is the module UVC-based?
Yes. It uses a USB 2.0 UVC video route. Host software and operating-mode compatibility should be checked before sampling.
What is the confirmed video output?
The model is confirmed for 4K@25FPS output. Narrative device suitability should still be evaluated according to bandwidth and host conditions.
Can the FOV be changed?
Alternative lens and FOV directions can be evaluated according to the target scene, enclosure opening and working distance.
Evaluate This Module for Your Device
Share your host system, minimum target distance, target FOV, enclosure dimensions, USB connection and mounting requirements for project evaluation before sampling.
