IMX415 HDR USB 3.0 HDMI Camera Module for High-Contrast Industrial Imaging
¥1.00
IMX415 camera module with HDR, USB 3.0 Type-C, HDMI, H.264, 4K@30FPS and 1080P@60FPS for high-contrast industrial imaging.
—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.
Introduction
SF-SQ8A625-86 is an 8MP dual-output camera module for devices that require HDR imaging, USB-based capture and direct HDMI display. It combines an IMX415 sensor, Fixed Focus and a 38 × 38mm dual-layer PCB with USB 3.0 Type-C and HDMI interfaces. The module supports 4K@30FPS, 1080P@60FPS and MJPG, YUY2 and H.264 output for industrial observation and smart display devices.
The specification confirms the IMX415 sensor, 1/2.8-inch format, 1.45μm pixels, 38 × 38mm structure, USB 3.0 Type-C, HDMI, UVC and the three output formats.
Applications in Real Devices
High-Contrast Industrial Observation
Industrial observation devices may capture reflective metal, illuminated displays and darker machine areas within the same frame. HDR provides a route for retaining more visible information across these brightness differences,
while HDMI supports local monitoring and USB supports capture or recording through a host system. The confirmed 1080P@60FPS mode can be evaluated when smoother Full HD motion is more important than maximum resolution. Final HDR performance depends on lighting, exposure settings, lens, filter, selected output format and display or host configuration.
Industrial Display Equipment
The HDMI interface can support local display equipment that needs a direct camera image, while USB 3.0 allows connection to a computer or embedded processing host.
Smart Imaging Terminals
The 38 × 38mm dual-layer structure can be evaluated for smart terminals that require Fixed Focus, UVC video, H.264 compression and a choice between 4K detail and higher-frame-rate Full HD output.
Project Evaluation Guide
Consider This Model When
- HDR is required for high-contrast or unevenly illuminated scenes.
- The device requires both USB 3.0 and HDMI interfaces.
- 4K@30FPS and 1080P@60FPS cover the required video modes.
- A Fixed-Focus 38 × 38mm dual-layer structure fits the enclosure.
Confirm Before Sampling
- Target HDR scene and expected brightness range.
- Whether USB, HDMI or both outputs are required.
- Required format and resolution for each interface.
- Main working distance, FOV and lens mount.
- Type-C and HDMI connector access.
- Dual-layer PCB height, housing and thermal limits.
Choosing This Model Within the 4K USB Camera Module Series

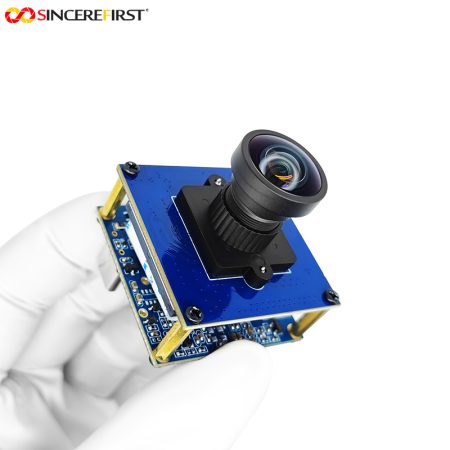

SF-SQ8A625-86 occupies the IMX415 HDR dual-interface position within the 4K USB Camera Module Series. It may be considered when a device needs local HDMI display, USB capture and both 4K and higher-frame-rate Full HD modes. Projects that do not require HDMI and prioritize 4K@60FPS may compare SF8A625-88. Projects requiring a larger 1/1.8-inch sensor, 2.0μm pixels and NIR capability may evaluate SF-SQ8A987-86.
Related Models
IMX415 – SF8A625-88: USB 3.0 Type-C-only Fixed-Focus alternative with HDR and 4K@60FPS MJPG/H.264 output.
IMX678 – SF-SQ8A987-86: USB 3.0 and HDMI alternative with a larger 1/1.8-inch sensor, 2.0μm pixels, STARVIS 2, HDR and NIR.
Key Specifications
Specification | Details |
Sensor | IMX415 CMOS |
Resolution | 8MP / 3840 × 2160 |
Maximum Video Output | 4K@30FPS / 1920 × 1080@60FPS |
Pixel Size | 1.45μm × 1.45μm |
PCB Size | 38 × 38mm |
Interface | USB 3.0 Type-C / HDMI,UVC |
Focus Type | Fixed Focus |
Output Formats | MJPG / YUY2 / H.264 |
Sensor Size | 1/2.8 inch |
Focus Range | 1cm–Infinity |
Sensor Technology | STARVIS |
Imaging Function | HDR |
SincereFirst Customization
Lens Mount and FOV
M12 and C/CS lens directions can be evaluated for the 1/2.8-inch sensor format. FOV and focal length should be matched to the observation area, installation distance and enclosure opening.
Fixed-Focus Configuration
The standard route uses Fixed Focus with a stated imaging distance from 1cm to infinity. The final focus position can be reviewed for a defined inspection plane or installation distance.
Dual-Layer PCB and Interface Routing
The 38 × 38mm dual-layer PCB, Type-C position, HDMI access, board height, mounting points and optional industrial housing can be coordinated with the device structure.
HDR and Video Output Modes
HDR settings, MJPG/YUY2/H.264 formats, 4K or Full HD mode selection, USB bandwidth and HDMI output can be reviewed with the target lighting, display and host environment.
Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.
FAQ
What is the main difference from SF8A625-88?
SF-SQ8A625-86 adds HDMI and supports 4K@30FPS plus 1080P@60FPS. SF8A625-88 is the USB-only alternative with 4K@60FPS.
Does the standard product support HDR?
Yes. HDR is a confirmed capability and should be evaluated under the real lighting and exposure conditions of the final device.
Does it support Autofocus?
No. The standard configuration uses Fixed Focus with a stated imaging distance from 1cm to infinity.
When should 1080P@60FPS be selected instead of 4K?
Consider 1080P@60FPS when smoother motion is more important than maximum image resolution and when the display or processing workflow is based on Full HD video.
Evaluate This Module for Your Device
Share your HDR scene, USB and HDMI requirements, preferred resolution, target FOV, working distance, host platform and enclosure limits for project evaluation before sampling.
