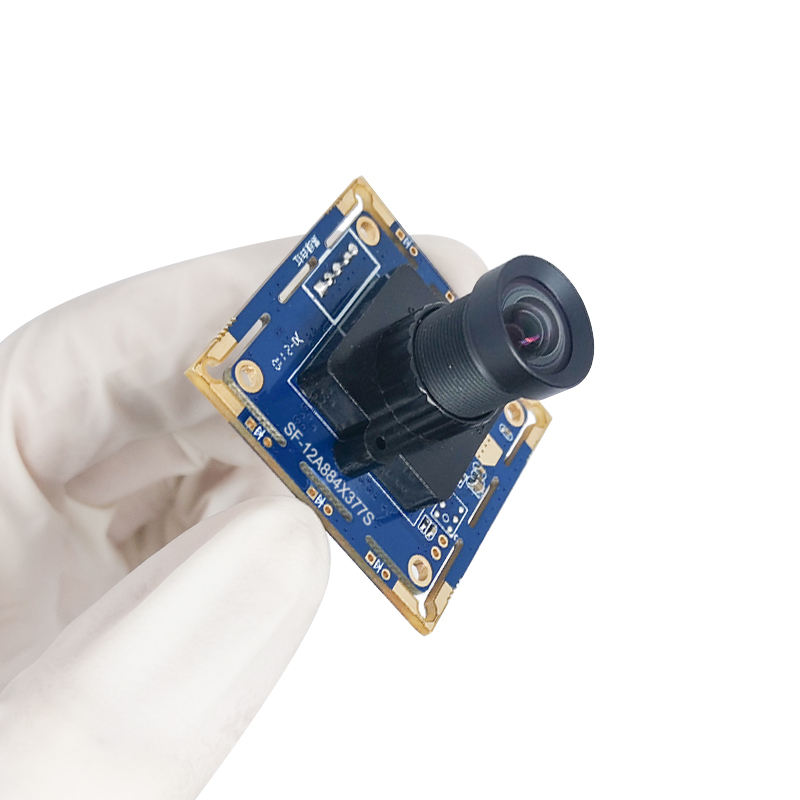

IMX377 12MP 4K USB 2.0 Camera Module for Fixed-Position Imaging
$1.00
IMX377 12MP USB 2.0 camera module with 3840 x 2880 image output, MJPG 4K@30FPS, Fixed Focus and a 38 x 38mm PCB for embedded imaging devices.
—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.
Introduction
SF-12A884X377S is a 12MP USB 2.0 camera module for embedded devices that require high-resolution image capture, a Manual-Focus optical route and internal terminal-based USB integration. It provides a 3840 x 2880 image mode and MJPG 4K@30FPS video, while the 38 x 38mm PCB and 4-pin terminal support OEM layouts where the external connector is positioned elsewhere in the device.
Applications in Real Devices
High-Resolution Document and Label Capture
Document and label-capture equipment often needs more image
detail than standard Full HD while operating at a predictable camera-to-target distance. The 12MP sensor, Manual-Focus lens and 3840 x 2880 image mode provide a practical route for capturing printed text, labels and coded information. MJPG 4K@30FPS supports live positioning and review, while the final lens, FOV, focus setting and illumination should be validated against the required capture area and smallest readable feature.
Fixed-Position Inspection Equipment
The Manual-Focus configuration can be evaluated for inspection systems with a stable target plane. Lens parameters and focus position should be matched to the component size, working distance and permitted enclosure opening.
Embedded USB Imaging Terminals

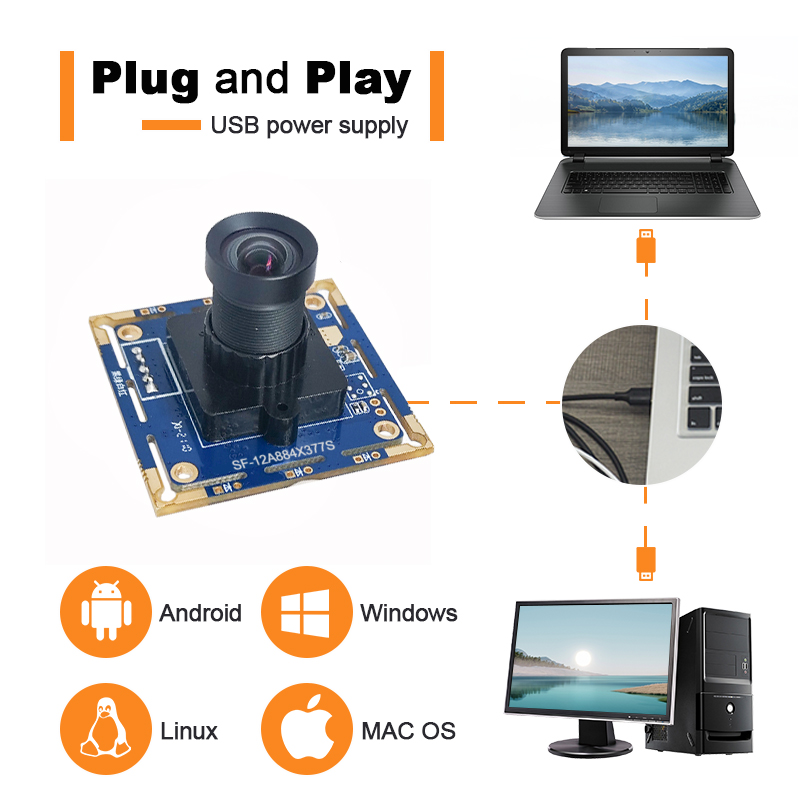

The USB 2.0 UVC route and 4-pin terminal suit devices that route the camera cable internally. Host bandwidth and the selected MJPG or YUY2 mode should be confirmed before sampling.
Project Evaluation Guide
Consider This Model When
- The project requires a 12MP USB camera module.
- MJPG 4K@30FPS is suitable for the live video requirement.
- A Manual-Focus lens matches a stable or predefined target distance.
- A 38 x 38mm PCB with an internal 4-pin terminal fits the enclosure
Confirm Before Sampling
- Target working distance, capture area and required FOV.
- Whether 3840 x 2880 image capture or 4K video is the primary mode.
- MJPG or YUY2 output requirements and host USB 2.0 bandwidth.
- Lens parameters, filter direction, cable length and terminal definition.
Choosing This Model Within the 4K USB Camera Module Series
SF-12A884X377S occupies the 12MP Manual-Focus USB 2.0 position within the 4K USB Camera Module Series. It is relevant when a project values a higher-resolution 3840 x 2880 image mode, a stable optical setting and internal terminal wiring more than Autofocus or USB 3.0 bandwidth. Projects needing VCM Autofocus and Type-C integration may compare SF13A886, while lower-resolution USB 2.0 projects can evaluate SF8A583-2.0.
Related Models
IMX577 – SF13A886: USB 3.0 Type-C Autofocus alternative with 12MP imaging, 4K@27FPS and an optional ManualFocus version. v
IMX274 – SF8A583-2.0: USB 2.0 Fixed-Focus alternative with a 38 x 38mm PCB, 4-pin terminal and MJPG 4K@30FPS output
Key Specifications
Specification | Details |
Sensor | IMX377 CMOS |
Resolution | 12MP |
Maximum Video Output | MJPG 3840 x 2160@30FPS |
Pixel Size | 1.55μm × 1.55μm |

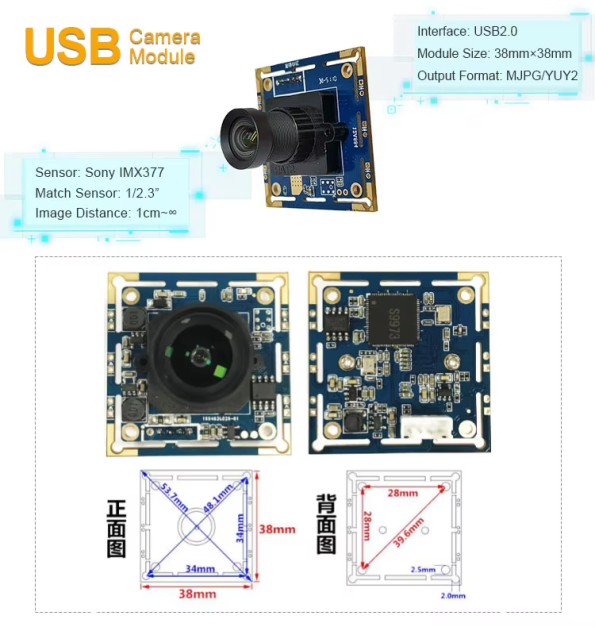

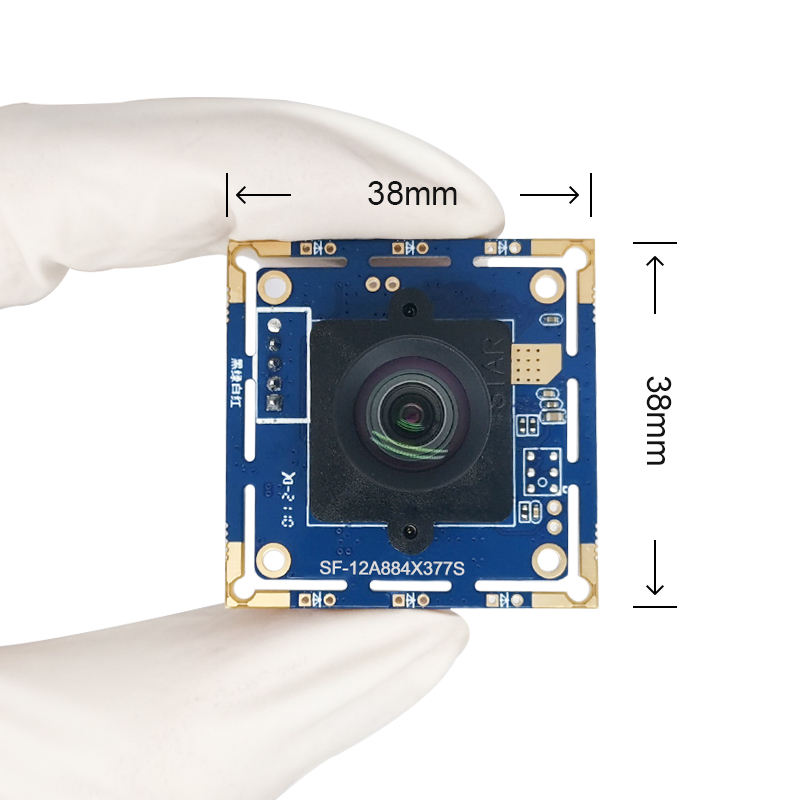

PCB Size | 38 × 38mm |
Interface | USB 2.0 High Speed,UVC |
Focus Type | Fixed Focus |
Output Formats | MJPG / YUY2 |
Sensor Size | 1/2.3 inch |
Focus Range | 1cm–Infinity |
Connector | 4-pin, 2.0mm terminal |
Lens Direction | Custom lens parameters can be evaluated |
SincereFirst Customization
Lens and FOV

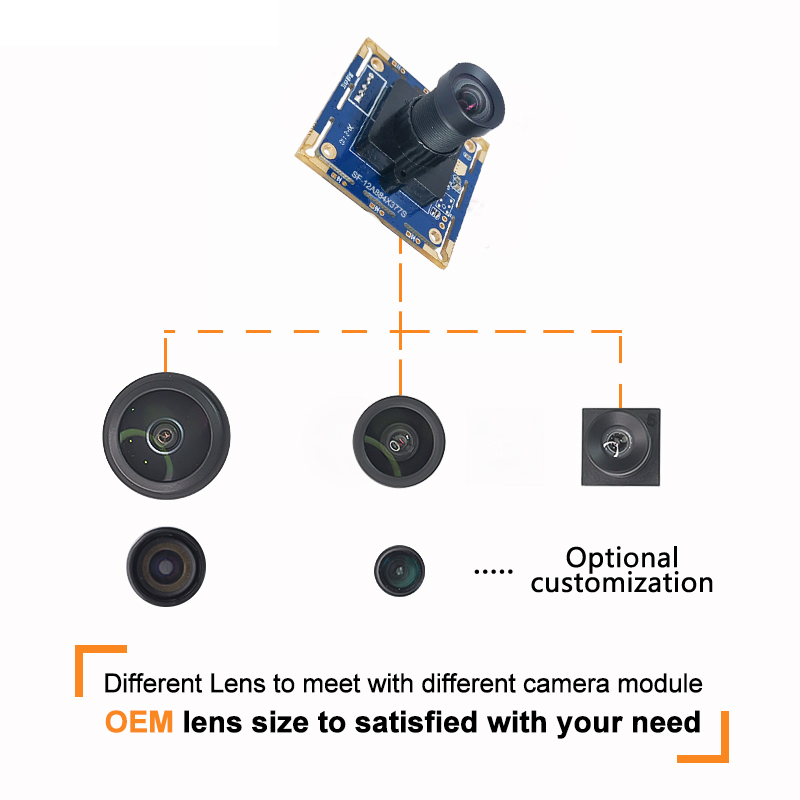

Manual-Focus lens parameters, focal length and FOV can be evaluated according to the capture area, target distance, enclosure opening and required edge performance.
Manual-Focus Confguration
The focus position can be set around a defned target plane. The required depth of feld should be reviewed against the nearest and farthest objects that must remain readable.
PCB, Terminal and Cable
The 38 x 38mm PCB, 4-pin terminal defnition, cable length and cable-exit direction can be coordinated with the host- board position and internal wiring path.
USB 2.0 and Output Modes
MJPG and YUY2 modes, UVC compatibility, resolution priorities and host bandwidth can be reviewed with the target operating system and capture software before sampling.
Final configuration should be validated with the actual host
platform, enclosure, optics, software, and lighting environment before sampling.
FAQ
Does 3840 x 2880 run at 30FPS?
No. The confrmed full-resolution MJPG mode is 3840 x 2880@20FPS. The confrmed 4K@30FPS mode uses 3840 x 2160 MJPG output.
Does this model use Autofocus?
No. It uses a Manual-Focus lens, making it more suitable for devices with a defned working distance or target plane.
Can the lens parameters be changed?
Yes. Lens parameters and FOV can be evaluated according to the required capture area, working distance and enclosure opening.
What should be provided before sampling?
Provide the target distance, capture area, preferred output format, cable and terminal requirements, available PCB space and host USB environment.
Evaluate This Module for Your Device
Share your target distance, capture area, lens requirement, preferred output mode, terminal defnition and available PCB space for project evaluation.
