Introduction

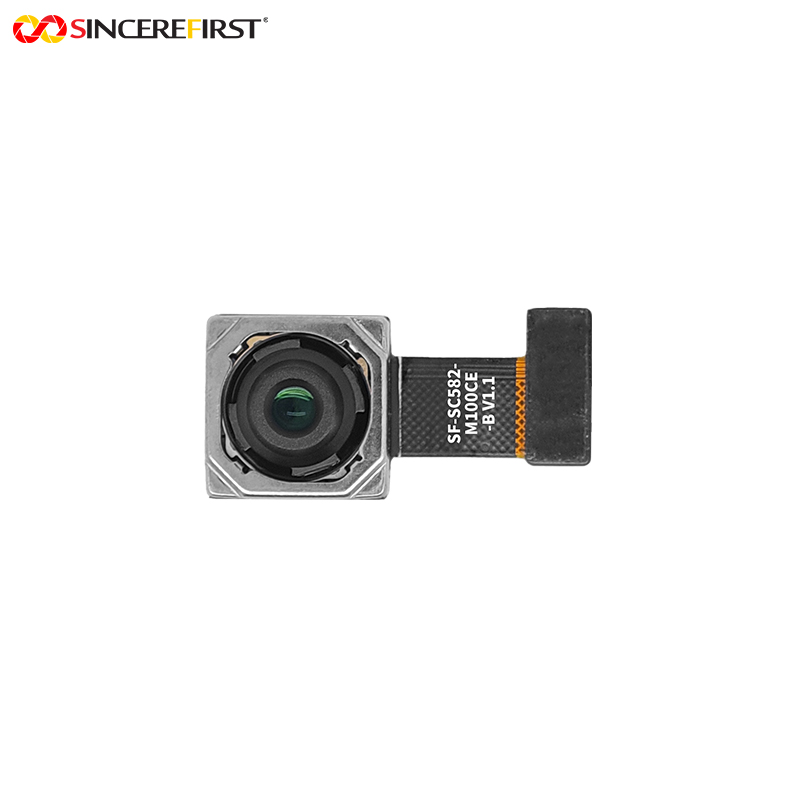

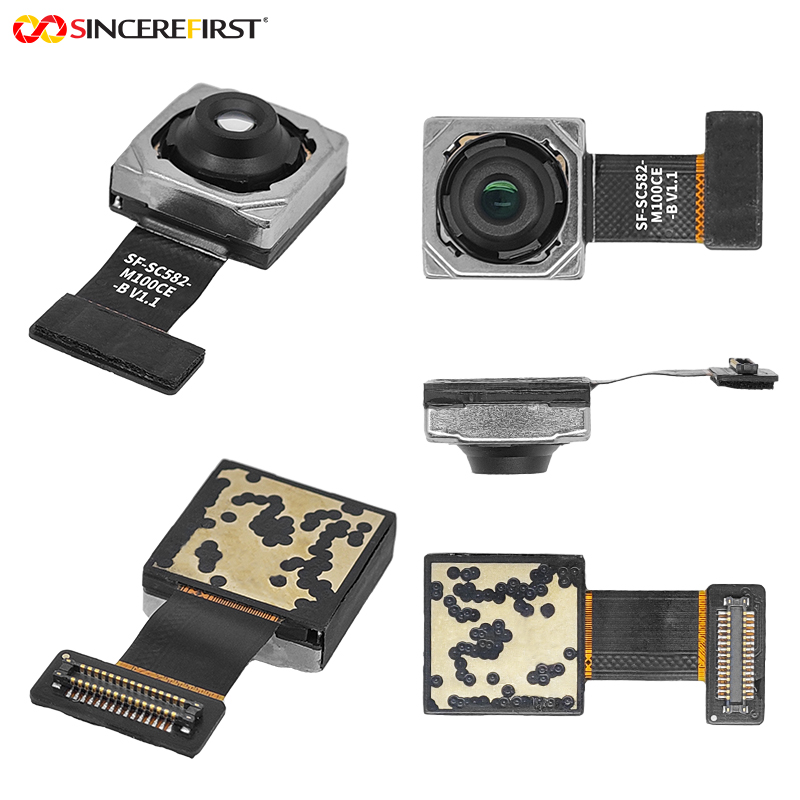

SF-SC582-M100CE-B is a 48MP MIPI camera module designed for embedded devices requiring direct sensor integration, high-resolution image capture and RAW image processing capability.

Based on the Sony IMX582 CMOS sensor, it supports 8000×6000 resolution with 4-in-1 pixel technology, PDAF and HDR. The module integrates VCM Autofocus and 10bit RAW output through a BTB MIPI interface, providing an evaluation direction for embedded platforms that require control over the imaging pipeline.

Applications in Real Devices

Embedded AI Vision Platforms

AI vision systems often require access to sensor-level image data for customized processing. The IMX582 48MP sensor combined with RAW10 output provides more flexibility for platforms performing their own ISP processing and image optimization.

Smart Devices with Custom Image Processing

Products requiring their own image-processing algorithms can benefit from RAW output, PDAF and HDR support. The final image quality depends on the complete imaging system, including ISP capability, lens performance and lighting conditions.

Compact OEM Camera Systems

The BTB MIPI structure supports camera integration into products where internal space, connector design and electrical compatibility are key considerations.

Project Evaluation Guide

Consider This Model When

The device requires direct MIPI camera integration.
RAW10 output is required.
The host platform includes ISP processing capability.
48MP image detail is needed.
Autofocus is required for variable working distances.
BTB connector integration matches the product design.

Confirm Before Sampling

Host processor MIPI compatibility.
MIPI lane configuration and electrical requirements.
RAW10 ISP support.
Required lens field of view.
Working distance and autofocus range.
Connector and FPC matching.
Image tuning requirements.

Choosing This Model Within the 8K Camera Module Series

SF-SC582-M100CE-B is the 48MP IMX582 MIPI autofocus direction within the 8K Camera Module Series. Choose this model when the project needs a high-resolution embedded camera with RAW output and direct processor connection.Compared with SF-SC582-T6568-B, both use the IMX582 sensor platform and provide similar imaging capabilities. The selection mainly depends on the required connector structure and mechanical integration requirements.

For projects requiring USB/UVC integration instead of sensor-level development, SF48A796, SF-SYA3580-586 or SF-ANVIS-48M provide a simpler integration path.

Related Models

IMX582 48MP MIPI Autofocus – SF-SC582-T6568-B
Consider this model when the project requires the same IMX582 platform but a different BTB connector configuration.

IMX586 48MP MIPI Autofocus Series
Consider this direction when the project prefers the IMX586 sensor platform with different optical and mechanical options.

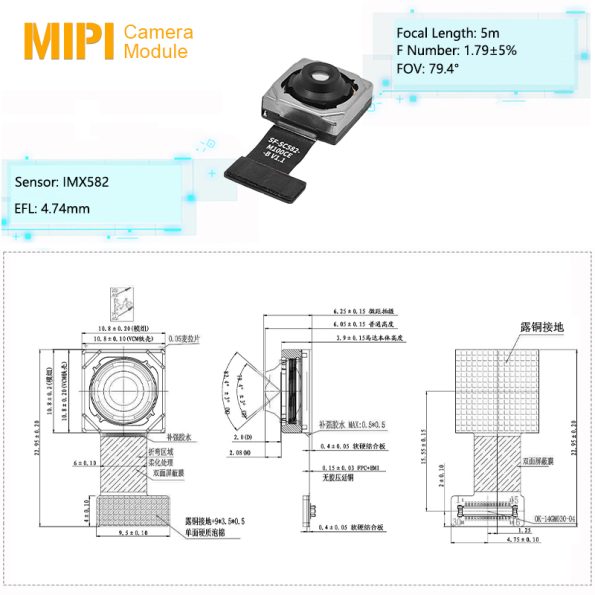

Key Specifications

Specification	Details

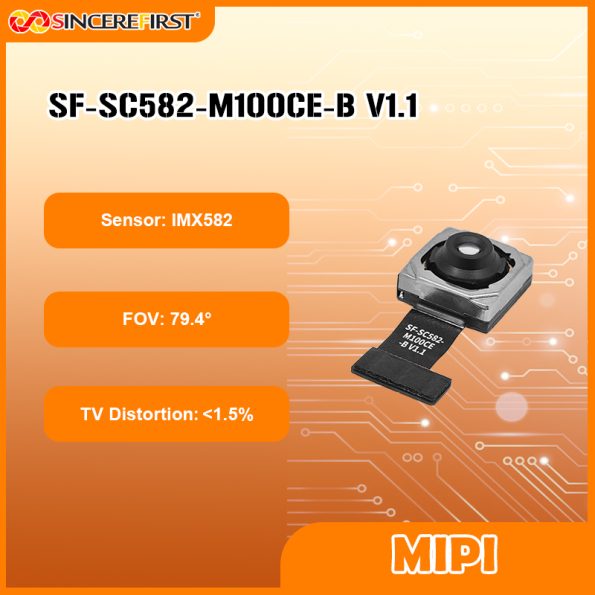

Model	SF-SC582-M100CE-B
Sensor	Sony IMX582 CMOS
Resolution	48MP / 8000 × 6000
Sensor Size	1/2 inch
Pixel Size	0.8μm × 0.8μm
Pixel Technology	4-in-1 Pixel
PDAF	Supported
HDR	Supported
Output Format	10bit RAW
Focus	VCM Autofocus
Field of View	D79.4°
Distortion	<1.5%

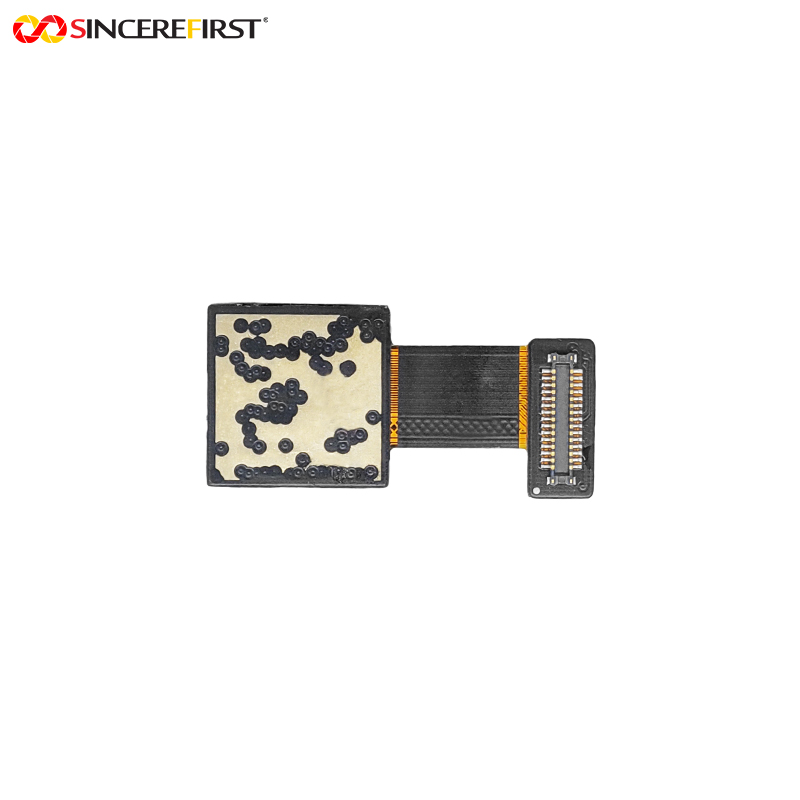

Interface	BTB MIPI

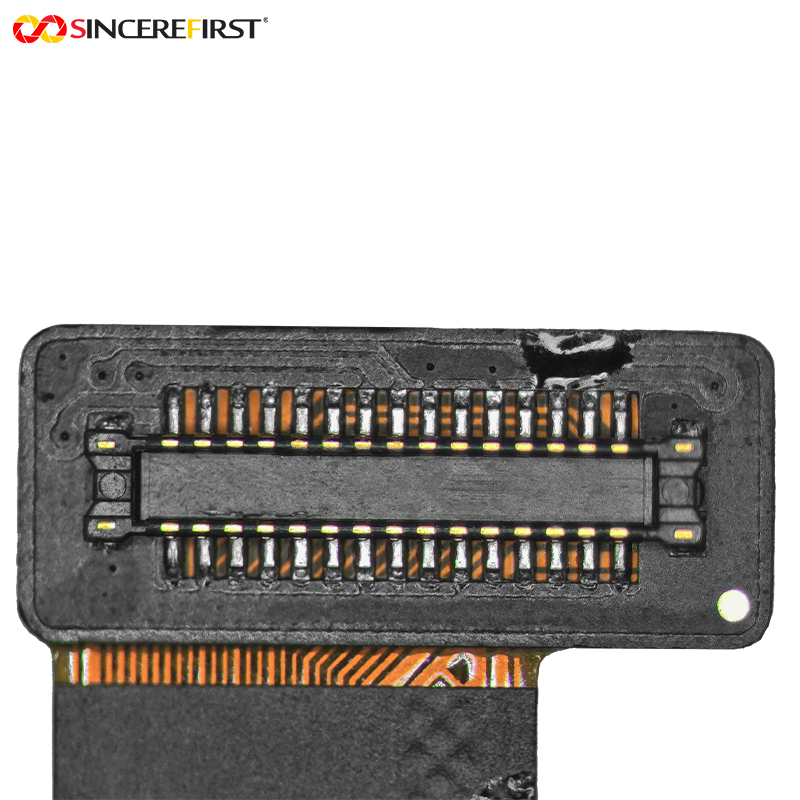

Connector	30Pin
Shutter Type	Rolling Shutter

SincereFirst Customization

MIPI Interface and Host Platform

The BTB MIPI interface can be evaluated according to processor compatibility, MIPI configuration and ISP requirements.

The final integration should consider both electrical connection and image-processing capability.

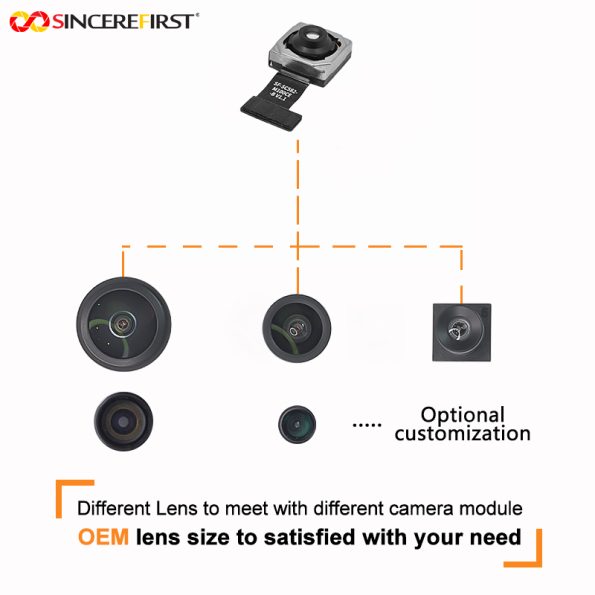

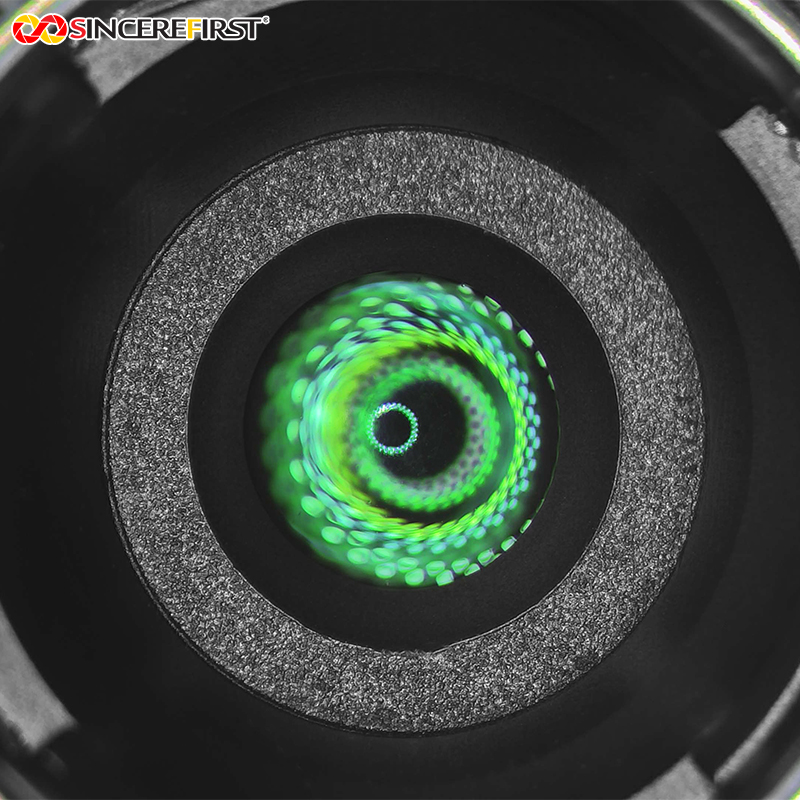

Lens and Optical Configuration

Lens parameters including field of view, working distance and distortion performance can be evaluated according to the device application.

Autofocus Configuration

VCM Autofocus can be evaluated according to the required focus range, target movement and operating conditions.

RAW Output and ISP Integration

RAW10 output supports customized image processing workflows. ISP tuning requirements can be evaluated according to the target processor and image-quality requirements.

Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.

FAQ

What is the main difference between SF-SC582-M100CE-B and USB 48MP camera modules?

The main difference is the integration method. This model is designed for direct MIPI connection and RAW image processing, while USB modules provide a more standardized camera interface.

Can this module work with any processor supporting MIPI?

No. The host processor must match the required MIPI configuration, sensor support and ISP processing requirements.

Why is RAW10 output important for embedded products?

RAW10 allows the device manufacturer to control image processing instead of relying only on a finished image stream, which is useful for products requiring customized image quality.

Does Autofocus mean no optical evaluation is needed?

No. Autofocus improves focusing flexibility, but lens selection, working distance and lighting conditions still affect final image performance.

How should I choose between the two IMX582 modules?

The selection mainly depends on the mechanical and electrical integration requirements, including connector structure, board design and host connection.

Evaluate This Module for Your Device

Share your host processor model, MIPI interface requirement, ISP capability, working distance, required FOV, autofocus requirement and mechanical constraints. SincereFirst can evaluate the suitable IMX582 MIPI configuration before sampling.
