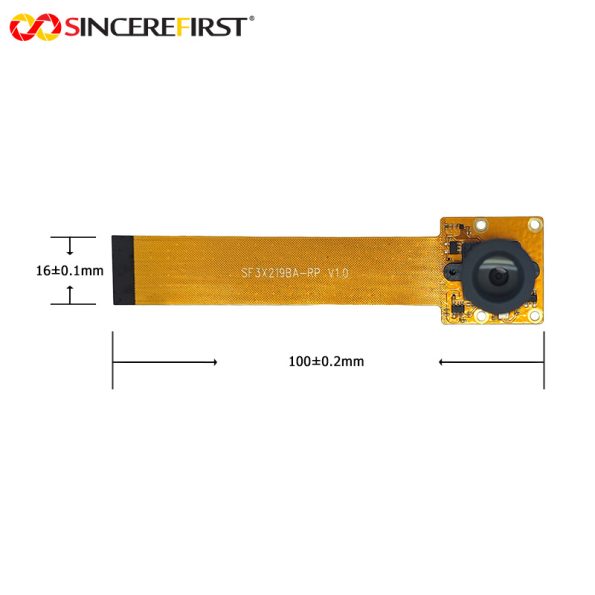

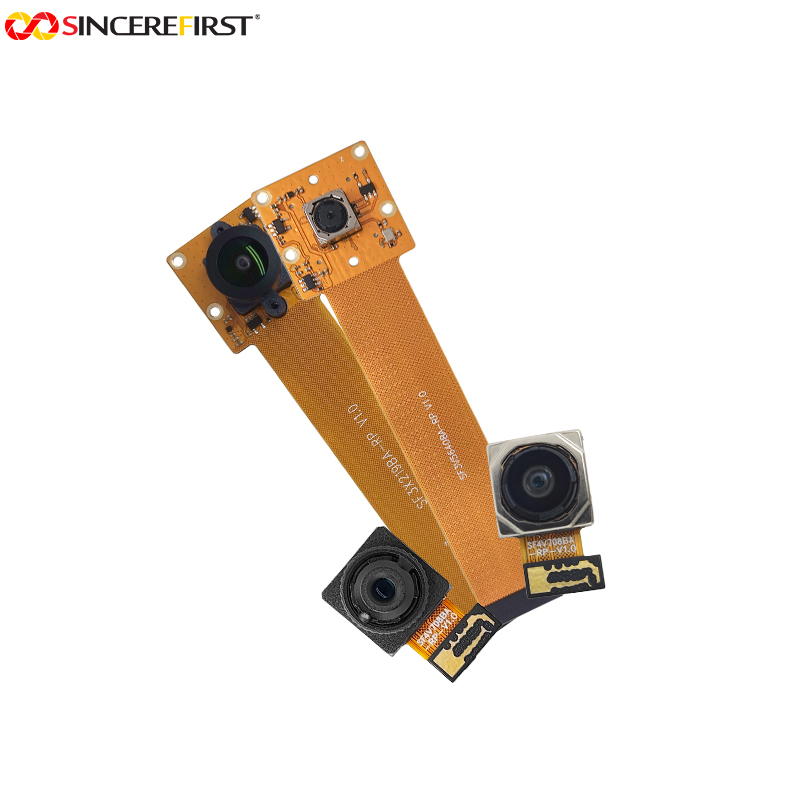

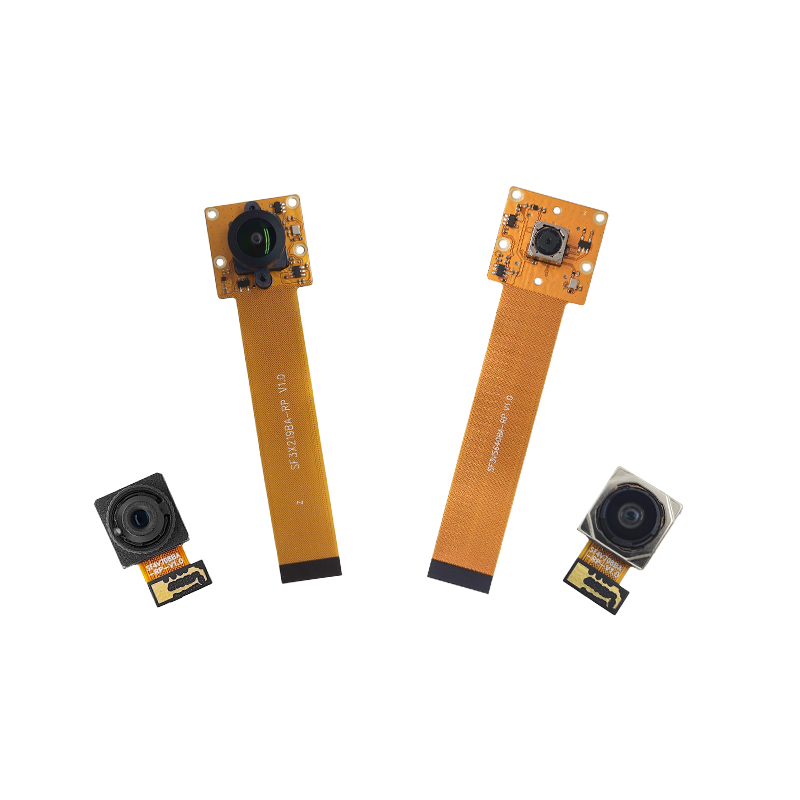

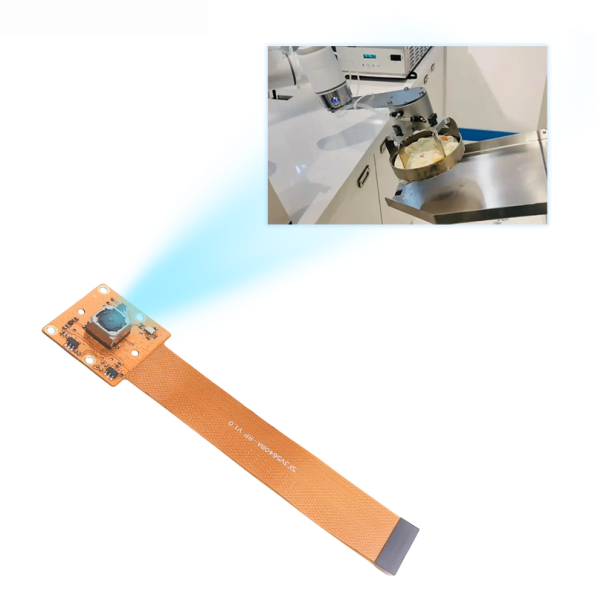

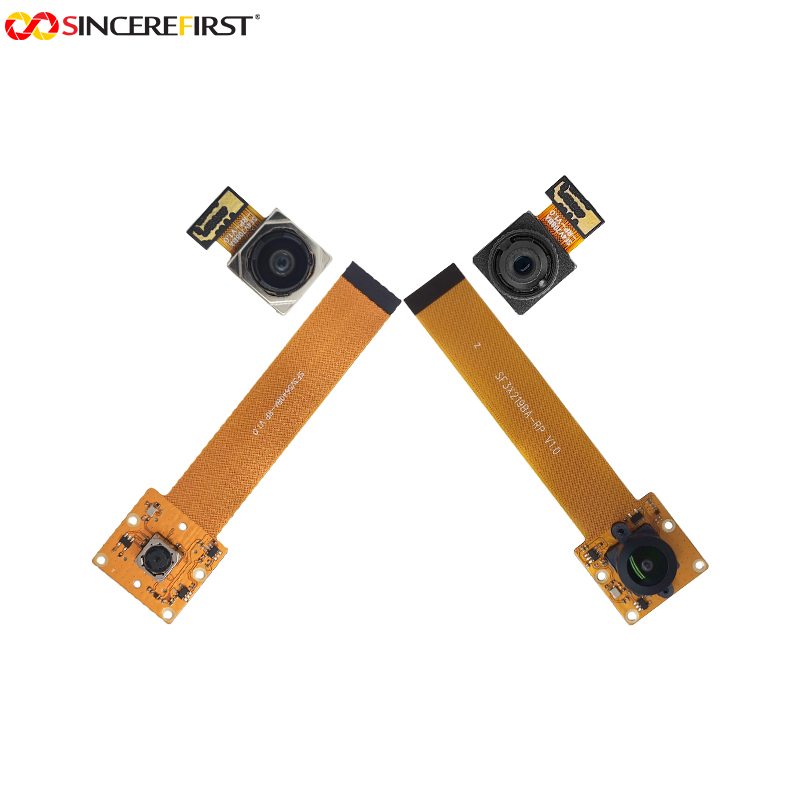

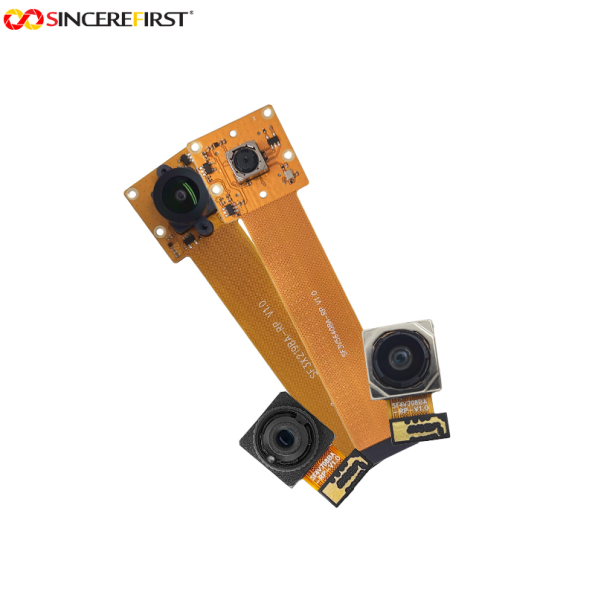

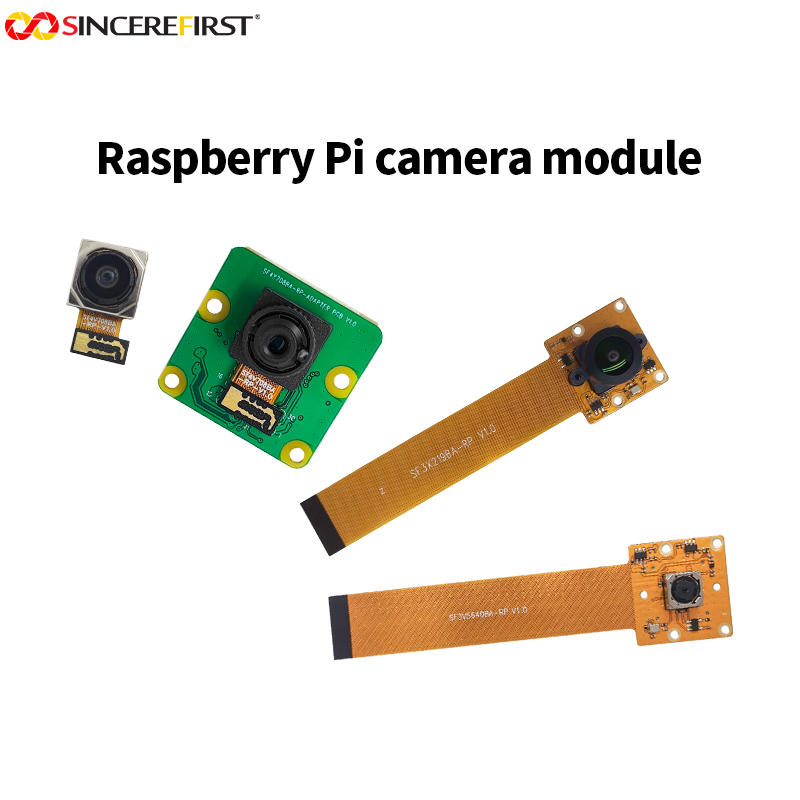

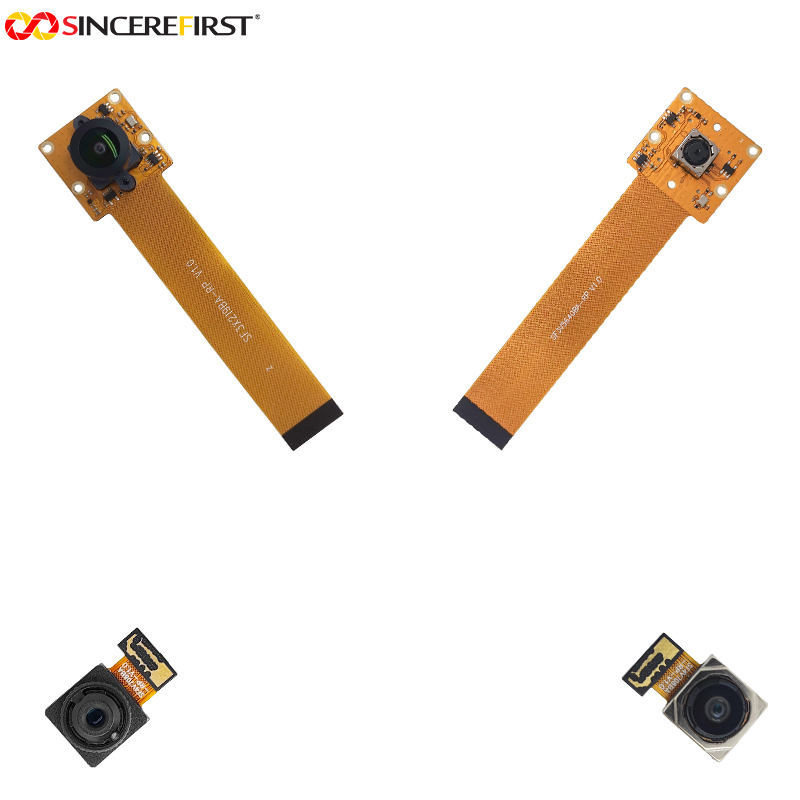

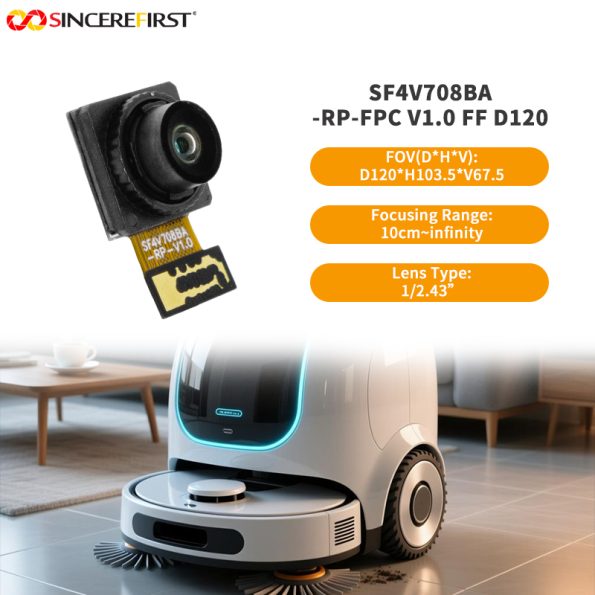

Raspberry Pi FPC Camera Module Series for Embedded Vision Devices

Description:

The Sony IMX678 is an advanced CMOS image sensor designed primarily for security and surveillance applications. It boasts an 8.4 MP resolution with a pixel pitch of 2.0 µm, offering high-quality imaging performance. Built on the STARVIS 2 platform, it integrates cutting-edge technologies such as DOL HDR, Clear HDR, and NIR Enhanced to enhance image clarity in various lighting conditions.

This 1/1.8-inch format sensor measures 8.86 mm diagonally and provides a square pixel array with 8.40 million effective pixels. Its efficient power consumption is supported by a triple power supply configuration, which includes analog 3.3 V, digital 1.1 V, and interface 1.8 V. This setup ensures optimal performance while minimizing energy use.

Incorporating these technologies, the IMX678 is ideal for high-performance MIPI camera module applications, especially in scenarios demanding clear and stable images. Its capability to function effectively at 60fps makes it a perfect fit for 8MP camera modules and surveillance systems that require fast frame rates. Additionally, its low power consumption makes it a suitable option for long-term surveillance applications.

With its ability to deliver outstanding image quality even under challenging conditions, the Sony IMX678 sensor also supports higher-end solutions such as 4K camera modules, making it a versatile choice for both basic and advanced security systems. This sensor’s combination of high resolution, powerful HDR capabilities, and low power requirements positions it as a premium option for modern surveillance and imaging solutions.

key  features:

High Resolution: The Sony IMX678 features an 8.4 MP resolution with a 2.0 µm pixel pitch
Imaging Technologies: It incorporates DOL HDR, Clear HDR, and NIR Enhanced technologies, even in low light environments also clear.
Power Consumption: The sensor operates with a triple power supply (3.3 V analog, 1.1 V digital, 1.8 V interface) and maintains low power usage.

FAQ

Q1: Are you factory or trade company? A1: We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.

Q2: What can you customize with our camera module? A2: FPC length, module shape, module head size, lens holder, imaging direction, pinout, connector, VCM, lens, Firmware and so on.

Q3: What is your camera module custom requirements flow? A3: Camera module / Board camera customized process insight With hundreds of camera module application, the standard camera modules can’t meet each specific requirement, so customization process comes with necessity and popularity, the hardware and firmware modification, including module dimension, lens view angle, auto/fixed focus type and lens filter, to empower the innovation. Non-recurring engineering completely covers the research, development, design for producing a new product. For saving the developing time and cost, SINCERE FIRST provides the custom camera module service based on our standard camera module solution. · Customized requirements flow 1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff. 2.Communication or Meeting 3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you according to your needs. 4.Sample Development 5.Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress. 6. Sample Testing 7. Test and age on your application, feedback test results, no need to modify, mass production.

Q4: What operating system does your camera module support? A4: Our camera module can support Windows, Mac-IOS, Android and Self-developed Software.

Q5: Which software / development platform do your camera modules support? A5: Arduino, ESP32, Raspberry Pi, NVIDIA, Ambarella, RK(Rockchip), MTK(MediaTek Inc.), Qualcomm, ATI  Q6: How long does it take to develop a new camera module? A6: Typically around 7–10 days from start date.
