Product Introduction:
Product Advantages & Features
- HD Image Quality: Leveraging the 2MP full HD resolution of the OV2718 sensor, it can output extremely detailed images. The trinity of 2.8μm large pixels, OmniBSI™‑2 technology, and HDR functionality significantly improves low-light sensitivity and dynamic range, delivering images with rich details.
- Reliable Manufacturing Process: Adopting COB process and AA manufacturing in a Class 10/100 dust-free environment ensures both compact module structure and enhanced product quality stability; international certifications including CE, FCC, RoHS, and Reach enable barrier-free integration and export to security equipment worldwide.
- High-Efficiency Transmission: The MIPI CSI-2 serial interface features high-speed data transmission characteristics, stably transmitting 12-bit RAW format original image data, compatible with interface protocols of most terminal devices and adaptable to secondary development needs.
- Superior Imaging Performance: The OmniBSI™-2 back-illuminated technology significantly improves quantum efficiency. Combined with the F2.2 large aperture, it can still output clear color images in low-light environments as low as 0.1lux. The hardware HDR function supports multi-frame synthesis, effectively suppressing overexposure in strong light and loss of dark details.
- Leading Data Precision: 12-bit RAW format output retains 4,096 levels of grayscale information, four times the color precision of mainstream 10-bit RAW (1,024 levels), providing greater tuning space for backend ISP algorithms.

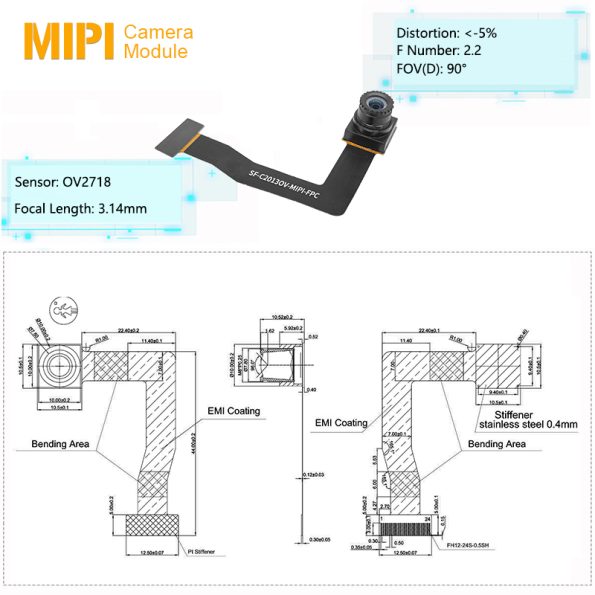

- Flexible Optical Design: The 90° wide-angle field of view enables a single camera to cover larger surveillance areas, reducing deployment quantity; manual focus supports all-scene clear imaging from 1cm macro to infinity, adapting to various focal length requirements.
- Trusted Manufacturing & Service: Backed by over 30 years of optical expertise and partnerships with Fortune Top 500 companies, offering 1-year replacement service and 10-year warranty with comprehensive after-sales support.
Product Application
- Home Security Surveillance: Suitable for monitoring key home areas such as doors, windows, balconies, and courtyards, covering the entire household. The low-light imaging and HDR functions ensure monitoring effects during nighttime and when indoor/outdoor lighting changes. Manual focus can accurately lock on key areas.
- Commercial Security: Applicable to scenarios such as supermarkets, convenience stores, office buildings, and shops. It clearly records key information such as personnel flow and transaction processes, covering core areas like cash registers, shelves, and entrances/exits, assisting in commercial security management and dispute tracing.
- Industrial and Warehouse Monitoring: Adaptable to industrial scenarios including factory workshops, warehouses, and logistics hubs. It copes with needs such as uneven industrial lighting and night duty, capturing personnel operations and cargo flow in production areas and warehouse corridors, supporting industrial safety control and production tracing.
- Smart Home: Used in smart home products such as smart door locks, video intercoms, and home security hosts. Its compact design facilitates device integration, meeting the quality requirements of smart home products and providing users with a visualized security experience.
- Automotive Auxiliary Cameras: Suitable for in-vehicle security needs such as ride-hailing cars, trucks, and RVs. It captures the status of in-vehicle passengers or the external driving environment, meeting the stringent operating conditions of automotive equipment and supporting in-vehicle security monitoring and trip tracing.
Brand Value Empowerment by SincereFirst
With over three decades of dedicated expertise in optical devices and camera modules, SincereFirst stands as a trusted partner to Fortune Top 500 companies worldwide. Our commitment to quality is reflected in every aspect—from Class 10/100 dust-free production environments and precision AA alignment processes to comprehensive after-sales protection offering a 10-year warranty. This OV2718 Mini MIPI Camera Module embodies our mission: delivering not just superior imaging components, but complete peace of mind through reliable performance, flexible customization, and unwavering support. Choose SincereFirst, where optical excellence meets enduring partnership.
If you are looking for a endoscope camera module solution that combines performance, quality, and comprehensive support, contact SincereFirst today—let’s explore new possibilities in precision imaging together.
