Product Introduction:

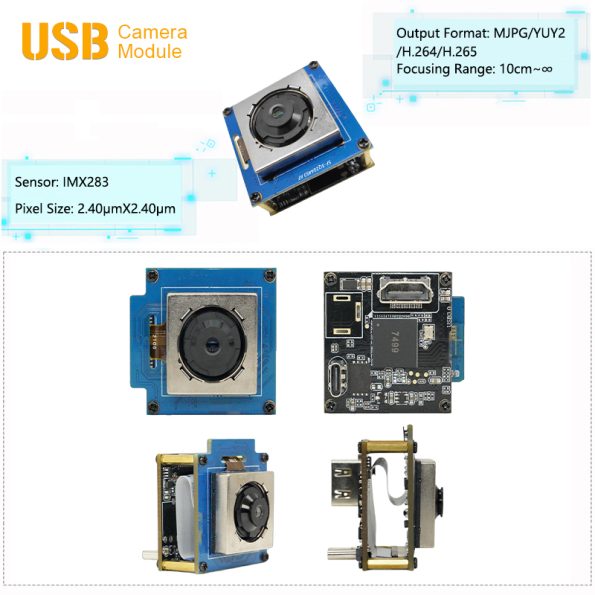

This is the AI Vision Sony IMX283 CMOS 20MP High-Pixel 4K Auto-Focus USB Camera Module launched by SincereFirst. It is equipped with the Sony IMX283 CMOS color image sensor, featuring a pixel specification of 20MP and capable of outputting 3840×2160 4K ultra-high-definition resolution. Combined with a 1-inch large-size sensor and a pixel size of 2.4μm×2.4μm, it can effectively improve light intake and the ability to capture image details. In terms of frame rate performance, it supports a maximum of 20FPS, ensuring smooth and non-jittery images under 4K image quality.
In terms of output formats, the module is compatible with multiple mainstream formats including MJPC, YUY2, H.264, and H.265, meeting transmission and storage needs in different scenarios. For focusing performance, it supports a wide focusing range of 10cm~Infinity (infinite distance) and is equipped with an auto-focus function, which can quickly lock onto a clear image without manual adjustment. The lens integrates a 650nm IR filter, which can effectively filter out infrared interference and restore true colors.
In terms of hardware design, the module has a compact size of only 38mm×38mm, making it portable and easy to integrate. It adopts a Type-C interface and supports USB3.0 high-speed transmission rate to ensure fast transmission of 4K image data. In terms of compatibility, the module supports the UVC protocol and can be seamlessly adapted to most mainstream operating systems such as Raspberry Pi, Windows, Linux, and MacOS. It also provides SDK development support for convenient secondary development. In terms of production process, relying on SincereFirst’s Class 10/100 COB cleanroom, it adopts SMT (ROHS) environmental protection process and advanced AA (Active Alignment) process. This not only ensures product consistency and stability but also guarantees the high quality of each module with strict production standards, meeting the high requirements for product quality in the global market.
Product Advantages & Features
- Ultra-High-Definition Image Details: With 20MP pixels matched with 4K resolution, combined with a 1-inch large sensor and 2.4μm pixel size, it can clearly restore both the texture of small objects and the layers of long-distance scenes. The H.264/H.265 encoding formats, while ensuring image quality, significantly reduce data transmission bandwidth and storage occupancy, achieving a balance between high definition and high efficiency.
- Fast Focusing and Accurate Capture: The focusing range of 10cm~infinite distance is suitable for both long-distance and close-up shooting needs. Combined with the rapid response of the auto-focus function, it can quickly adapt to changes in the distance of objects in the image, avoiding blurry images caused by focusing delays and improving usage efficiency.

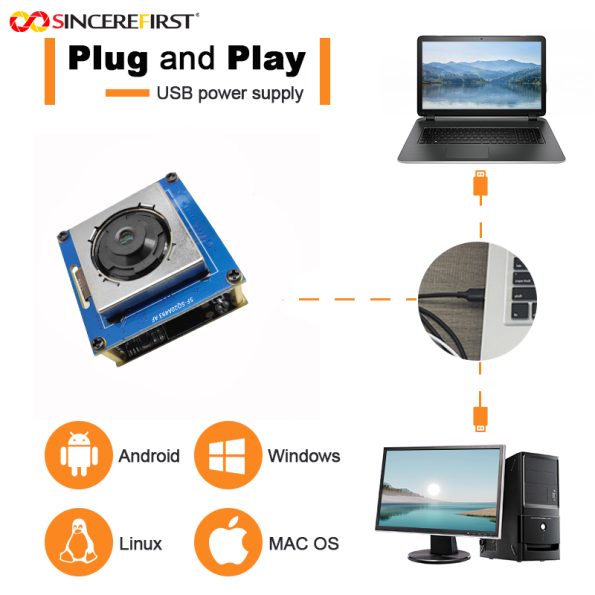

- Compact Design and Strong Compatibility: It supports the UVC protocol and multi-system compatibility, allowing plug-and-play without the need for additional complex driver installation, and is compatible with various devices such as computers and Raspberry Pi. With a compact size of only 38mm×38mm, it can be easily embedded in scenarios such as industrial equipment and intelligent terminals. The SDK support provides possibilities for personalized function development and meets customized needs.
- Original Color and High-Speed Transmission: The 650nm IR filter effectively suppresses infrared interference, avoids color cast in images, and ensures true and natural color restoration. The combination of USB3.0 high-speed transmission and Type-C interface guarantees smooth transmission under 4K image quality, enhancing the user experience.
- Exquisite Craftsmanship and Stable Reliability: The SMT environmental protection process complies with green production standards. The AA (Active Alignment) process enables precise matching between the lens and the sensor, reducing optical deviations and ensuring consistent image quality of each module. The ROHS certification also makes the product suitable for scenarios with high environmental protection requirements (such as medical and educational equipment).
- Comprehensive Service and Customization Guarantee: SincereFirst not only provides 1-year replacement service and 10-year warranty for this module to solve customers’ worries with long-term and reliable after-sales support but also offers one-stop OEM/customization solutions based on the needs of different industries. It flexibly meets the personalized needs of diverse application scenarios such as industrial testing, intelligent terminals, and security monitoring, making the product more accurately adapted.
Product Application
- SMT Solder Paste Inspection Machine: It can clearly capture whether the component pins are offset and whether the solder is sufficient in the SMT production line, assist in inspecting circuit boards, and significantly reduce the missed inspection rate.
- Dimensional Measuring Instrument: It can measure the outer diameter of metal shaft parts with a diameter of 0.5mm, display fine scratches on the surface of the parts, and automatically calculate the dimensional error of the parts in combination with measurement software, improving efficiency.
- Video Conference Terminal: It can realize long-distance conference image transmission under 4K image quality, quickly lock onto the image, avoid blurriness caused by distance changes, and meet the needs of large-scale long-distance conferences.
- AIoT Monitoring Host: It can be used as an external high-definition lens, covering an area within 10 meters, clearly recording the facial features of visitors, and tracking targets. At the same time, it supports H.265 encoding and can store monitoring videos when matched with a memory card, meeting home security needs.
- Robot Vision: It can accurately identify obstacles 1 meter ahead, quickly adapt to changes in the distance of obstacles, assist robots in achieving precise obstacle avoidance, and is suitable for development scenarios such as educational robots and industrial inspection robots.

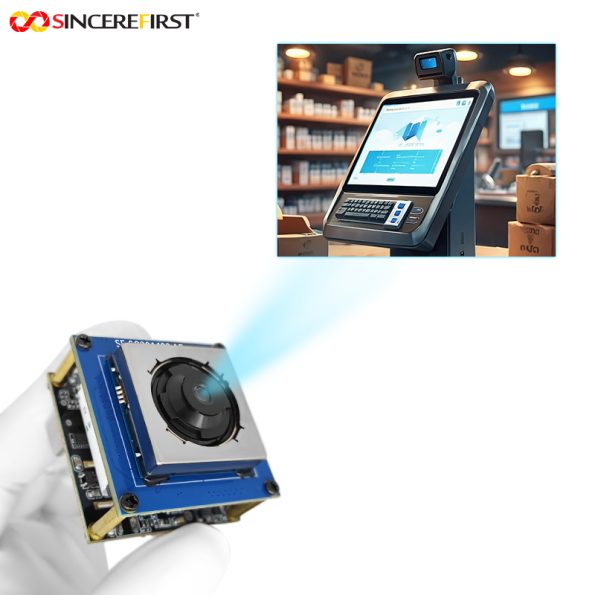

- Self-Service Terminal: It can be used for scanning and identifying ID cards and medical cards, clearly reading the text and QR codes on the cards, and quickly identifying without adjusting the position of the cards, improving operation efficiency.
With more than 30 years of industry experience, a high-quality production system, and comprehensive services, SincereFirst has made this 20MP 4K auto-focus USB camera module an excellent choice for various industries. If you have needs for product procurement, customization, or technical consultation, please feel free to contact SincereFirst to obtain an exclusive solution.
