Product Introduction:

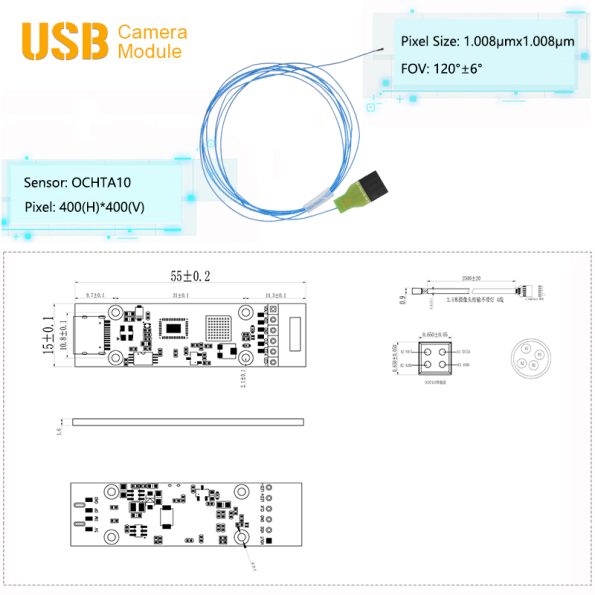

This is the 0.9mm image sensor separated endoscope camera module for precision inspection by SincereFirst. It is equipped with the OCHTA10 CMOS color sensor from OmniVision Technologies, enabling clear imaging with a resolution of 400×400 and supporting a maximum frame rate of 30FPS to ensure smooth and stutter-free dynamic observation images. The sensor size is 1/31 inch, and the pixel size reaches 1.008μm x 1.008μm, which still ensures the accurate presentation of image details even in a miniaturized form factor.
The module adopts a unique separated design, separating the lens and DSP board independently. The lens has a diameter of only 0.9mm, allowing easy access to narrow spaces for observation. It is equipped with 4Pin pins and matched with a DSP board supporting USB2.0 speed. The DSP board uses a convenient Type-C interface and supports the UVC protocol, enabling quick connection to devices without the need for additional driver installation.
As a micro endoscope module under SincereFirst, it is manufactured in Class 10/100 COB dust-free workshops with strict adherence to SMT (Surface Mount Technology) and AA (Active Alignment) processes, ensuring product consistency and stability to meet the high reliability requirements of precision equipment. In addition, the module supports manual focusing, allowing users to flexibly adjust the focal length according to observation needs for clear imaging results.
Product Advantages & Features
- Flexibility and Adaptability: The separated design allows independent replacement or upgrade of the lens and DSP board. Users can select lenses or DSP boards of different specifications according to their needs, greatly expanding the flexibility of hardware integration. It is suitable for application environments with structural constraints and reduces overall usage costs.
- Excellent Image Quality: Equipped with the OCHTA10 CMOS sensor, the combination of 400×400 resolution and 30FPS frame rate not only clearly presents the detailed features of the observed target but also ensures the smoothness of dynamic images. The pixel size of 1.008μm x 1.008μm further enhances image clarity.

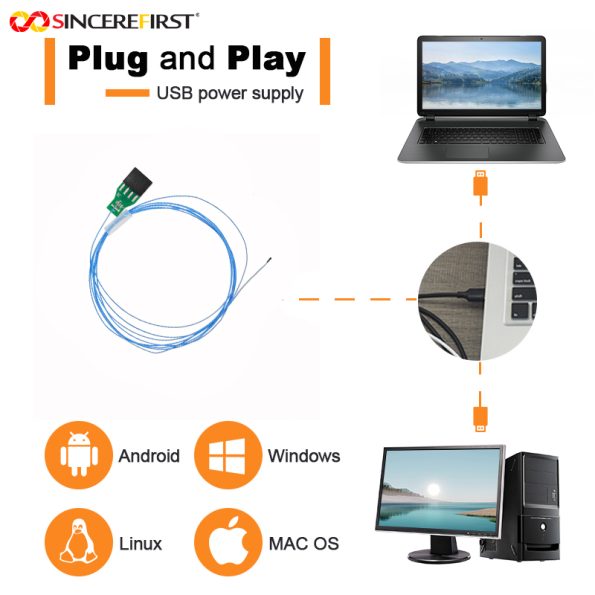

- Convenient & Efficient Connection: The DSP board supports USB2.0 speed for fast data transmission. Moreover, the module supports the UVC protocol, which is directly compatible with mainstream operating systems such as Windows, Linux, and Android, realizing plug-and-play functionality, simplifying the development process, and accelerating product launch.
- Convenient & Efficient Connection: The DSP board supports USB2.0 speed for fast data transmission. Moreover, the module supports the UVC protocol, which is directly compatible with mainstream operating systems such as Windows, Linux, and Android, realizing plug-and-play functionality, simplifying the development process, and accelerating product launch.
- Good Reliability and Durability: SincereFirst manufactures the module using SMT technology in Class 10/100 COB dust-free workshops, ensuring stable connections between various components of the module and reducing issues such as poor contact. Combined with the AA process, the lens installation angle is precisely adjusted through active alignment technology, minimizing optical deviations and ensuring long-term stability of the components under high-precision requirements.
Product Application
- Medical Endoscope Equipment: Used in minimally invasive surgeries such as otolaryngology, urology, or laparoscopy. The ultra-thin lens can penetrate into body cavities, and the split design avoids excessive overall device size, improving operational flexibility.
- Pipeline Inspection: Used for defect detection inside machinery, pipelines, or precision instruments. The lens can be embedded in complex structures, and the DSP board connects to external display devices to output high-definition inspection images in real-time.
- Experimental Observation: Suitable for observing micro-biological samples or recording data in narrow experimental environments. The wide field of view and manual focusing function facilitate researchers to obtain comprehensive and clear image data.
- Automotive and Aerospace Maintenance: Applied in visual inspection of engine interiors, oil circuit systems, or aircraft wing structures. The durable design and lightweight module are suitable for high-demand working conditions.
- Consumer Electronics and Innovative Device Integration: Can be embedded in smart hardware, robotic vision systems, or VR/AR devices. Its plug-and-play feature enables rapid implementation of video capture functions.
SincereFirst: A Trustworthy Partner for Camera Module
As a professional enterprise with over 30 years of experience in the optical device and camera module industry, SincereFirst not only possesses mature R&D capabilities and operational management expertise but also ensures product quality through strict production standards. It is equipped with Class 10/100 COB dust-free workshops and adopts advanced AA (Active Alignment) processes, ensuring that every module delivers stable and high-performance performance from the source of production.
Relying on its outstanding product quality and brand strength, SincereFirst has established in-depth cooperation with Fortune Global 500 companies, gaining wide recognition in the global market. In terms of after-sales support, SincereFirst offers a 1-year replacement service and a 10-year warranty commitment, providing customers with long-term and reliable after-sales support to completely eliminate usage concerns.
To meet the personalized needs of different industries, SincereFirst also provides one-stop OEM/customization solutions, following up the entire process from product design, R&D to production and delivery, truly realizing “customization on demand”. Whether for standardized module procurement or exclusive solution development, SincereFirst is always committed to providing customers with comprehensive camera module solutions. If you have relevant needs, please feel free to contact SincereFirst to start an efficient and professional cooperation journey.
