IMX415 4K 8MP UHD Image USB Camera Module for Low-Distortion Imaging Devices
$1.00
slim IMX415 4K USB camera module with D86° coverage, less than 0.3% distortion, 1080P@60FPS and Fixed-Focus or Autofocus options.
—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.
Introduction

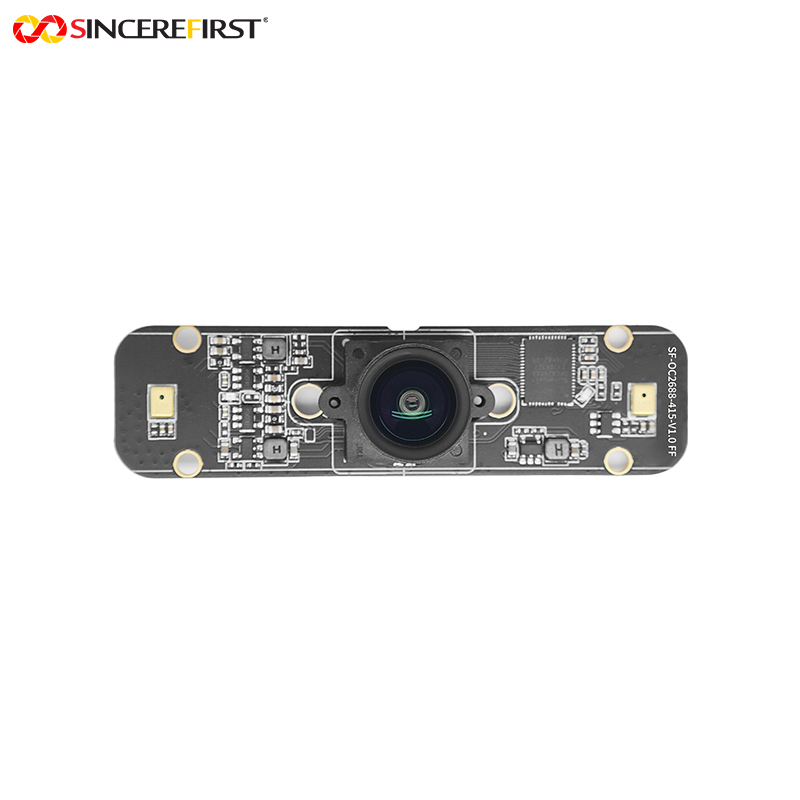

SF-OC2688-415-V1.0 is an 8MP USB 2.0 camera module developed for devices that require a slim PCB, controlled optical distortion and flexible focus selection. It supports 4K@30FPS and 1080P@60FPS MJPG output, with Fixed-Focus and Autofocus configurations available for different working-distance conditions.Its 72 × 19.1mm elongated board can be evaluated for compact equipment where a conventional square camera PCB does not fit. The standard optical configuration provides D86° × H76° × V48° coverage with TV distortion below 0.3%. The specification lists a 6cm-to-200cm object-distance range, while actual focusing performance should be confirmed according to the selected FF or AF version.
Applications in Real Devices
Portable Evidence-Recording Devices
Portable recording devices often require a narrow camera board that can fit behind a slim front panel. The elongated PCB and 1080P@60FPS output can support smoother Full HD capture where device width is more restricted than device length.
Compact Document-Capture Terminals
The low-distortion optical configuration can be evaluated for terminals that capture documents, labels or identification materials. Final edge geometry and text readability should be checked at the intended working distance.
Embedded USB Imaging Systems
The USB 2.0 UVC route supports devices that prefer processed video output instead of direct MIPI RAW integration. Host bandwidth, software compatibility and required resolution should be checked before sampling.
Project Evaluation Guide
Consider This Model When
- The enclosure requires a long and narrow camera PCB.
- Low optical distortion is more important than an ultra-wide FOV.
- The device requires 4K detail or 1080P@60FPS motion capture.
- The project needs a choice between Fixed Focus and Autofocus.
Confirm Before Sampling
- Whether the project requires FF or AF.
- Minimum, typical and maximum target distance.
- Required diagonal, horizontal and vertical coverage.
- Available PCB length, width and lens height.
- Host USB 2.0 bandwidth and UVC software.
- Cable length, 5-pin definition and connector direction.
Choosing This Model Within the 4K USB Camera Module Series
SF-OC2688-415-V1.0 occupies the slim, low-distortion position within the 4K USB Camera Module Series. It differs from square-board IMX415 modules by using a 72 × 19.1mm elongated layout and by supporting 1080P@60FPS through USB 2.0.
Projects requiring a compact square PCB and broader H129° coverage may compare the SF-X4154KA series. Projects requiring USB 3.0, HDR and higher 4K frame rates may evaluate SF8A625-88.
Related Models
IMX415 – SF-X4154KA-25FPS-AF V1.0: Compact 32 × 32mm Autofocus alternative with H129° horizontal coverage and a 10cm-to-infinity working range.
IMX415 – SF8A625-88: USB 3.0 Fixed-Focus alternative with HDR, a 38 × 38mm PCB and 4K@60FPS output.
Key Specifications
Specification | Details |
Sensor | IMX415 CMOS |
Resolution | 8MP 3840 × 2160 |
Maximum Video Output | 4K@30FPS / 1080P@60FPS |
Output Format | MJPG |
Pixel Size | 1.45μm × 1.45μm |
Interface | USB2.0，UVC |
Focus Type | Fixed Focus / Autofocus |
FOV | D86° × H76° × V48° |
TV Distortion | <0.3% |
IR Filter | 650nm ±10nm |
F.No | 2.2 |

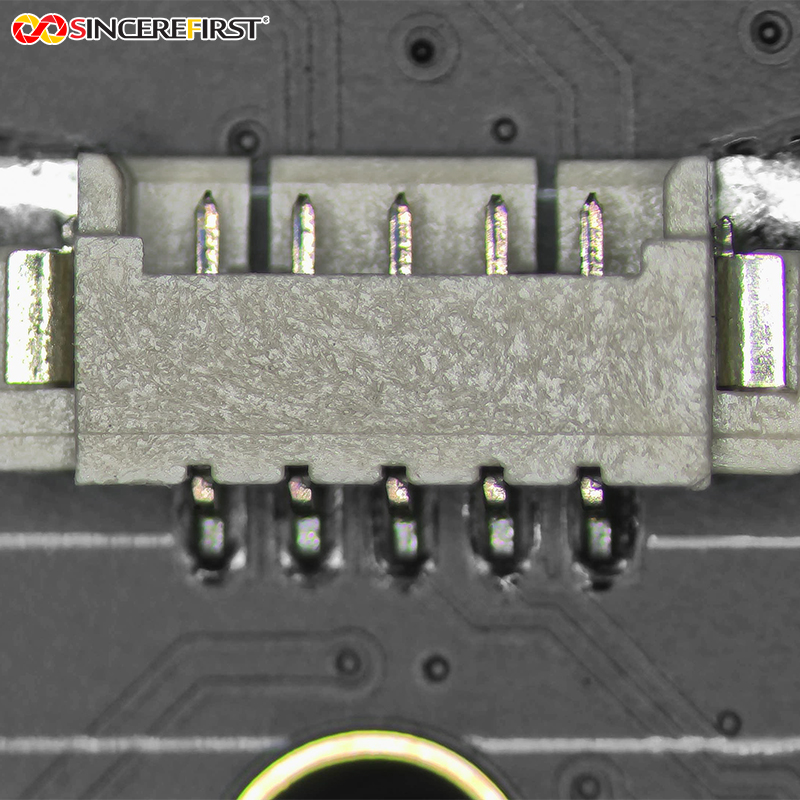

Connector | 5-pin, 1.25mm-pitch |
SincereFirst Customization
Lens and Low-Distortion FOV

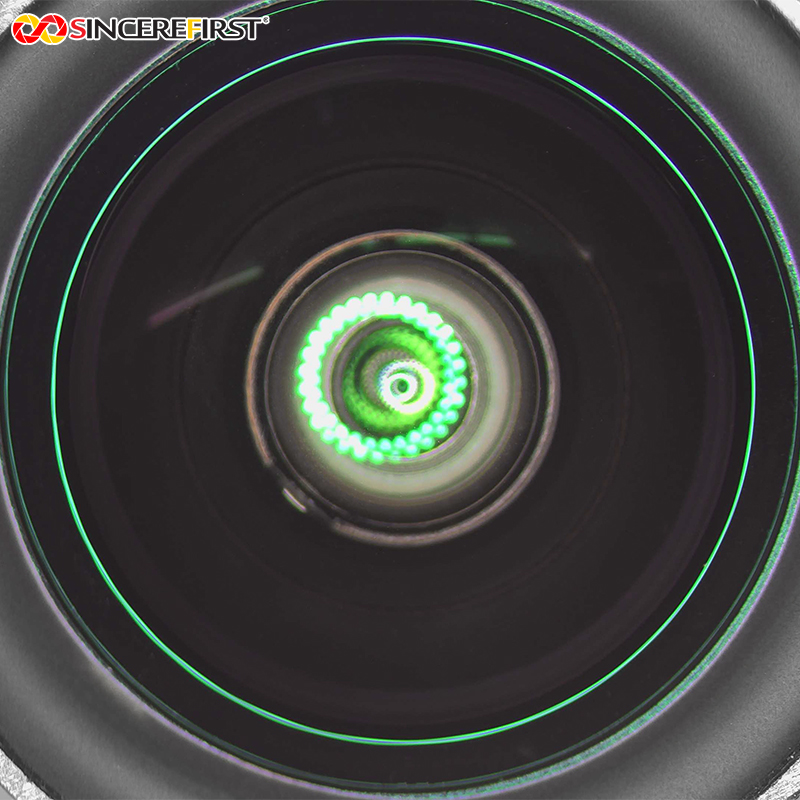

The standard lens provides D86° coverage with TV distortion below 0.3%. Alternative FOV directions can be evaluated according to the target scene, enclosure opening and permitted edge deformation.
Fixed-Focus and Autofocus Options
Fixed-Focus and Autofocus versions are available for different working-distance conditions. The final focus configuration should be matched to the target-distance range and expected subject movement.
Slim PCB and Connector

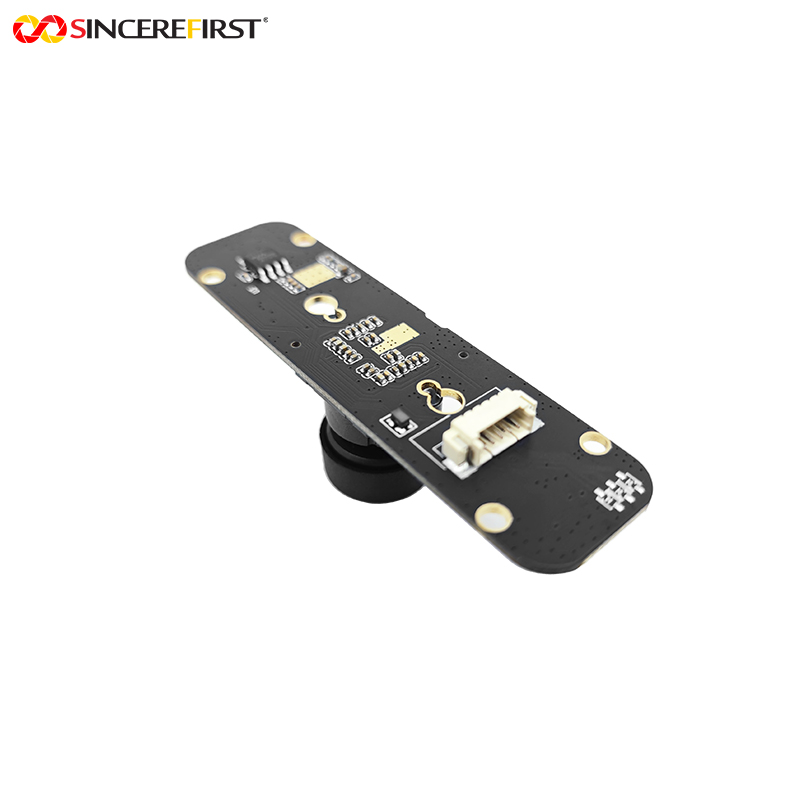

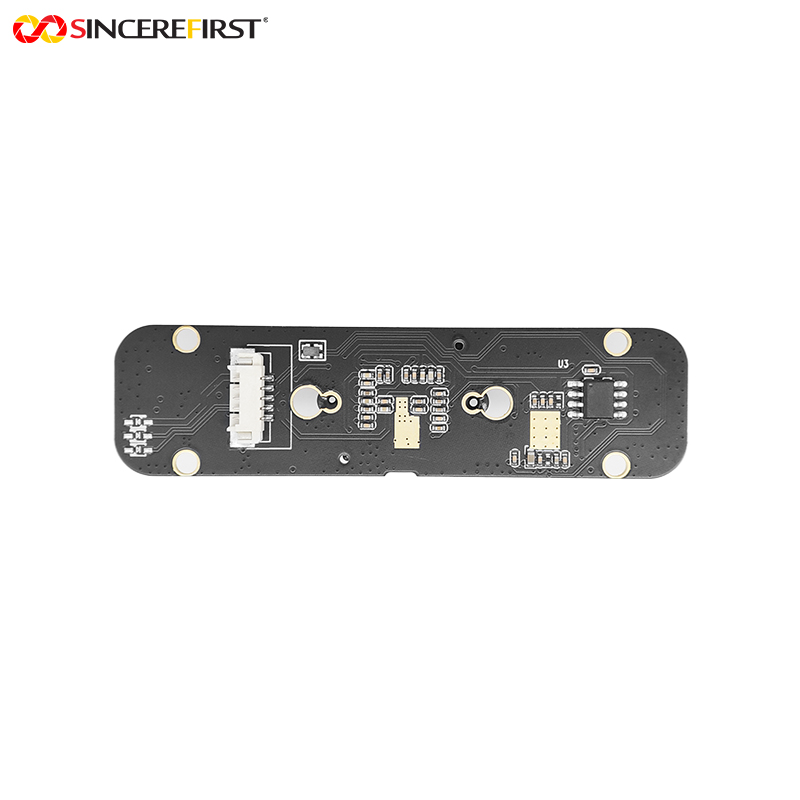

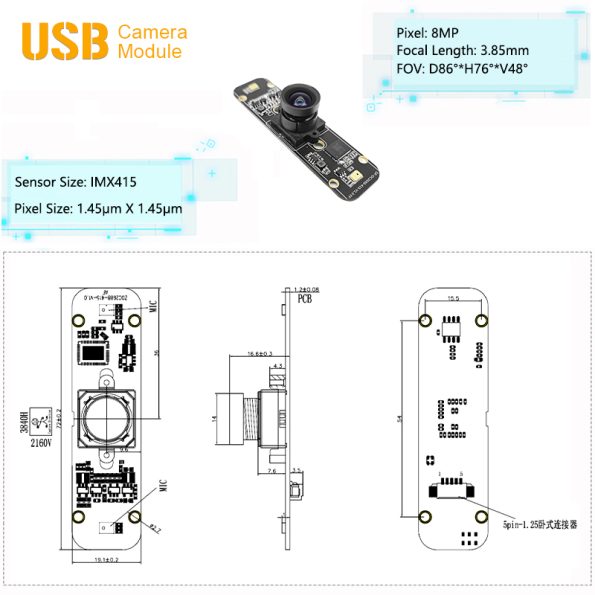

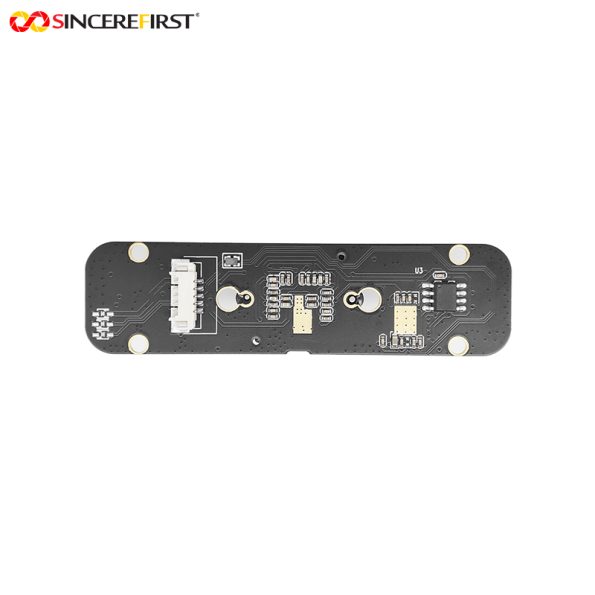

The 72 × 19.1mm PCB, lens position, mounting points, cable exit and 5-pin connector direction can be reviewed against the internal device layout.
USB 2.0 and Video Modes
USB cable length, UVC compatibility, MJPG output and the required 4K or Full HD operating mode can be evaluated with the host platform before sampling.
Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.
FAQ
Is this model available with Fixed Focus or Autofocus?
Both configurations are available. The correct version depends on whether the target distance remains stable or changes during operation.
What is the main structural advantage?
Its elongated 72 × 19.1mm PCB provides an alternative to conventional square camera boards for devices with limited width.
Does it support 1080P at 60FPS?
Yes. The confirmed MJPG modes include 4K@30FPS and 1080P@60FPS.
What information should be confirmed before sampling?
Confirm the focus version, target-distance range, FOV, PCB space, connector direction and host USB environment.
Evaluate This Module for Your Device
Share your preferred focus version, target distance, required FOV, available PCB space, connector direction and host USB environment for project evaluation.
