IMX274 4K USB 2.0 Camera Module for Fixed-Focus Embedded Imaging
$1.00
IMX274 8MP USB 2.0 UVC camera module with MJPG 4K@30FPS, Fixed Focus, a 38 × 38mm PCB and a 4-pin terminal.
—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.
Introduction

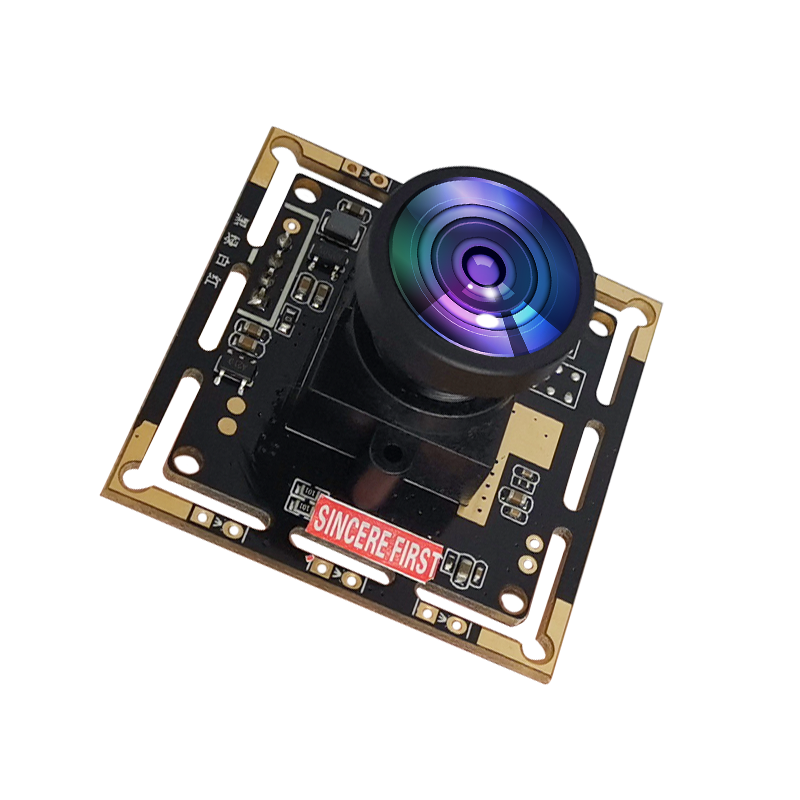

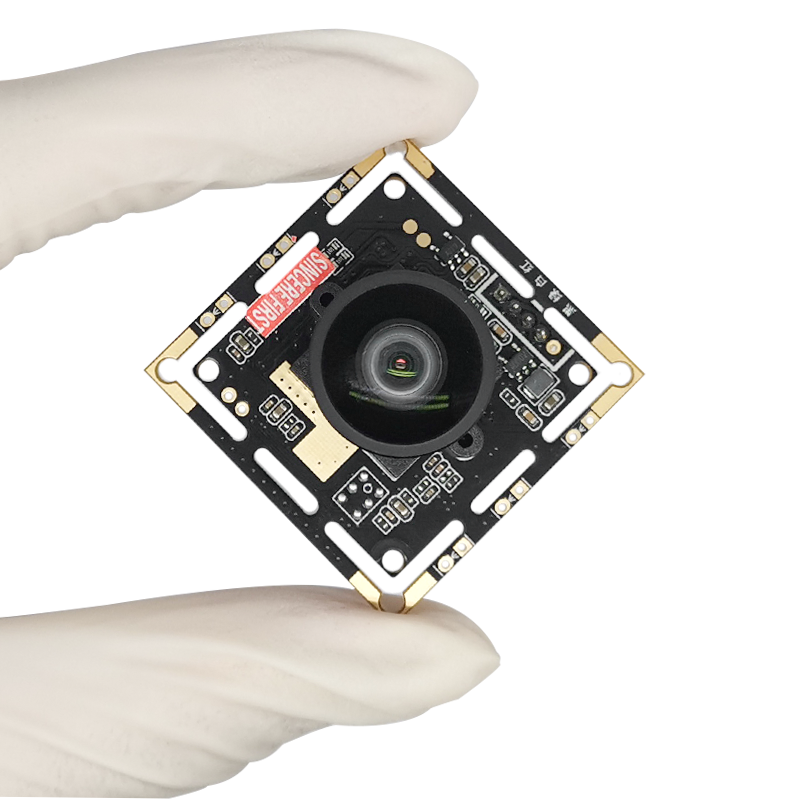

SF8A583-2.0 is an 8MP USB 2.0 UVC camera module for embedded devices that require MJPG 4K video, a Fixed-Focus optical route and a terminal-based USB connection.
It uses an IMX274 sensor with a confirmed 1/2.5-inch optical format and a 38 × 38mm PCB. The standard interface is a 4-pin, 2.0mm terminal rather than an integrated Type-C connector, making it relevant to devices where the USB cable is routed internally to a separate host connector.
Applications in Real Devices
Fixed-Position Inspection Equipment
The Fixed-Focus route can be evaluated for inspection devices with a predictable camera-to-target distance. The lens and focus position should be matched to the actual inspection plane.
Document and Label-Capture Terminals
MJPG 4K@30FPS provides an image-detail route for terminals capturing labels, printed text or documents. FOV and focus distance should be defined according to the required capture area.
Laboratory Observation Devices
The 38 × 38mm PCB and terminal-based USB connection can support laboratory or development equipment where the camera is integrated inside a larger enclosure.
Project Evaluation Guide
Consider This Model When
- The project requires an IMX274 USB camera module.
- MJPG 4K@30FPS meets the video requirement.
- Fixed Focus is suitable for the target distance.
- A 4-pin terminal is preferred over an onboard Type-C socket.
- A 38 × 38mm PCB fits the enclosure.
Confirm Before Sampling
- Required FOV and focal length.
- Actual fixed-focus distance.
- Host USB 2.0 bandwidth and UVC compatibility.
- MJPG or YUY2 format requirement.
- 4-pin terminal definition and cable length.
- PCB mounting space and lens height.
- Required filter or optical configuration.
Choosing This Model Within the 4K USB Camera Module Series
SF8A583-2.0 is positioned as the IMX274 USB 2.0 Fixed-Focus route with a 4-pin terminal. It differs from USB 3.0 Type-C models by prioritizing internal cable integration and MJPG 4K@30FPS rather than 4K@60FPS.
Projects requiring standard VCM Autofocus and USB 3.0 Type-C may compare SF8A824. Projects requiring HDR and 4K@60FPS may evaluate SF8A625-88.
Related Models
IMX317 – SF8A824: USB 3.0 Type-C alternative with standard VCM Autofocus, optional Fixed Focus and MJPG 4K@30FPS.
IMX415 – SF8A625-88: USB 3.0 Fixed-Focus alternative with HDR, H.264 output and 4K@60FPS capability.
Key Specifications
Specification | Details |
Sensor | IMX274 CMOS |
Resolution | 8MP |
Maximum Video Output | MJPG3840 × 2160@30FPS |
Pixel Size | 1.62μm × 1.62μm |

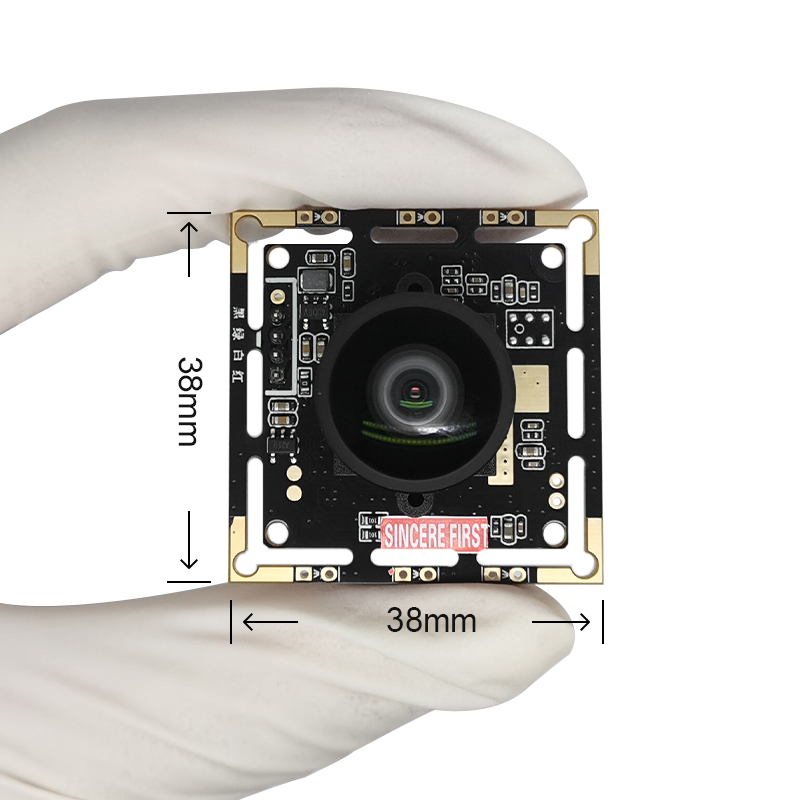

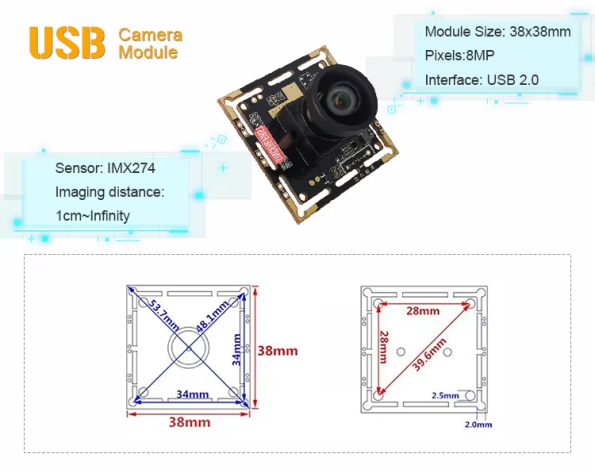

PCB Size | 38 × 38mm |
Interface | USB 2.0 High Speed |
Focus Type | Fixed Focus |
Output Formats | MJPG / YUY2 |
Sensor Size | 1/2.5 inch |
Focus Range | 1cm–Infinity |
Connector | 4-pin, 2.0mm terminal |
Focus Type | Fixed Focus |
SincereFirst Customization
Lens and Optional FOV
Lens angle and focal length can be evaluated according to the required scene coverage, target distance and enclosure opening.
Fixed-Focus Configuration
The module uses Fixed Focus with a stated 1cm-to-infinity imaging range. The final focus position should be adjusted according to the main target plane and expected depth of field.
PCB and 4-Pin Terminal

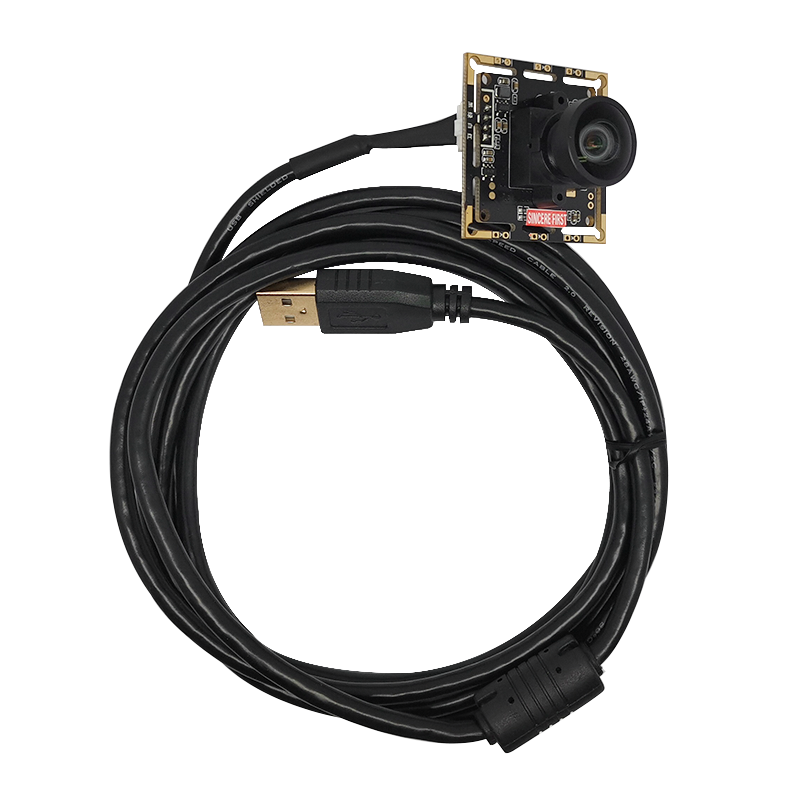

The 38 × 38mm PCB, mounting position, cable exit, 4-pin terminal definition and internal USB wiring can be coordinated with the host board and enclosure layout.
USB 2.0, MJPG and YUY2 Modes
USB 2.0 bandwidth, UVC compatibility, MJPG/YUY2 selection and required resolution can be reviewed with the target operating system and capture software.
Final configuration should be validated with the actual host
platform, enclosure, optics, software, and lighting environment before sampling.
FAQ
What is the confirmed Sensor Size?
The confirmed Sensor Size is 1/2.5 inch.
Does it support 4K@30FPS?
Yes. MJPG supports 3840 × 2160 at 30FPS. YUY2 at the same resolution is listed at 1FPS.
Does the module use a Type-C connector?
No. The standard interface uses a 4-pin, 2.0mm terminal.
Is one standard FOV confirmed?
No. The FOV depends on the selected lens and should be confirmed according to the target scene and working distance.
Evaluate This Module for Your Device
Share your target FOV, Fixed-Focus distance, host USB environment, terminal definition, cable length and available PCB space for project evaluation.
Send Inquiry
