IMX766 50MP Autofocus Type-C USB2.0 Camera Module for High-Resolution Interactive Devices

Name: IMX766 50MP Autofocus Type-C USB2.0 Camera Module for High-Resolution Interactive Devices
SKU: 15191
Price: 1.00 CNY
Availability: InStock

¥1.00

IMX766 50MP autofocus Type-C USB2.0 camera module with 8160×6120 resolution, 4-in-1 pixel, PDAF, HDR and dual-layer PCB design for high-detail embedded imaging.

—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.

... people are viewing this right now

Description Send Inquiry

Introduction

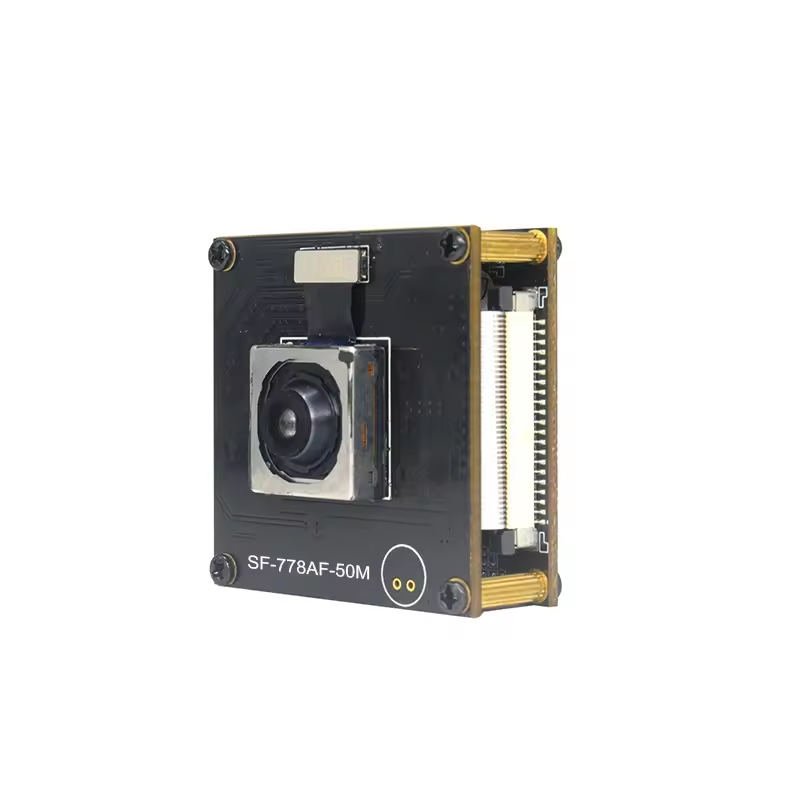

SF-778AF-50M AF is a 50MP Type-C USB2.0 camera module designed for devices that require higher-resolution imaging, VCM Autofocus and compact embedded integration.

Based on the Sony IMX766 CMOS sensor, it supports 8160×6120 resolution with 4-in-1 pixel technology, PDAF and HDR functions. The combination of a 50MP sensor, Autofocus capability and dual-layer PCB structure makes it suitable for equipment where image detail and flexible focusing are both important.

Compared with 48MP USB modules in the same Series, this model provides a higher-resolution sensor direction while maintaining standard USB camera integration.

Applications in Real Devices

Smart Interactive Terminals

Interactive devices often capture users or objects at different distances rather than from one fixed position. VCM Autofocus helps maintain image clarity when the target distance changes during operation. The 50MP sensor also provides additional image detail for recognition, capture and analysis tasks.

AI Vision Equipment

AI-based systems may require detailed image sources before classification, recognition or measurement.The combination of high-resolution imaging, PDAF support and HDR capability provides an evaluation direction for devices where image quality consistency is important under different scenes.

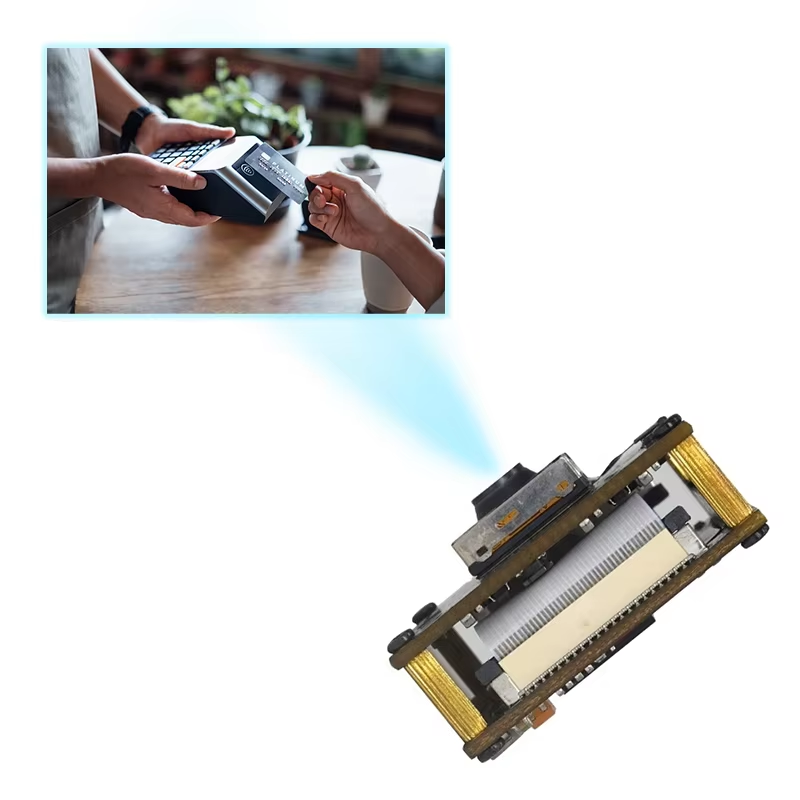

OEM Embedded Imaging Products

The Type-C USB2.0 interface and dual-layer PCB structure provide an integration direction for OEM devices requiring a compact high-resolution camera assembly.

Project Evaluation Guide

Consider This Model When

The project requires 50MP high-resolution imaging.
Autofocus is needed for changing target distances.
PDAF and HDR features are valuable to the image task.
Type-C USB2.0 integration is preferred.

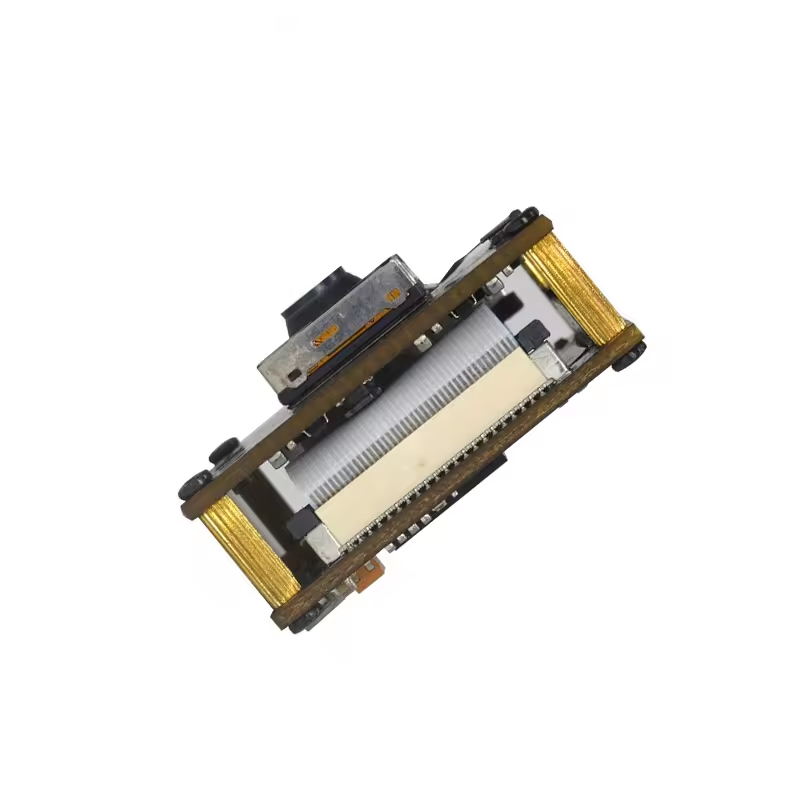

A dual-layer PCB structure matches the device layout.
4K30 video output is required.

Confirm Before Sampling

Whether native 50MP capture or 4K video is the primary requirement.
Required working distance and Autofocus range.
Target movement condition and shutter requirements.
Host USB compatibility and available bandwidth.
Required FOV and lens configuration.
Internal space for dual-layer PCB and Type-C connector.

Choosing This Model Within the 8K Camera Module Series

SF-778AF-50M AF is the 50MP Autofocus USB direction within the 8K Camera Module Series.

Choose this model when the project needs a higher-resolution USB camera than 48MP solutions while maintaining Autofocus, Type-C connection and compact mechanical integration.

Compared with SF-ANVIS-48M, this model moves to a 50MP IMX766 sensor platform. If the project requires a Fixed Focus optical structure with interchangeable M12 or C/CS lenses, the SF-778AF-50M FF version should be considered.

Related Models

50MP Fixed Focus USB – SF-778AF-50M FF
Consider this model when the working distance is stable and the project requires M12 or C/CS lens flexibility instead of active Autofocus.

48MP Type-C Autofocus USB – SF-ANVIS-48M
Consider this model when 48MP resolution is sufficient and the project prioritizes the S5KGM1 platform with dual-layer USB integration.

Key Specifications

Specification	Details
Model	SF-778AF-50M AF
Sensor	Sony IMX766 CMOS
Resolution	50MP / 8160 × 6120
Sensor Size	1/1.56 inch
Pixel Size	1.0μm × 1.0μm
4K Video	3840 × 2160 @ 30fps
Pixel Technology	4-in-1 Pixel
PDAF	Supported
HDR	Supported
Output Format	MJPG / YUY2
Focus	VCM Autofocus
Field of View	D84° × H72° × V55°
Interface	Type-C USB2.0

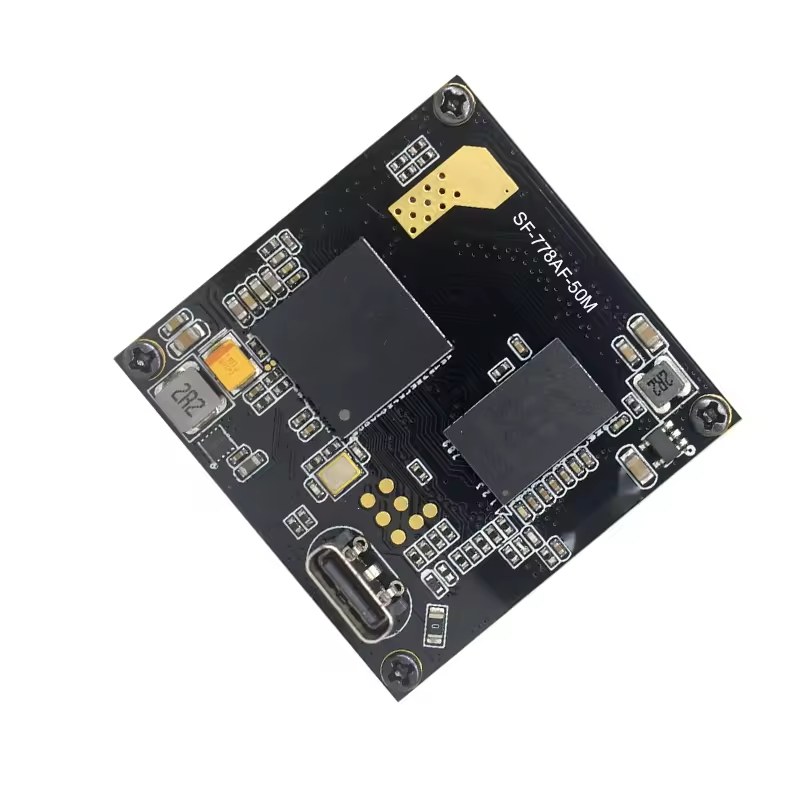

PCB Structure	Dual-Layer PCB
Module Structure	Compact Embedded Camera Module
Lens Direction	Autofocus Optical Configuration

SincereFirst Customization

Autofocus and Optical Configuration

VCM Autofocus is the standard direction. Focus behavior can be evaluated according to working distance, target movement range and image-capture requirements.

Lens and Field of View

The standard optical direction provides D84° × H72° × V55° coverage. Lens parameters can be evaluated when the device requires different scene coverage or mechanical installation conditions.

USB and Mechanical Integration

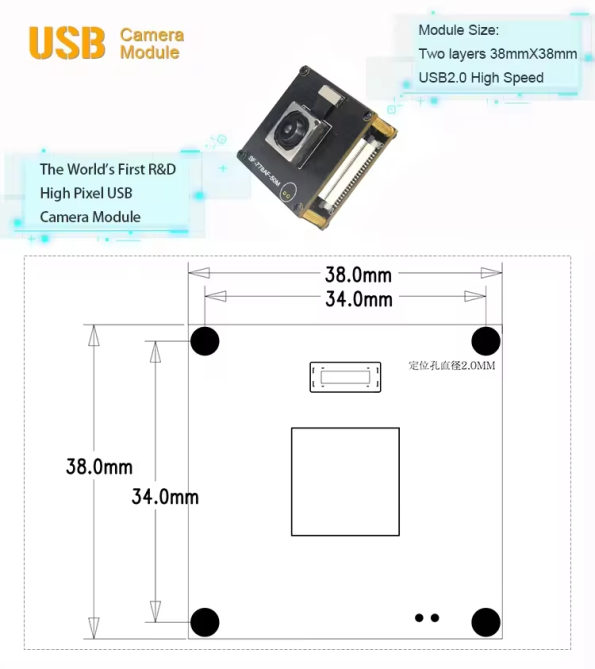

Type-C USB2.0 integration and dual-layer PCB structure can be evaluated according to host connection requirements, internal space limitations and enclosure design.

Image Output and Processing

MJPG and YUY2 output modes can be evaluated according to host bandwidth and image-processing requirements. HDR and PDAF-related functions should be considered together with the

complete imaging system.

Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.

FAQ

Why choose 50MP IMX766 instead of a 48MP camera module?

The difference is not only megapixel count. The IMX766 direction provides a larger 1/1.56-inch sensor format and 1μm pixel size, which can be valuable when the project needs higher native image detail and a different sensor platform.

Does PDAF replace the need to evaluate Autofocus performance?

No. PDAF is part of the focusing system, but actual autofocus performance depends on lens design, firmware control, target contrast, lighting and the host system.

Is Type-C USB2.0 faster than a normal USB2.0 connector?

No. Type-C describes the connector form, while USB2.0 defines the transmission standard. This module uses Type-C USB2.0, so the available bandwidth follows USB2.0 limitations.

When should I choose the AF version instead of the FF version?

Choose the AF version when the object distance changes during normal operation. Choose the FF version when the camera observes a stable distance and the project benefits from M12 or C/CS lens flexibility.

Is 50MP always better for AI vision applications?

Not always. AI performance depends on image quality, optics, lighting, processing pipeline and algorithm requirements. A higher-resolution sensor is valuable only when the system can use the additional image information.

Evaluate This Module for Your Device

Share your target distance range, required resolution, FOV requirement, autofocus requirement, USB host environment and available camera installation space. SincereFirst can evaluate whether the IMX766 50MP Autofocus configuration matches the device before sampling.
