IMX766 50MP Fixed Focus Type-C USB2.0 Camera Module for Customized Optical Integration

Name: IMX766 50MP Fixed Focus Type-C USB2.0 Camera Module for Customized Optical Integration
SKU: 15190
Price: 1.00 USD
Availability: InStock

$1.00

IMX766 50MP fixed focus Type-C USB2.0 camera module with 8160×6120 resolution, 4-in-1 pixel, PDAF, HDR and M12/C-CS lens options for customized imaging devices.

—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.

... people are viewing this right now

Description Send Inquiry

Introduction

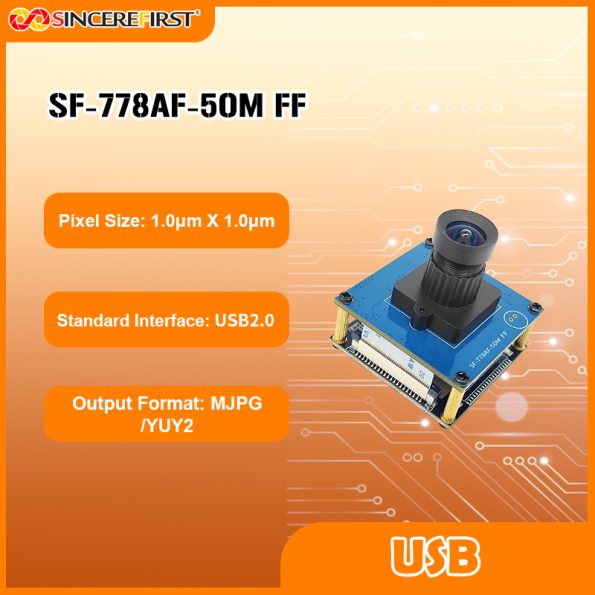

SF-778AF-50M FF is a 50MP Type-C USB2.0 camera module designed for projects that require high-resolution imaging with a fixed optical structure and flexible lens selection.

Based on the Sony IMX766 CMOS sensor, it supports 8160×6120 resolution with 4-in-1 pixel technology, PDAF and HDR features. Unlike the Autofocus version, this model focuses on a simpler optical architecture and supports M12 and C/CS lens options, making it suitable for OEM devices where the working distance is predefined and lens customization is more important than automatic focusing.

Applications in Real Devices

Industrial Imaging Equipment with Fixed Working Distance

Many inspection and monitoring systems operate with a stable camera position and target distance. In these cases, Fixed Focus avoids additional autofocus control while maintaining high-resolution image capture.

The final lens should be selected according to target size, working distance and required field of view.

Customized Machine Vision Devices

For OEM equipment requiring a specific optical structure, M12 or C/CS lens compatibility provides more flexibility than a fixed integrated autofocus lens.

This allows the camera configuration to be evaluated around the actual enclosure and optical requirements.

High-Detail Capture Terminals

For devices capturing products, samples or documents from a fixed position, the 50MP sensor provides additional image information for cropping, inspection or analysis.

The value of higher resolution depends on whether the complete optical system can resolve the required detail.

Embedded USB Imaging Products

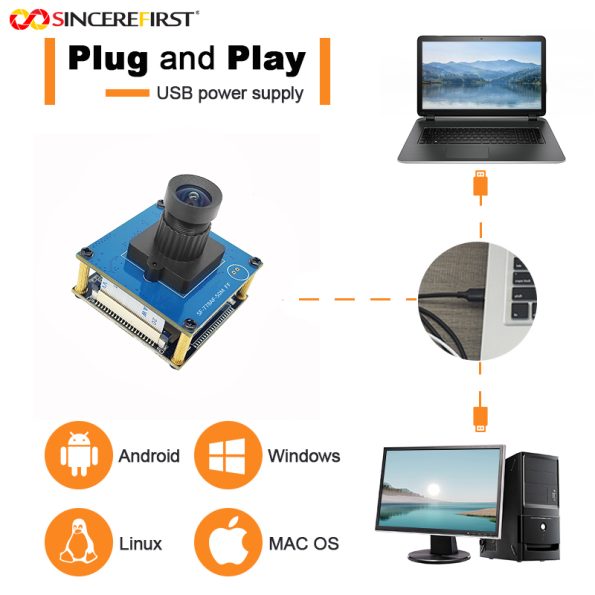

The Type-C USB2.0 interface provides a standard camera integration direction for embedded computers and host systems requiring a high-resolution USB camera without direct MIPI development.

Project Evaluation Guide

Consider This Model When

The project requires 50MP high-resolution imaging.
The working distance remains relatively stable.
A Fixed Focus architecture is preferred.
M12 or C/CS lens selection is required.
USB2.0 Type-C integration matches the host system.
Customized optical integration is more important than automatic focusing.

Confirm Before Sampling

Target distance and required depth of field.
Required FOV and lens interface.
Whether M12 or C/CS lens better fits the device.
Native 50MP capture or 4K30 video requirement.
Host USB compatibility.
Optical resolution requirement and lighting condition.
Available mechanical space for lens and camera assembly.

Choosing This Model Within the 8K Camera Module Series

SF-778AF-50M FF is the 50MP Fixed Focus USB direction within the 8K Camera Module Series.

Choose this model when the device has a defined working distance and requires more flexibility in optical selection.

Compared with SF-778AF-50M AF, this version removes the need for active focusing and provides M12/C-CS lens integration options. If the target distance changes during operation, the Autofocus version should be considered instead.

Related Models

50MP Autofocus USB – SF-778AF-50M AF
Consider this model when the project requires automatic focus adjustment for changing target distances.

48MP Fixed Focus USB – SF48A796
Consider this model when 48MP resolution is sufficient and the project needs a USB Fixed Focus camera with M12/C-CS lens compatibility.

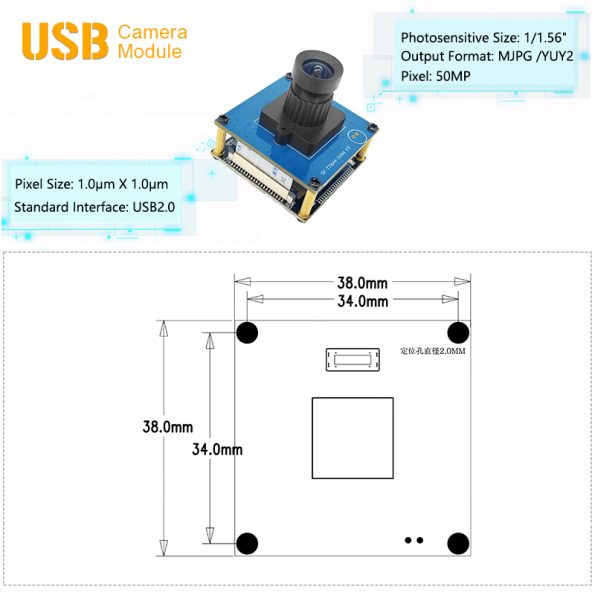

Key Specifications

Specification	Details
Model	SF-778AF-50M FF

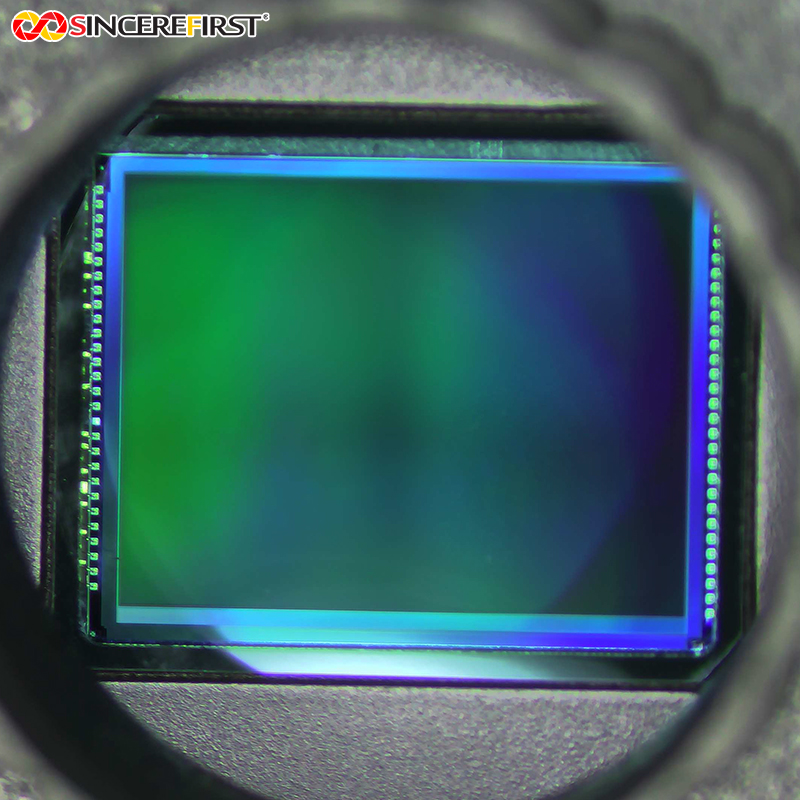

Sensor	Sony IMX766 CMOS
Resolution	50MP / 8160 × 6120
Sensor Size	1/1.56 inch
Pixel Size	1.0μm × 1.0μm
4K Video	3840 × 2160 @ 30fps
Pixel Technology	4-in-1 Pixel
PDAF	Supported
HDR	Supported
Output Format	MJPG / YUY2
Focus	Fixed Focus

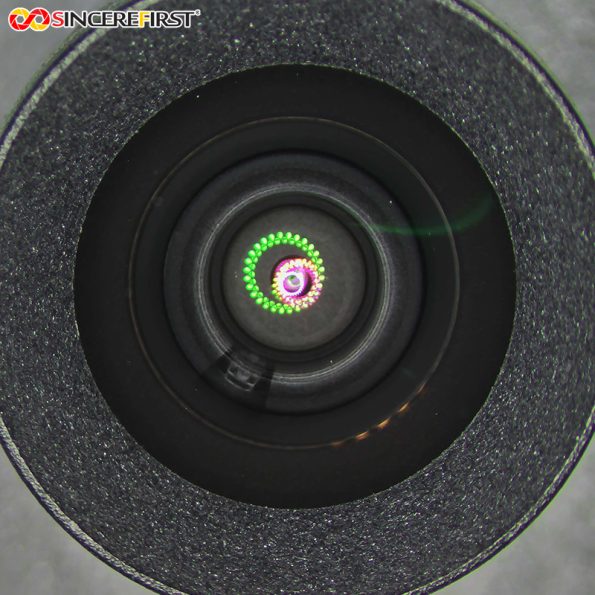

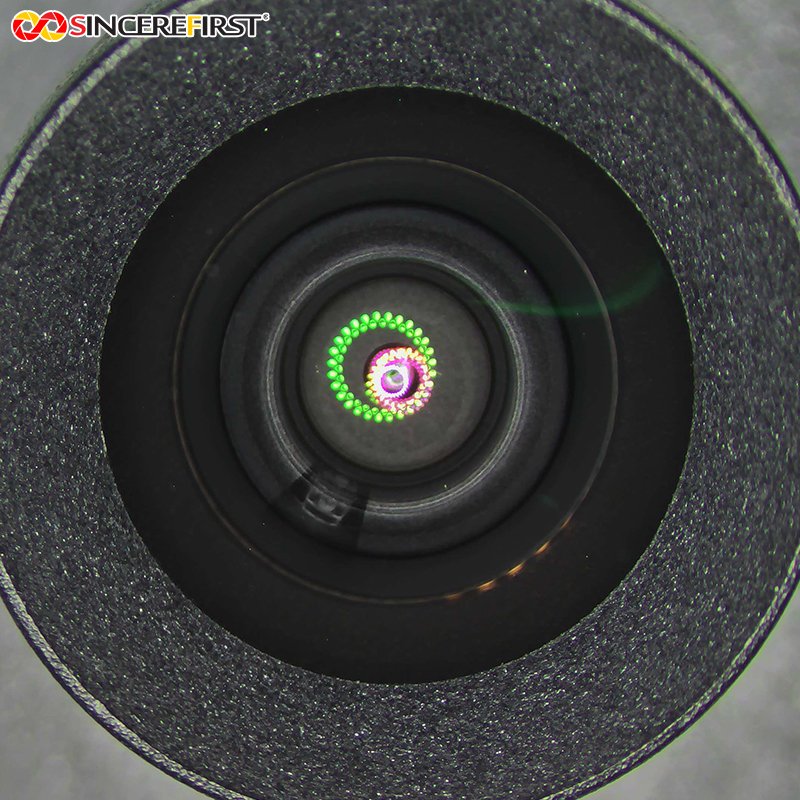

Lens Options	M12 Lens / C-CS Lens

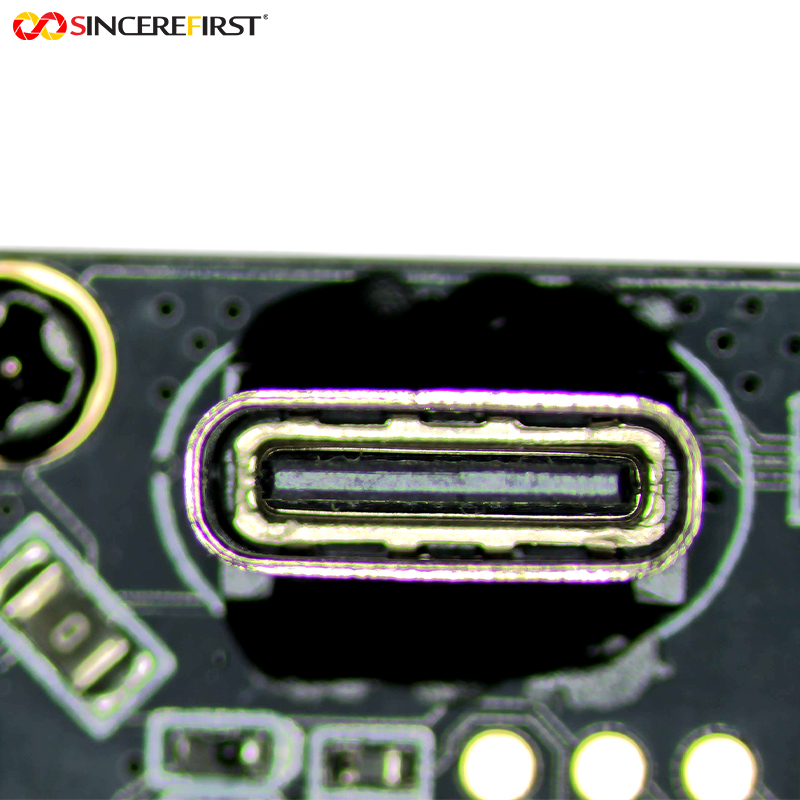

Interface	Type-C USB2.0

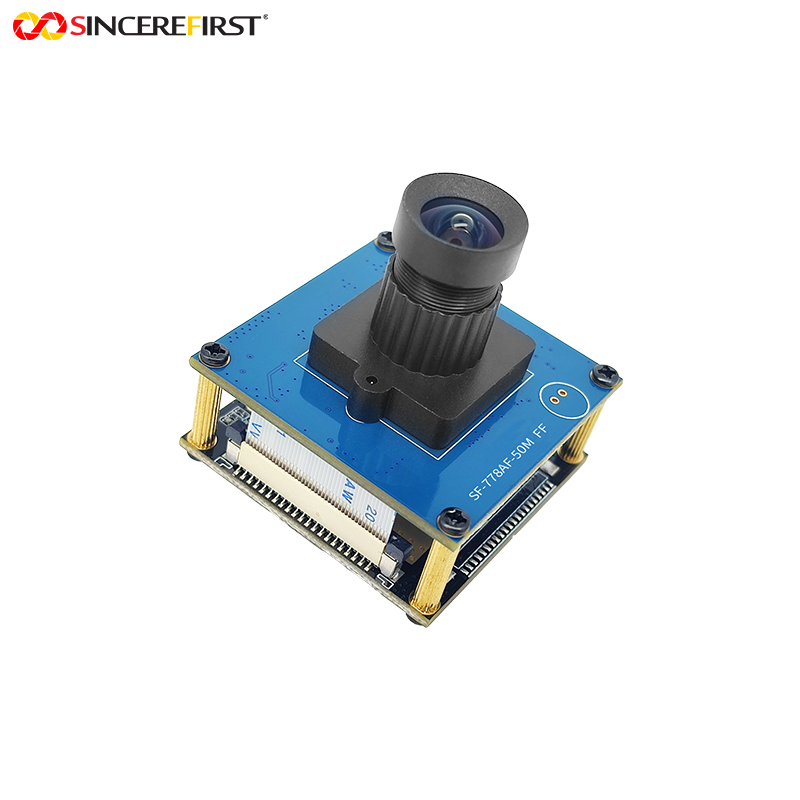

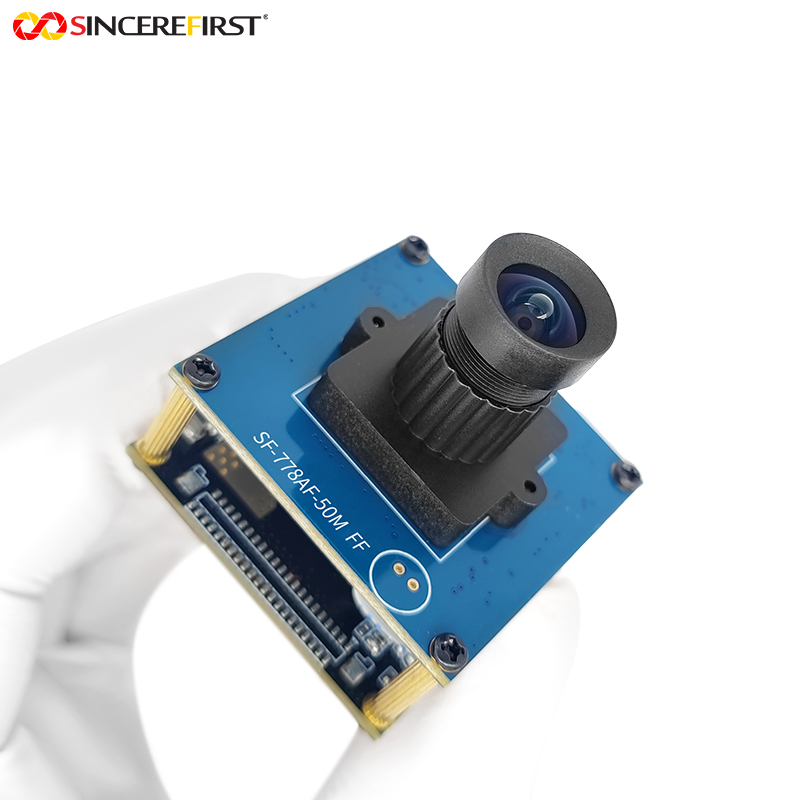

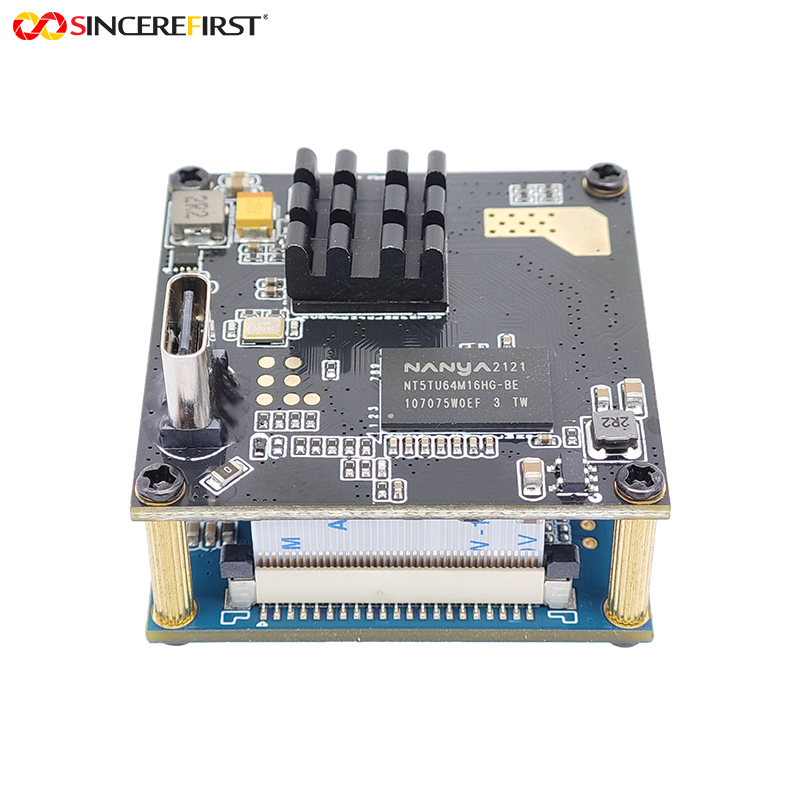

PCB Structure	Dual-Layer PCB

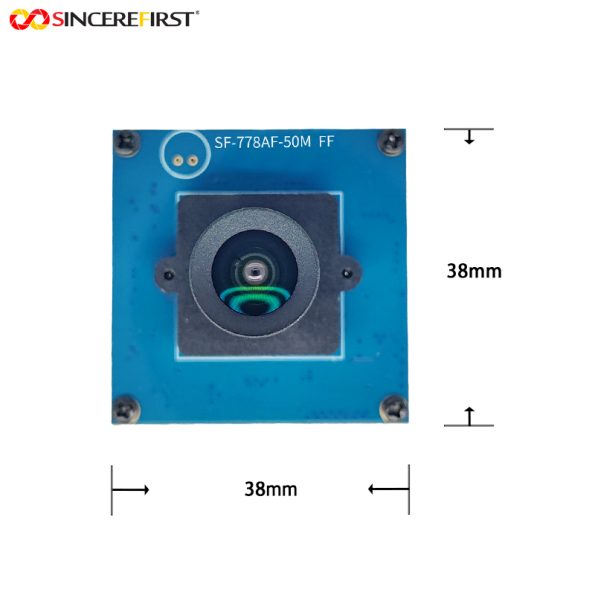

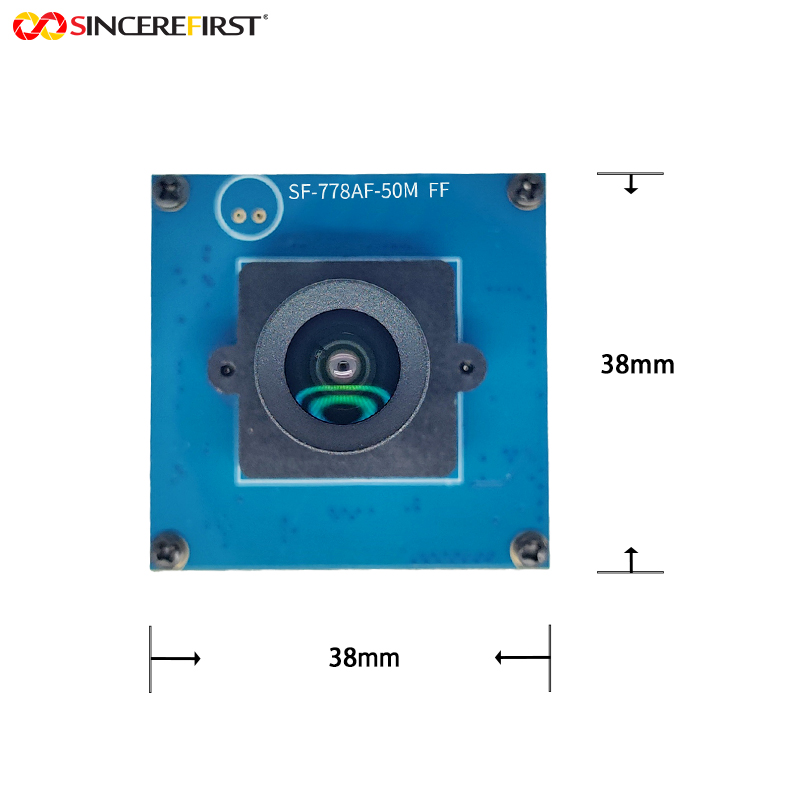

Module Structure	Compact Embedded Camera Module

SincereFirst Customization

Lens and Field of View

M12 and C/CS lens options provide flexibility for different optical requirements. Lens selection can be evaluated according to working distance, target size, FOV and distortion requirements.

Fixed Focus Configuration

The focus position can be optimized around the intended working distance. This direction is suitable for devices where the target position remains controlled during normal operation.

USB and Mechanical Integration

Type-C USB2.0 interface and dual-layer PCB structure can be evaluated according to host connection, enclosure space and internal component layout.

Optical and Image Configuration

Sensor output modes, HDR usage and lens performance can be evaluated according to the final imaging task, lighting condition and host processing capability.

Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.

FAQ

Why choose Fixed Focus instead of Autofocus for a 50MP camera?

Fixed Focus is suitable when the camera-to-target distance remains stable. It simplifies the optical system and avoids autofocus control when the device does not require continuous focus adjustment.

When does M12 or C/CS lens support provide real value?

It provides value when the project needs to optimize the camera around a specific working distance, field of view or enclosure structure. Integrated autofocus optics may be less flexible for these customized optical requirements.

Is the FF version lower performance than the AF version?

No. The difference is the focus method, not the sensor capability. Both use the IMX766 50MP platform with 4-in-1 pixel, PDAF and HDR support.

How should I choose between M12 and C/CS lenses?

The choice depends on the device structure and optical requirement. M12 is commonly used for compact camera assemblies, while C/CS provides another lens integration direction for applications requiring different optical configurations.

Is 50MP suitable for every inspection application?

Not necessarily. The sensor resolution should match the target size, lens resolving capability, lighting and processing system. A high-resolution sensor cannot compensate for an unsuitable optical design.

Evaluate This Module for Your Device

Share your working distance, target size, required FOV, preferred lens interface, USB host environment and mechanical installation limitations. SincereFirst can evaluate the suitable Fixed Focus optical configuration before sampling.
