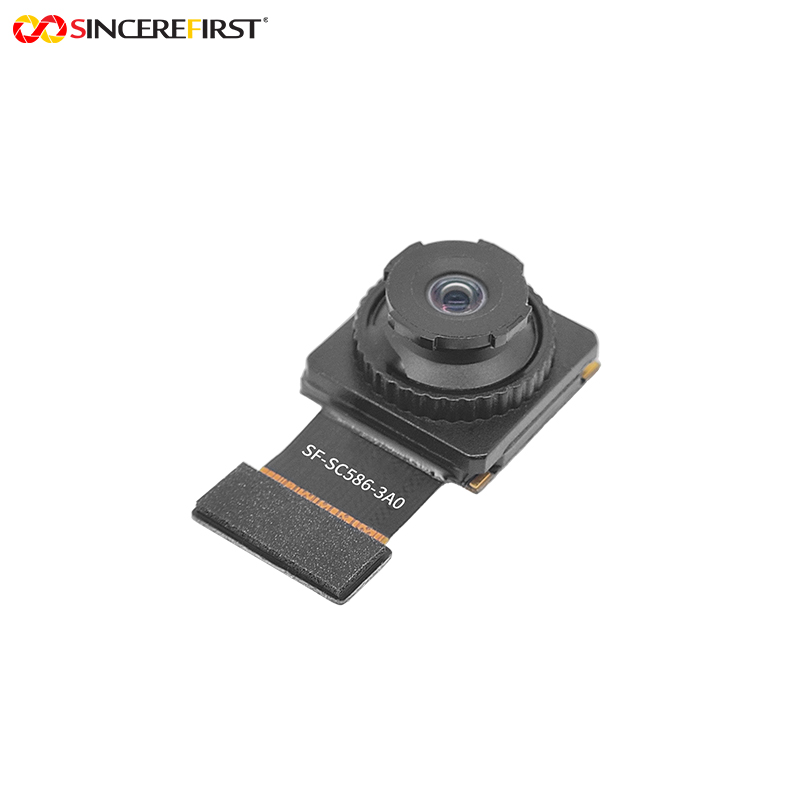

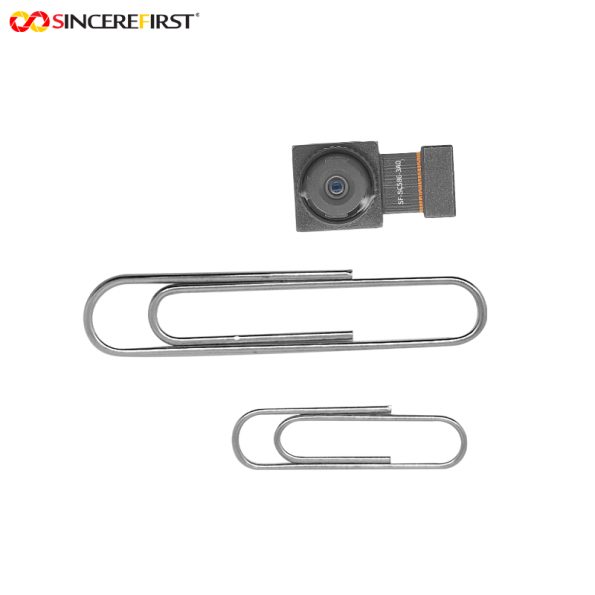

48MP Wide-Angle MIPI Camera Module for Large Scene Capture

Name: 48MP Wide-Angle MIPI Camera Module for Large Scene Capture
SKU: 15603
Price: 1.00 USD
Availability: InStock

$1.00

48MP MIPI camera module with Sony IMX586 sensor, Fixed Focus wide-angle lens, 4-in-1 pixel, PDAF, HDR, D120° × H96° × V73.8° FOV and 30Pin BTB interface.

—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.

... people are viewing this right now

Description Send Inquiry

Introduction

Some devices need to observe a larger area from a limited installation position, but a standard-angle camera may capture only part of the required scene.

This camera module uses a wide-angle optical design to increase scene coverage from a single camera position, providing a practical solution for applications where environmental information and wider viewing range are important.

The module combines a 48MP sensor platform with a Fixed Focus wide-angle lens, providing high-resolution image capture together with D120° wide-angle coverage.

It is designed for devices where the camera needs to capture more surrounding information rather than focus only on a small target area.

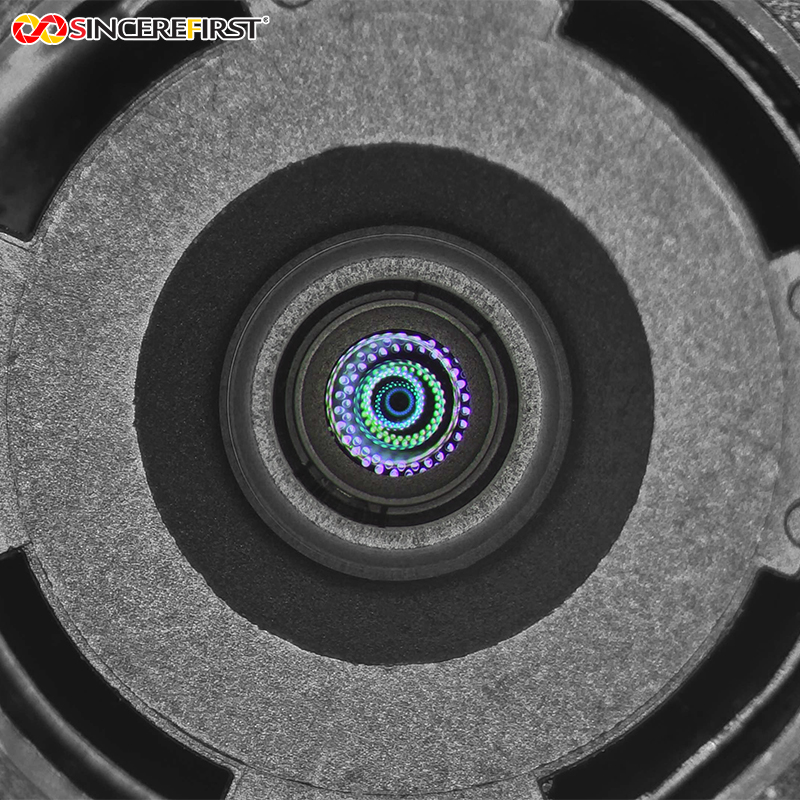

The optical configuration uses a ZK6206 6P lens with 3.574mm EFL and D120° × H96° × V73.8° field of view.

Applications in Real Devices

Robotics and Mobile Devices

Robotic and mobile equipment often have limited space for camera installation while requiring more environmental information.

A wider viewing range can help capture more surrounding areas from a single camera position, supporting tasks where scene awareness is important.

Smart Monitoring Equipment

Monitoring devices installed in fixed positions may need to cover a larger area without adding multiple cameras.

A wide-angle configuration can help expand the visible area while maintaining a high-resolution image source.

Compact Observation Systems

Some compact devices cannot place the camera far enough from the target to achieve the desired viewing range.

A wide-angle lens provides another approach by increasing captured scene coverage within limited mechanical space.

Interactive Smart Devices

Devices that need to understand their surroundings may benefit from a broader image perspective.

The wide-angle configuration provides more contextual information for system-level image processing.

Project Evaluation Guide

Consider This Model When

The device needs a wider viewing range from one camera position.

The installation space limits camera placement.
The camera-to-target distance is relatively stable.
Fixed Focus is acceptable for the application.
High-resolution image capture is required.
A 30Pin BTB MIPI interface matches the host platform.

Confirm Before Sampling

Required scene coverage and target size.
Working distance.
Whether wide-angle distortion is acceptable.
Host processor MIPI and ISP support.
Mechanical space and connector compatibility.
Whether the target occupies enough pixels within the wider image.

Choosing This Model Within the 8K Camera Module Series

This model represents the 48MP wide-angle Fixed Focus MIPI direction within the 8K Camera Module Series.

Choose this direction when the main challenge is insufficient scene coverage from the current camera position.

Compared with telephoto modules, this configuration focuses on capturing more surrounding information rather than enlarging distant targets.

Compared with Autofocus modules, this Fixed Focus direction is suitable for applications with a relatively stable working distance.

Related Models

IMX586 48MP Telephoto MIPI Camera Module – SF-SC586-AERORA03 V1.0

Consider this model when the project needs to capture distant targets within a narrower field of view.

IMX586 48MP Autofocus MIPI Camera Module – SF-OC586-POWER-B V1.1

Consider this model when target distance changes and automatic focusing capability is required.

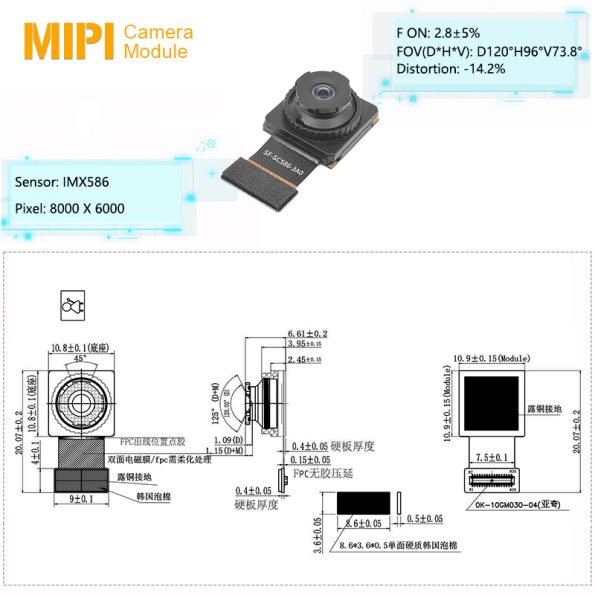

Key Specifications

Specification	Details
Product Name	48MP Wide-Angle Camera Module
Model	SF-SC586-3A0
Sensor	Sony IMX586 CMOS
Resolution	48MP / 8000 × 6000
Sensor Size	1/2 inch
Pixel Size	0.8μm × 0.8μm
Pixel Technology	4-in-1 Pixel
PDAF	Supported
HDR	Supported
Focus Type	Fixed Focus
Lens Type	Wide-Angle Lens
Lens Model	ZK6206
Lens Structure	6P
EFL	3.574mm
Aperture	F2.8 ±5%
Field of View	D120° × H96° × V73.8°
TV Distortion	-14.2%
Interface	MIPI

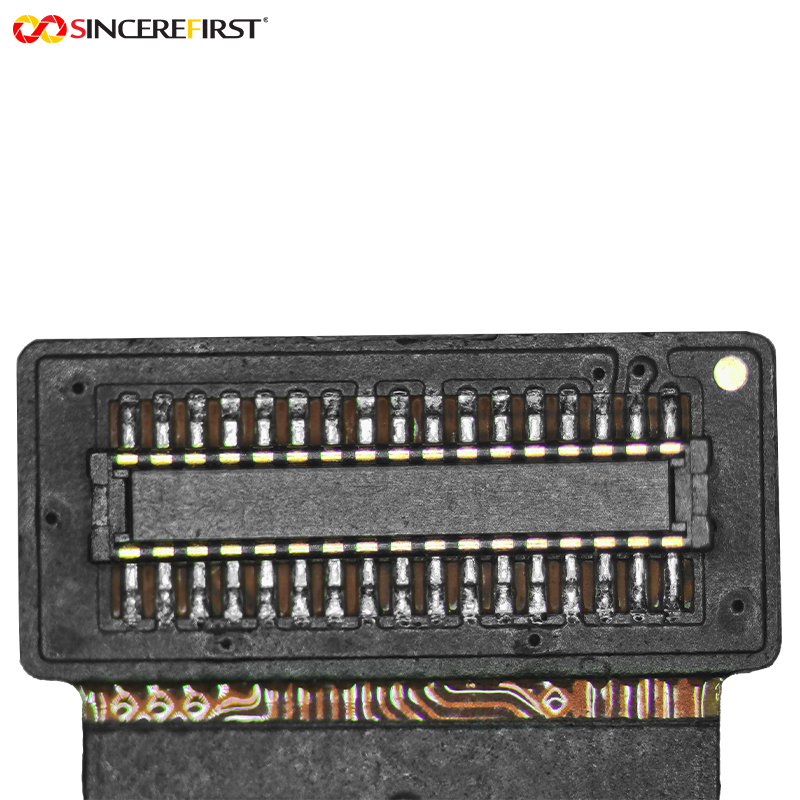

Connector	30Pin BTB

SincereFirst Customization

Lens and Optical Configuration

Lens parameters and optical design can be evaluated according to required coverage area, working distance and image characteristics.

Focus Configuration

Fixed Focus configuration can be evaluated according to the device operating distance and application requirements.

Mechanical and MIPI Integration

FPC layout, connector structure and MIPI interface requirements can be evaluated according to the host platform and product design.

Image Processing Requirements

Wide-angle image correction, ISP capability and image-processing workflow can be evaluated according to the final system architecture.

Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.

FAQ

When should I choose a wide-angle camera instead of a standard-angle camera?

Choose a wide-angle configuration when the device needs to capture more surrounding information from a limited camera position.

A standard-angle lens may be more suitable when the priority is maximizing the target size within the image.

Does a wider field of view always provide better image results?

No.

A wider FOV captures more scene information, but each object occupies fewer pixels. The correct choice depends on whether the application prioritizes coverage area or target detail.

Is Fixed Focus suitable for all wide-angle applications?

No.

Fixed Focus works best when the camera-to-target distance remains within a controlled range. Applications with large distance changes may require Autofocus.

Why does a wide-angle lens have more distortion?

A wider viewing angle usually requires stronger optical correction, which can introduce more distortion.

Whether this affects the application depends on whether the system requires observation, recognition or measurement.

Can this module directly replace another 30Pin MIPI camera?

No.

The connector type alone does not confirm compatibility. Sensor driver, pin definition, MIPI configuration, ISP support and mechanical design must all be verified.

What information should be provided before selecting this module?

The key information includes:

Camera installation position;
Required viewing area;
Target distance;
Acceptable distortion;
Host processor and MIPI requirements.

Request Project Evaluation

If your device needs a wider viewing area from a limited camera position, share the installation distance, required coverage range, target size, host platform and MIPI requirements.

SincereFirst can help evaluate whether this wide-angle MIPI configuration matches your imaging requirement before sampling.
