48MP Autofocus MIPI Camera Module for Flexible Embedded Imaging

Name: 48MP Autofocus MIPI Camera Module for Flexible Embedded Imaging
SKU: 15618
Price: 1.00 USD
Availability: InStock

$1.00

48MP MIPI camera module with Sony IMX586 sensor, VCM Autofocus, PDAF, HDR, D82° FOV, DPHY MIPI, 30Pin BTB interface and Fixed Focus option.

—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.

... people are viewing this right now

Description Send Inquiry

Introduction

Many embedded devices need a camera that can maintain image quality when the target distance changes during operation.

A Fixed Focus camera can work well in controlled environments, but devices interacting with different objects or distances may require additional focusing flexibility.

This camera module combines a 48MP sensor platform with VCM Autofocus and PDAF support, providing an imaging direction for products where focus adjustment is part of the system requirement.

Based on the Sony IMX586 sensor, it supports 8000×6000 resolution, 4-in-1 pixel technology and HDR. The module uses a D82° optical configuration with a 30Pin BTB DPHY MIPI interface, providing a direct integration option for embedded platforms.

A Fixed Focus version can also be considered for applications where the camera-to-target distance remains stable and autofocus is not required.

Applications in Real Devices

Interactive Smart Devices

Devices that capture people, objects or scenes at different distances may require automatic focus adjustment during operation.

Autofocus helps maintain image clarity when the target position changes.

Portable Imaging Equipment

Portable devices are often used in different environments where the camera distance to the target cannot always be controlled.

An Autofocus configuration provides more flexibility than a fixed optical setup.

Industrial Monitoring and Inspection Devices

Inspection systems may observe different components or positions during operation.

Autofocus can support applications where the inspection distance changes within the working range.

Embedded Vision Products with Dynamic Scenes

Some embedded devices need to capture both near and relatively distant objects within the same product.

The Autofocus function provides an additional adjustment capability for these scenarios.

Project Evaluation Guide

Consider This Model When

The target distance changes during operation.
Autofocus capability is required.
High-resolution image capture is needed.
PDAF and HDR functions are valuable.
A standard viewing angle is preferred.
The host platform supports DPHY MIPI integration.

Confirm Before Sampling

Required Autofocus range.
Typical working distance.
Host processor sensor support.
ISP and image tuning capability.
30Pin BTB interface compatibility.
Whether Fixed Focus is sufficient for the application.

Choosing This Model Within the 8K Camera Module Series

This model represents the 48MP IMX586 Autofocus MIPI direction within the 8K Camera Module Series.

Choose this direction when the project requires focus adjustment because the target distance changes during operation.

This model provides a general Autofocus direction for applications where focus flexibility is the main requirement.

Related Models

IMX586 48MP OIS Autofocus MIPI – SF4X586OISBY

Consider this model when the camera experiences movement or vibration and image stability is a key requirement.

IMX586 48MP Wide-Angle Fixed Focus MIPI – SF-SC586-3A0

Consider this model when the priority is wider scene coverage rather than autofocus adjustment.

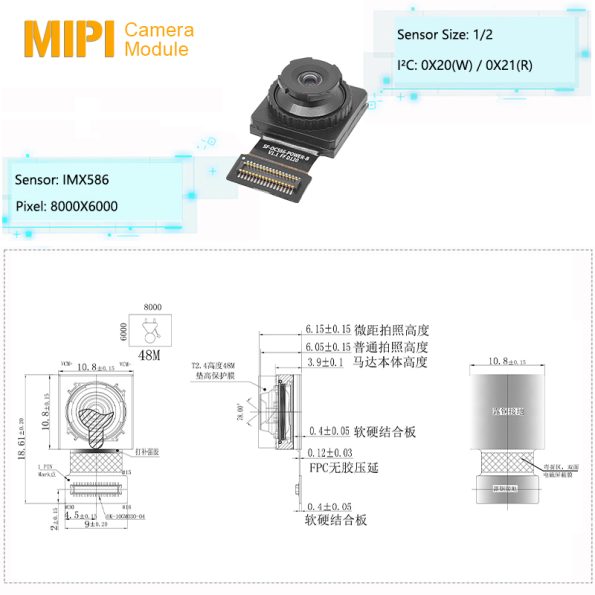

Key Specifications

Specification	Details
Product Name	48MP Autofocus MIPI Camera Module

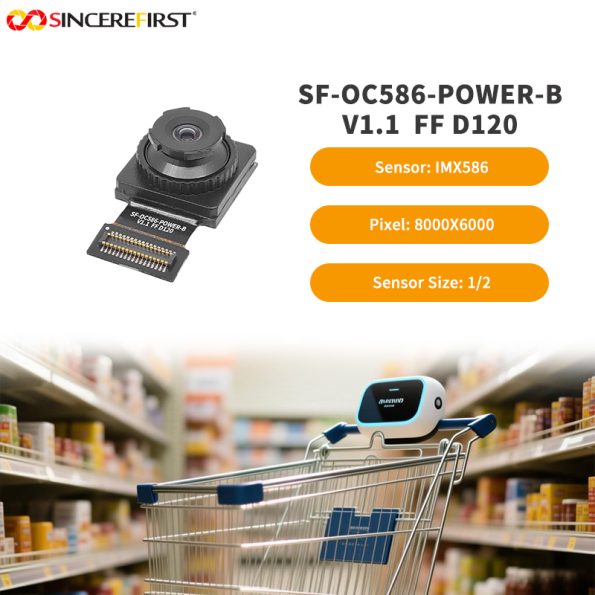

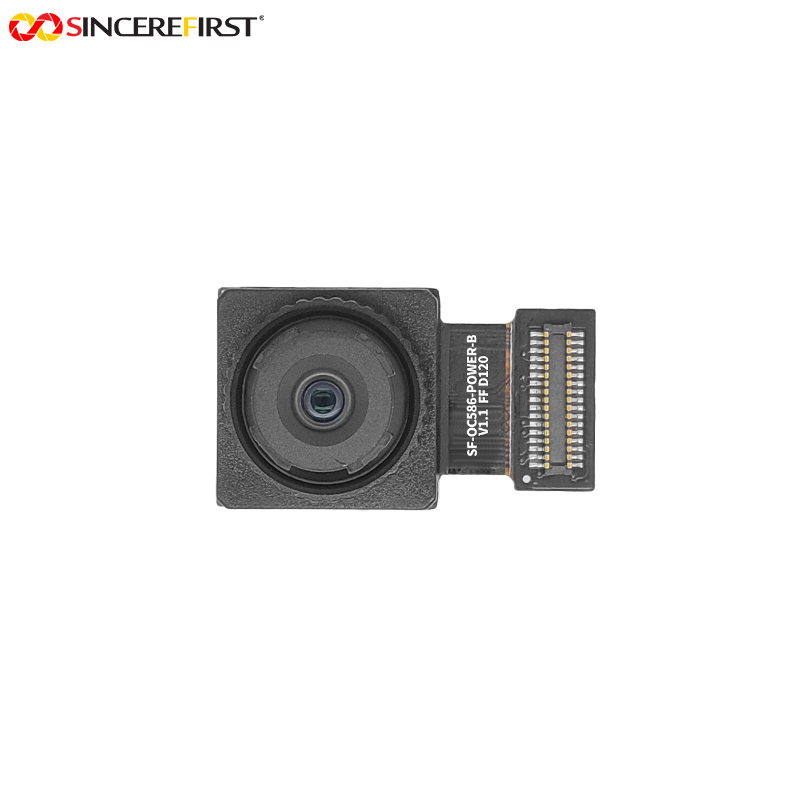

Model	SF-OC586-POWER-B V1.1
Sensor	Sony IMX586 CMOS
Resolution	48MP / 8000 × 6000
Sensor Size	1/2 inch
Pixel Size	0.8μm × 0.8μm
Pixel Technology	4-in-1 Pixel
PDAF	Supported
HDR	Supported
Focus Type	VCM Autofocus

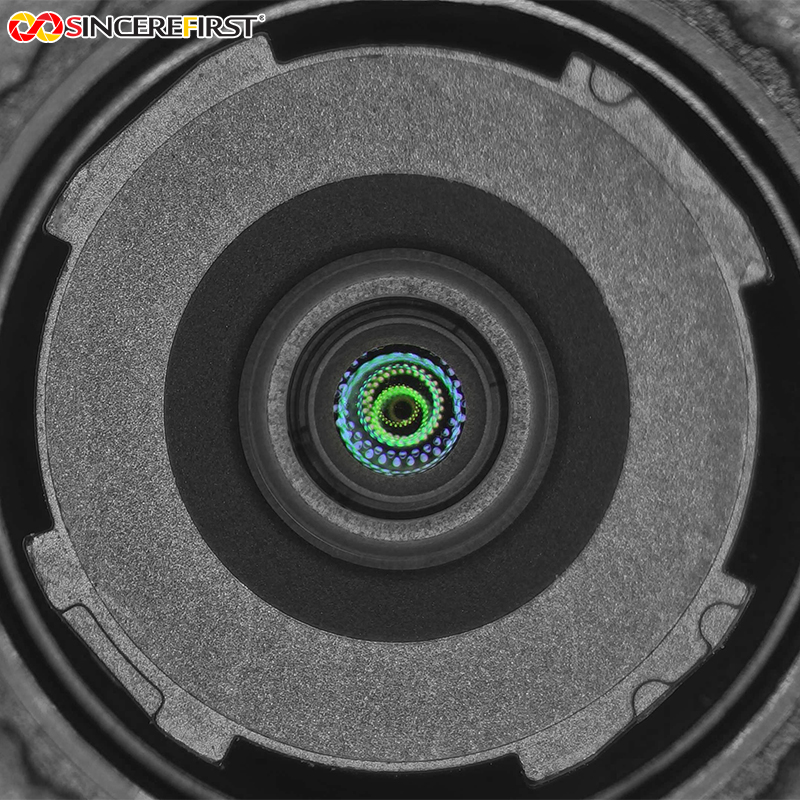

Field of View	D82°
Interface	DPHY MIPI

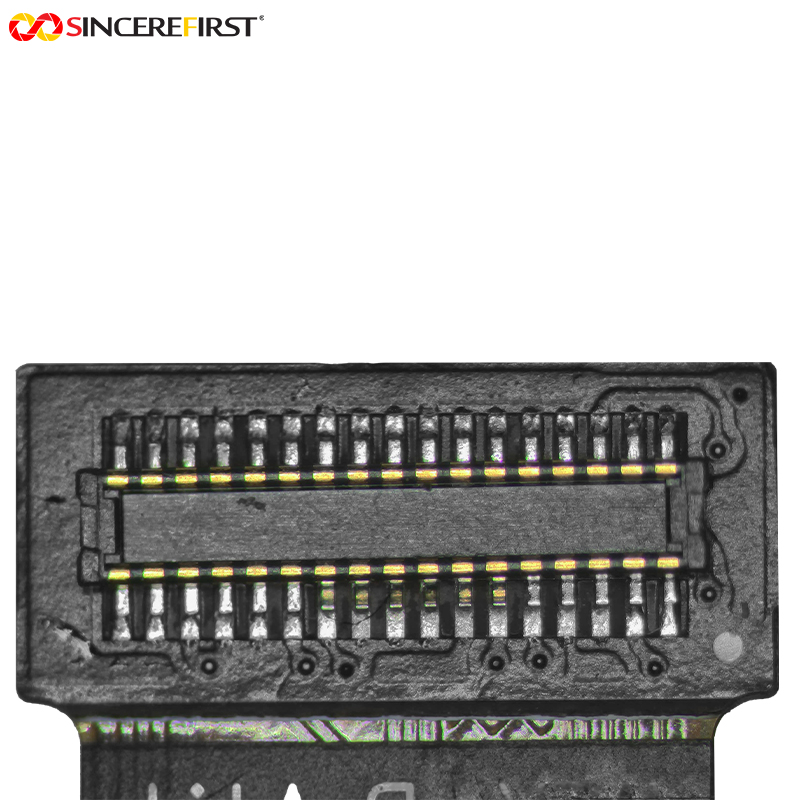

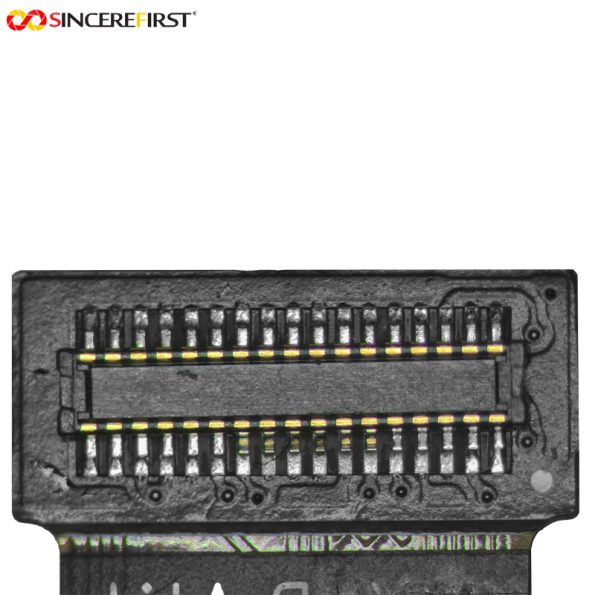

Connector	30Pin BTB
Focus Option	Fixed Focus Version Available

SincereFirst Customization

Focus Configuration

Autofocus or Fixed Focus configurations can be evaluated according to working distance, target movement and device operating conditions.

Lens and Optical Configuration

Lens parameters and optical performance can be evaluated according to FOV, target size and image requirements.

FPC and MIPI Integration

FPC layout, BTB connector structure and DPHY MIPI requirements can be evaluated according to the host platform and mechanical design.

ISP and Image Processing

Sensor output requirements, image tuning and ISP compatibility can be evaluated according to the embedded processor and final application.

Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.

FAQ

When should I choose Autofocus instead of Fixed Focus?

Choose Autofocus when the target distance changes during operation.

Fixed Focus is usually suitable when the camera and target distance remain within a controlled range.

Does Autofocus improve image quality in every application?

Not necessarily.

Autofocus mainly improves focus flexibility. Final image quality still depends on sensor, lens, lighting, ISP and system design.

Why choose this IMX586 module instead of a wide-angle version?

The selection depends on the imaging task.

A wide-angle module captures more surrounding information, while this Autofocus configuration focuses on maintaining image clarity when distance changes.

Can the Fixed Focus version replace the Autofocus version directly?

Not always.

The optical structure, control requirements and application conditions should be evaluated before selecting the appropriate configuration.

Does 30Pin BTB mean it is compatible with another 30Pin camera?

No.

Pin definition, sensor driver, MIPI configuration, power requirements and ISP support must all match the host platform.

What information is needed before selecting this module?

Important information includes:

Working-distance range;
Autofocus requirement;
Host processor;
MIPI configuration;
Mechanical limitations.

Request Project Evaluation

If your device needs flexible focusing across different target distances, share the working-distance range, host processor, MIPI requirements and mechanical conditions.

SincereFirst can help evaluate whether this Autofocus MIPI configuration matches your imaging system before sampling.

Evaluate This Module for Your Device

Share your host processor, DPHY MIPI requirements, 24Pin connector conditions, ISP capability, working distance, required FOV and mechanical limitations. SincereFirst can evaluate whether the OV64B40 24Pin Autofocus configuration matches the device before sampling.
