50MP RAW MIPI Autofocus Camera Module for Compact High-Resolution Imaging

Name: 50MP RAW MIPI Autofocus Camera Module for Compact High-Resolution Imaging
SKU: 15646
Price: 1.00 USD
Availability: InStock

$1.00

50MP MIPI camera module with Samsung ISOCELL S5KJN1SQ03 sensor, VCM Autofocus, 4-in-1 pixel, PDAF, HDR, 10bit RAW output, D76.4° FOV and 30Pin BTB interface.

—————————————————————————————–
Price is for reference only. Please contact us for the latest quotation.

... people are viewing this right now

Description Send Inquiry

Introduction

Some embedded devices require higher image detail while maintaining a compact camera architecture.

For these applications, the challenge is not only increasing resolution, but also balancing sensor capability, autofocus flexibility, image processing requirements and hardware integration.

This camera module uses a 50MP sensor platform with PDAF, HDR and 10bit RAW output, providing a direction for devices that need detailed image capture together with control over their own image-processing pipeline.

The module integrates VCM Autofocus and a 30Pin BTB MIPI interface, making it suitable for embedded systems where focus flexibility and direct processor integration are important.

Applications in Real Devices

Compact Smart Imaging Devices

Compact devices often require detailed image capture while maintaining limited internal space.

A 50MP sensor platform with Autofocus provides an imaging direction for products where both image detail and focus flexibility are required.

AI-Based Recognition Equipment

Recognition systems may require sufficient image information before algorithm processing.

RAW output provides more flexibility for platforms that need customized ISP processing and image optimization.

Portable Inspection Equipment

Portable inspection devices may observe objects at different distances during operation.

Autofocus helps maintain image clarity when the target position changes.

Embedded Camera Products

Devices with dedicated image-processing pipelines can benefit from direct MIPI integration rather than a standardized USB camera architecture.

Project Evaluation Guide

Consider This Model When

A 50MP image source is required.
RAW output is needed for customized image processing.
Autofocus capability is required.

PDAF and HDR functions are valuable.
A compact MIPI camera architecture is preferred.
The host platform supports 30Pin BTB MIPI integration.

Confirm Before Sampling

Host processor sensor support.
RAW10 processing capability.
ISP compatibility and image tuning requirements.
Required Autofocus range.
Working distance and target size.
30Pin connector definition and mechanical compatibility.

Choosing This Model Within the 8K Camera Module Series

This model represents the 50MP RAW MIPI Autofocus direction within the 8K Camera Module Series.

Choose this direction when the project requires a higher-resolution embedded camera with RAW processing capability and Autofocus flexibility.

Compared with 48MP IMX586 modules, this model provides a 50MP sensor direction with a different sensor platform.

Compared with larger-resolution 64MP or 108MP modules, it provides a more moderate data-processing requirement for systems that need high resolution without moving to the highest pixel count.

Related Models

IMX586 48MP Autofocus MIPI Camera Module – SF-OC586-POWER-B V1.1

Consider this model when the project requires a Sony IMX586 platform with Autofocus and a 48MP resolution direction.

IMX686 64MP Autofocus C-PHY MIPI Camera Module – SF-SC686-P60-B V1.0

Consider this model when the project requires higher resolution and a 64MP sensor platform.

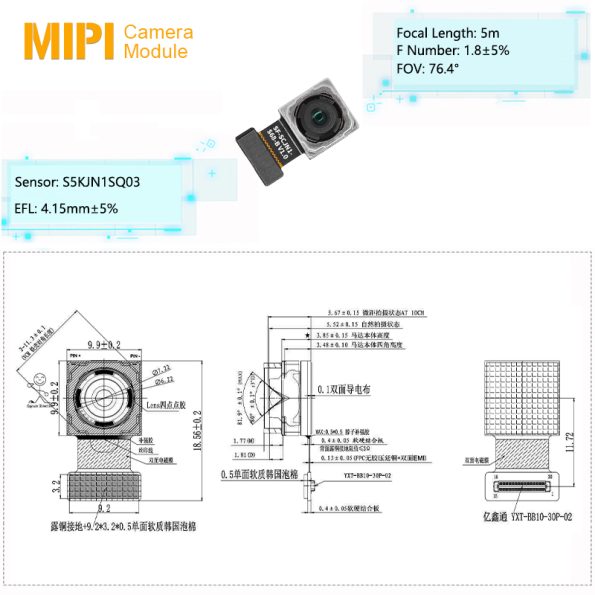

Key Specifications

Specification	Details
Product Name	50MP RAW MIPI Camera Module
Model	SF-SCJN1-S68-B V1.0
Sensor	Samsung ISOCELL S5KJN1SQ03 CMOS
Resolution	50MP / 8192 × 6176
Sensor Size	1/2.76 inch
Pixel Size	0.64μm × 0.64μm
Pixel Technology	4-in-1 Pixel
PDAF	Supported
HDR	Supported
Output Format	10bit RAW
Focus Type	VCM Autofocus
Field of View	D76.4°
TV Distortion	<1.5%
Interface	MIPI

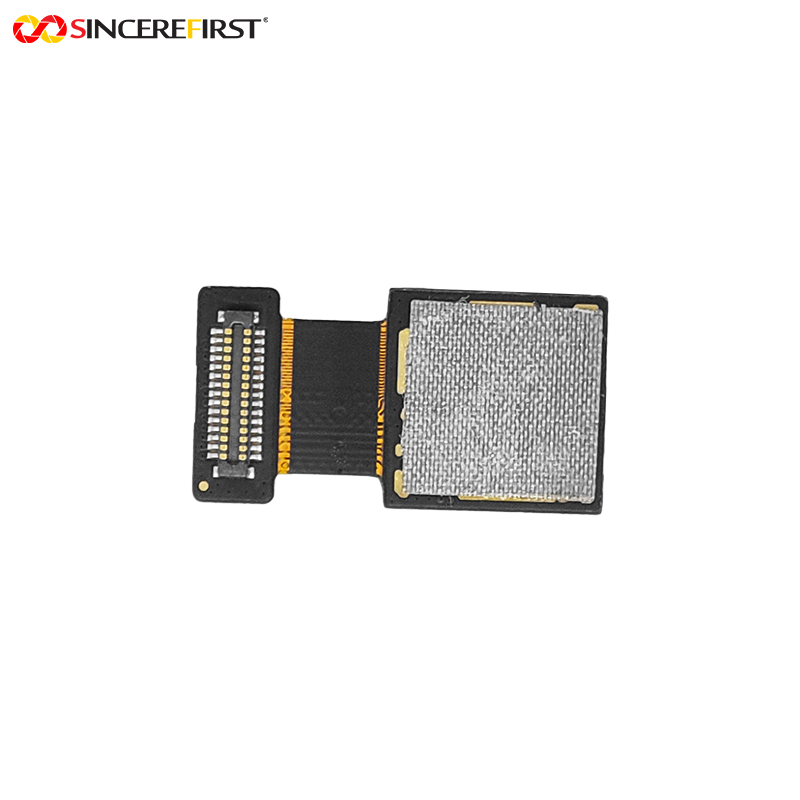

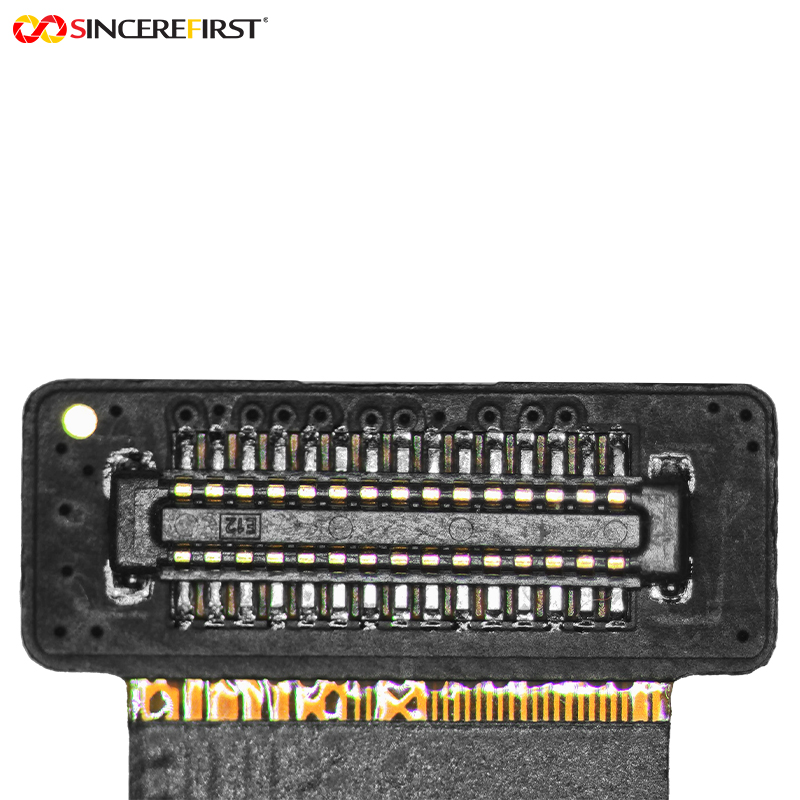

Connector	30Pin BTB

SincereFirst Customization

Lens and Optical Configuration

Lens parameters, field of view and optical performance can be evaluated according to working distance, target size and image requirements.

Autofocus Configuration

Autofocus behavior can be evaluated according to target distance variation, capture conditions and host-side control requirements.

FPC and MIPI Integration

BTB connector structure, FPC layout and MIPI requirements can be evaluated according to the host platform and mechanical design.

RAW Processing and ISP Integration

RAW output workflow, ISP capability and image tuning requirements can be evaluated according to the final embedded system.

Final configuration should be validated with the actual host platform, enclosure, optics, software, and lighting environment before sampling.

FAQ

Why choose a 50MP module instead of a 48MP camera module?

The selection depends on the complete imaging requirement.

A 50MP platform provides a different resolution and sensor direction, but the final image performance also depends on lens quality, ISP capability and application conditions.

What is the value of RAW output in an embedded camera system?

RAW output gives the host platform more control over image processing.

It is useful when the device manufacturer needs to manage its own ISP pipeline, tuning process or image algorithms.

When is Autofocus necessary for a 50MP camera module?

Autofocus is useful when the target distance changes during operation.

For fixed-distance applications, a Fixed Focus configuration may be sufficient.

Does higher resolution always improve recognition performance?

Not always.

Recognition performance depends on the complete system, including target size, lighting, lens resolution, image processing and algorithm requirements.

Can this module directly replace another 30Pin MIPI camera?

No.

Connector size alone does not confirm compatibility. Sensor driver, pin definition, MIPI configuration, power requirements and ISP support must all be checked.

What information should be provided before selecting this module?

The key information includes:

Host processor;
MIPI requirements;
Required resolution;
Working distance;
Autofocus requirement;
Image-processing workflow.

Request Project Evaluation

If your device requires 50MP image capture with RAW processing and Autofocus capability, share the host processor, MIPI requirements, working-distance range and image-processing needs.

SincereFirst can help evaluate whether this 50MP MIPI configuration matches your system design before sampling.
